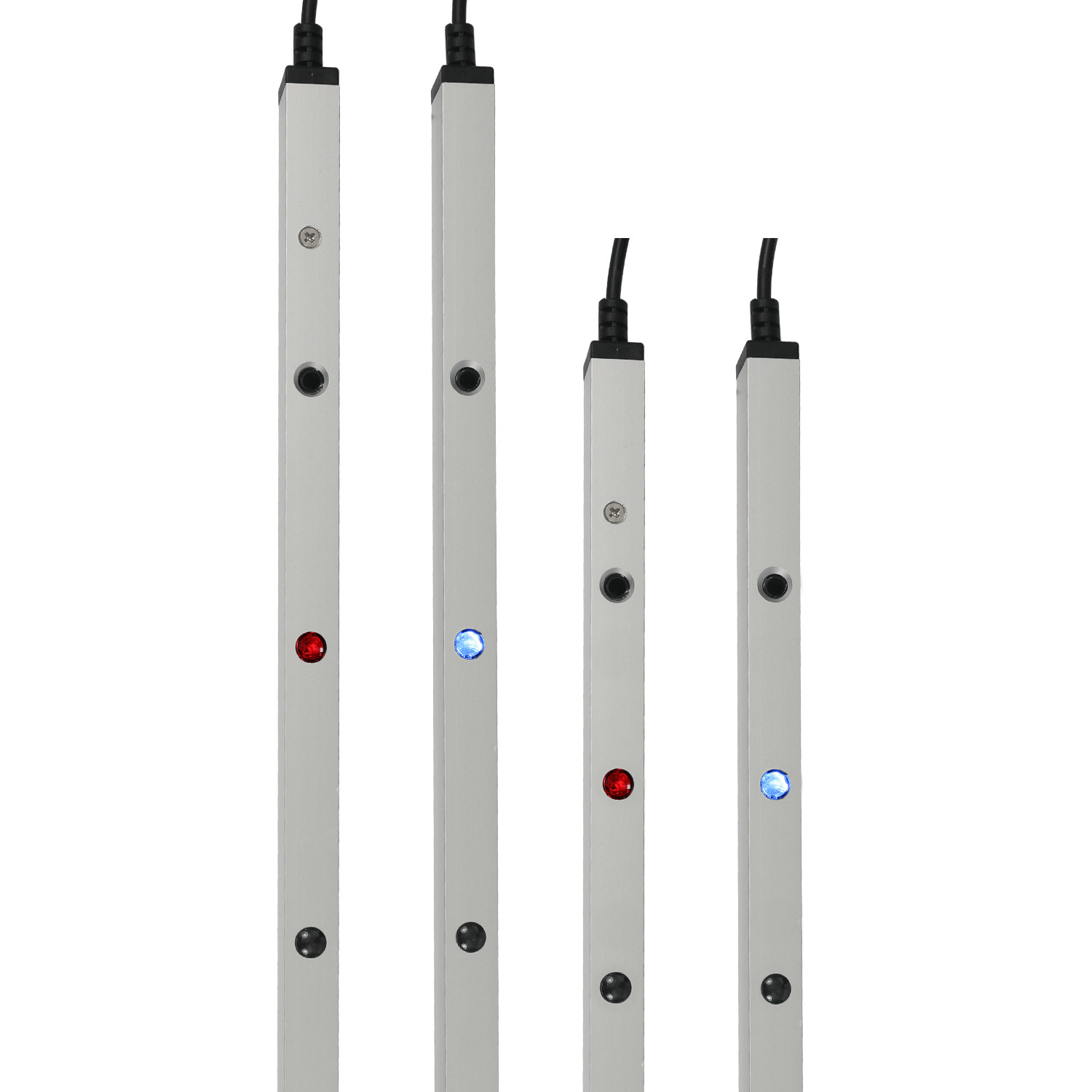

Full Gluing IP67 Safety Infrared Light Curtain Anti Light Lens 8 Meter Detection

Overview

The Blanking Light Curtain from Shenzhen Jutai Comm Co., Ltd. represents a sophisticated safety mechanism designed to bolster the security and operational efficiency of industrial doors. Featuring a durable active infrared sensor with remarkable light resistance, this device ensures consistent performance even under challenging lighting conditions. With a detection range extending up to 8 meters and a swift response time, it offers essential safety monitoring across various industrial applications, making it an indispensable investment for workplace safety.

Key Takeaway

A blanking light curtain is a specialized safety apparatus that allows certain sections of its detection field to be deactivated, or "blanked," without affecting the entire curtain. This capability is critical in environments where machinery or parts of the production process regularly interrupt the light curtain’s field. By selectively blanking these areas, the light curtain continues to provide protection by detecting unexpected interruptions in non-blanked sections, ensuring safety without unnecessary stoppages or false alarms. This feature is particularly beneficial in complex automated environments where flexibility and safety are essential.

Technical Features and Benefits

Seamless System Integration: Designed for easy integration with various door control systems, ensuring wide compatibility and smooth operation.

Adaptable Installation: Engineered for direct incorporation into door edges, providing flexibility to fit diverse door configurations and installation scenarios.

Compact and Efficient Design: The CL15-8L8 model is a compact light curtain specifically crafted for automatic doors and gates, offering reliable safety measures within a minimal footprint.

Broad Application Scope: Ideal for high-speed doors, sectional doors, rolling doors, vertical closing telescopic doors, and freight elevators, demonstrating versatility in various industrial settings.

Precise Detection Capabilities: Utilizes through-beam technology to accurately detect the presence of individuals or objects, preventing accidents and ensuring prompt door operation signals.

Flexible Output Options: Offers multiple output methods (NO/NC and COM), enhancing flexibility for integration with various door control systems.

Energy Efficiency: Features low current consumption of less than 20mA at DC12V and operates within a working voltage range of DC12-24V, ensuring energy-efficient performance.

Simplified Wiring: Eliminates the need for a synchronization wire between the emitter and receiver, streamlining on-site wiring and reducing material costs. The synchronization signal is embedded in the infrared beam, ensuring synchronization through circuit board logic.

Technical Specifications

Installation Guidelines

Remove Covers and Connect Wires:

1. Detach the top and bottom covers of the sensor.
2. Establish wire connections and route the thread end through the designated threaded port.

Position and Mark Holes:

1. Align the transmitter and receiver in parallel to confirm the installation position.
2. Mark the hole positions accurately on the wall.

Drill and Fix:

1. Use a percussion drill to create holes at the marked locations.
2. Insert wall plugs into the drilled holes and secure them with screws.

Mount Transmitter and Receiver:

1. Attach the transmitter and receiver to the wall using M3*25 screws.
2. Connect the power supply and test the sensor alignment.
3. Adjust the angle by rotating the aluminum tube if necessary.
4. Tighten the rotating screw securely once aligned.

Replace Covers and Final Testing:

1. Reattach the sensor’s top and bottom covers with M2*8 screws.
2. Conduct a final test to ensure proper sensor functionality.

Enhance Workplace Safety

Enhance the security and safety of your industrial operations with the Door Sensor Photocell Light Curtain. This advanced sensor provides robust security features, including an 8-meter detection range, flexible installation options, and precise detection capabilities. Its seamless integration with various door control systems and wide application range make it a reliable choice for enhancing safety in industrial environments. Trust in the quality and performance of the CL15-8L8 light curtain to deliver optimal security and peace of mind.
