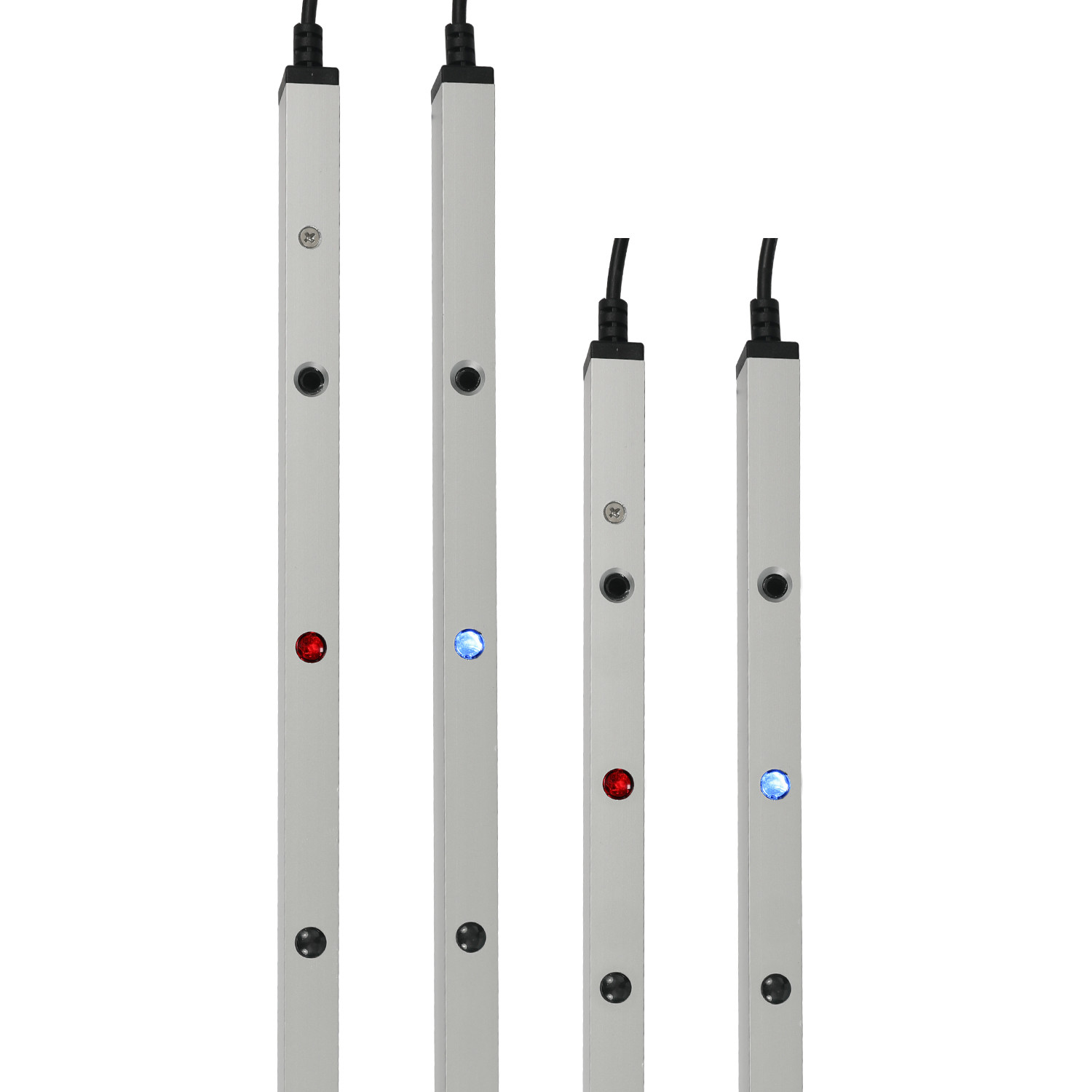

IP67 Aluminum Alloy Safety Light Curtain with 8 Meter Detection and Blanking Function
Product Details
| Material | Aluminum Alloy | Feature | Corrosion Resistant |
|---|---|---|---|
| IP Rating | IP67 | Supply Voltage | DC12-24V |
| Sensing Distance | 8m | Operating Temperature | -20~60℃ |
| Operating Current | <50mA | Output | No/Nc, COM |
| Working Current | <20mA@DC12V | Specification | 150*2.1*1.5cm |
| Highlight | IP67 safety infrared light curtain,Full gluing safety infrared light curtain |
||
Product Description
Full Gluing IP67 Safety Infrared Light Curtain Anti Light Lens 8 Meter Detection
Infrared Safety Light Curtain Sensor with Blanking Function for Industrial Doors
Product Overview
The Blanking Light Curtain from Shenzhen Jutai Comm Co., Ltd. represents a sophisticated safety mechanism designed to bolster the security and operational efficiency of industrial doors. Featuring a durable active infrared sensor with remarkable light resistance, this device ensures consistent performance even under challenging lighting conditions. With a detection range extending up to 8 meters and a swift response time, it offers essential safety monitoring across various industrial applications, making it an indispensable investment for workplace safety.
Key Technology
A blanking light curtain is a specialized safety apparatus that allows certain sections of its detection field to be deactivated, or "blanked," without affecting the entire curtain. This capability is critical in environments where machinery or parts of the production process regularly interrupt the light curtain's field. By selectively blanking these areas, the light curtain continues to provide protection by detecting unexpected interruptions in non-blanked sections, ensuring safety without unnecessary stoppages or false alarms.
Technical Features and Benefits
- Seamless System Integration: Designed for easy integration with various door control systems, ensuring wide compatibility and smooth operation.
- Adaptable Installation: Engineered for direct incorporation into door edges, providing flexibility to fit diverse door configurations.
- Compact and Efficient Design: The CL15-8L8 model offers reliable safety measures within a minimal footprint.
- Broad Application Scope: Ideal for high-speed doors, sectional doors, rolling doors, vertical closing telescopic doors, and freight elevators.
- Precise Detection Capabilities: Utilizes through-beam technology to accurately detect the presence of individuals or objects.
- Flexible Output Options: Offers multiple output methods (NO/NC and COM) for integration flexibility.
- Energy Efficiency: Features low current consumption of less than 20mA at DC12V.
- Simplified Wiring: Eliminates the need for synchronization wire between emitter and receiver.
Technical Specifications
| Model | CL15-8L8 |
|---|---|
| Technology | Active Infrared Sensor with Strong Light Resistance |
| Detection Range | Up to 8 meters |
| Response Time | Fast and reliable |
| Working Current | <20mA at DC12V |
| Working Voltage | DC12-24V |
| Output Methods | NO/NC and COM |
| Applications | High-speed doors, sectional doors, rolling doors, vertical closing telescopic doors, freight elevators |
| Protective Height | Max 1225mm (concealing mode), 1305mm (normal mode) |
| Operating Temperature | -20 ~ +70℃ |
| Protection Level | IP67 |
| Shell Material | Aluminum alloy |
Installation Guidelines
- Remove Covers and Connect Wires: Detach the top and bottom covers of the sensor. Establish wire connections and route the thread end through the designated threaded port.
- Position and Mark Holes: Align the transmitter and receiver in parallel to confirm the installation position. Mark the hole positions accurately on the wall.
- Drill and Fix: Use a percussion drill to create holes at the marked locations. Insert wall plugs into the drilled holes and secure them with screws.
- Mount Transmitter and Receiver: Attach the transmitter and receiver to the wall using M3*25 screws. Connect the power supply and test the sensor alignment. Adjust the angle by rotating the aluminum tube if necessary. Tighten the rotating screw securely once aligned.
- Replace Covers and Final Testing: Reattach the sensor's top and bottom covers with M2*8 screws. Conduct a final test to ensure proper sensor functionality.
Safety Enhancement
Enhance the security and safety of your industrial operations with the Door Sensor Photocell Light Curtain. This advanced sensor provides robust security features, including an 8-meter detection range, flexible installation options, and precise detection capabilities. Its seamless integration with various door control systems and wide application range make it a reliable choice for enhancing safety in industrial environments.
Manufacturer Profile
Shenzhen Jutai Comm Co., Ltd. is a distinguished manufacturer specializing in Motion Sensor Photoelectric Sensors. Known for our comprehensive integration of research, development, production, sales, and distribution, we are dedicated to delivering exceptional solutions to our valued customers. Our foundation is built on innovation and a steadfast commitment to quality. As we continue to grow our brand, we aspire to become your trusted production partner in your journey to build and promote your own brand.
Enhance industrial door safety with the 1500mm Infrared Light Curtain sensor from Shenzhen Jutai Comm Co., Ltd. This sensor can detect up to 8m with fast speed, ensuring a secure environment in industrial settings. Invest in safety today!
