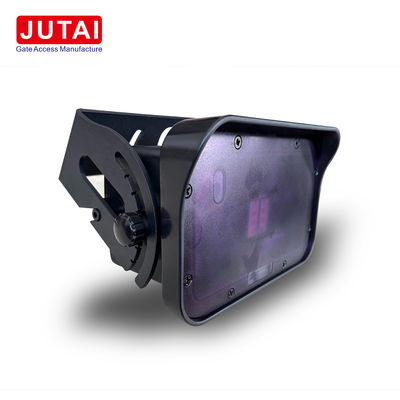

IP65 Protected 24.125GHz Microwave Motion Radar Sensor with Dual Relay Output for Industrial Doors

Place of Origin	China
Brand Name	JUTAI
Certification	FDA, E-MARK, CE, ISO, FCC, RoHS, DOT, ASTM, AS/NZS, CCC, GS
Model Number	RVP42-9ME
Minimum Order Quantity	1
Price	Negotiation
Packaging Details	Cartoon
Delivery Time	5-8 days
Payment Terms	T/T,L/C,D/A,D/P,Western Union,Paypal,MoneyGram,Alipay
Supply Ability	1000 pieces per month

Product Details

Output	2 Relays Output. Max.48 VAC/DC. Max.Current 1A	Power Supply	12-28VAC, 12-36VDC
Frequency	24.125GHz	Detection Height	2m To 9m
HS Code	9031809090	Package Size	28.00cm * 13.00cm * 10.00cm
Highlight	Microwave Doppler Motion Radar Sensor , IP65 Microwave Doppler Motion Radar Sensor

Leave a Message

Product Description

Rolling Shutter Doors Microwave Doppler Motion Radar Sensor IP65 Forklift Detection

RP42-9ME Microwave Motion Radar Sensor for Industrial Doors

The RP42-9ME/RVP42-9MG is a high-performance radar motion detector specifically engineered for vehicle and human detection in demanding industrial environments. This advanced sensor is ideal for applications including industrial doors, garage doors, cold storage doors, road gates, and related industrial settings.

Equipped with dual relays for separate vehicle and pedestrian detection, the sensor activates corresponding relay outputs based on motion type. The system also features sophisticated recognition and filtering capabilities for horizontally moving vehicles or pedestrians.

Key Features

Precision Detection Technology

Advanced Microwave Radar: Delivers accurate detection of vehicles and pedestrians in industrial settings
Industrial Applications: Perfect for garage doors, cold storage facilities, road gates, and more

Dual Relay System

Vehicle and Pedestrian Detection: Dual relays trigger corresponding outputs based on motion type
Customizable Modes: Options for exclusive vehicle-detection mode or combined operation

Adjustable Detection Zones

Versatile Installation: Narrow and wide settings to suit various installation requirements
Sensitivity Adjustment: Fine-tune detection area sensitivity for optimal performance

Direction Recognition

Configurable Sensing Directions: Choose from forward, reverse, or bidirectional sensing
Accurate Motion Detection: Reliable detection of both approaching and departing traffic

Energy Efficiency and Automation

Selective Activation: Enhances energy efficiency by activating only for approaching traffic
Automatic Door Control: Facilitates hands-free opening and closing for seamless operation

Easy Installation and Durability

User-Friendly Design: Suitable for new installations and retrofitting existing doors
Durable Construction: IP65 protection rating ensures reliability in harsh industrial environments

Customizable Sensing Area

Tailored Function Activation: Adjust detection height, speed, and area to meet specific needs
Enhanced Versatility: Fine-tune sensor parameters for optimal performance across various settings

Technical Specifications

Feature	Details
Application Technology	Employs Doppler radar technology to ensure precise and accurate detection
Transmission Frequency	Functions at 24.125GHz for efficient signal transmission
Transmission Power	Maintains power below 20dBm to adhere to safety and regulatory standards
Detection Height	Adjustable from 2.0m to 9.0m to accommodate various installation needs
Angle Adjustment	Longitudinal angle adjustment from 0° to 90° for optimal coverage
Detection Speed	Detects motion from 5cm/s to 25km/s across a broad speed range
Detection Area (30° Angle)	Covers 3.0m x 3.5m at 2m height, and 6.5m x 8.5m at 9m height
Operation Current	Consumes less than 100mA for energy-efficient operation
Power Frequency	Operates at standard 50Hz for compatibility with most electrical systems
Temperature Range	Withstands temperatures from -30°C to +60°C for reliable performance
Relative Humidity	Tolerates 0% to 95% humidity without condensation
Protection Grade	IP65 rating for resistance to dust and water ingress
Relay Output	24VDC @ 1A or 125VAC @ 0.5A for seamless door control integration
External Dimensions	Compact size: 164mm x 111mm x 94.5mm for easy installation
Cable Length	7m cable for convenient connectivity
Sensor Weight	650g for easy handling and installation
Operation Voltage	12V to 36VDC for versatility with different power sources

Elevate your industrial door automation with the RP42-9ME/RVP42-9MG Microwave Motion Radar Sensor, offering precision detection, seamless operation, and customizable features tailored to your specific requirements.
