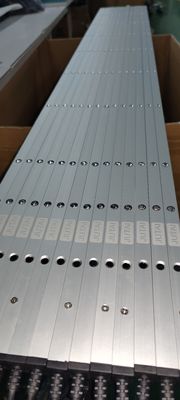

IP67 Safety Light Curtain with 8m Range and Customizable Length for Industrial Doors
Product Details
| IP Rating | IP67 | Sensing Distance | 8m |
|---|---|---|---|
| Material | Aluminum Alloy | Feature | Corrosion Resistant |
| Supply Voltage | DC12-24V | Operating Temperature | -20~60℃ |
| Operating Current | <50mA | Output | No/Nc, COM |
| Working Current | <20mA@DC12V | Specification | 150*2.1*1.5cm |
| Highlight | Rolling Shutter Door Safety Light Barrier,Safety Light Barrier 8m Range,Safety Light Barrier IP67 |
||
Product Description
Rolling Shutter Door Safety Light Barrier With IP67 8m Range Customizable Length
Infrared Safety Light Curtain Sensor with Blanking Function for industrial doors
Safety Light Curtain Sensor Overview
Safety light curtain sensors are advanced safety devices widely used in industrial settings to enhance workplace safety and operational efficiency. These sensors consist of an emitter and receiver that create an invisible barrier of infrared beams. When any beam is interrupted, the sensor detects the change and signals the control system to take necessary action, such as stopping machinery or reversing door operation.
Key Functions and Applications
- Crush Prevention for Industrial Doors: Detects obstructions during door closing to prevent injuries and damage
- Machine Guarding: Ensures personnel safety by stopping dangerous machinery when intrusion is detected
- Material Handling Systems: Monitors conveyor belts for smooth and safe material flow
Primary Benefits
- Enhanced Safety: Immediate equipment stoppage upon obstruction detection
- Increased Efficiency: Maintains productivity while ensuring safety
- Cost-Effective: Reduces manual monitoring and minimizes downtime
- Regulatory Compliance: Meets stringent industrial safety standards
CL15-8L8 Blanking Light Curtain
The Blanking Light Curtain - CL15-8L8 by Shenzhen Jutai Comm Co., Ltd. is a state-of-the-art safety device designed to boost security and efficiency of industrial doors. It features reliable active infrared sensors with excellent light interference resistance and up to 8-meter detection range.
Working Principle
The system comprises an emitter and receiver forming a light curtain. The emitter projects parallel infrared beams to the receiver. When an object interrupts these beams, the receiver detects the signal change and triggers safety protocols.
Unique Blanking Function
If beams are blocked sequentially from top to bottom, the relay is not triggered (normal door closing). However, if bottom beams are obstructed during closing, the relay signal activates, preventing accidents while maintaining operational efficiency.
Key Features
Seamless Integration: Easy integration with various door control systems
Adaptable Installation: Direct installation into door edges for diverse configurations
Customizable Length: Available in 2 meters and 2.5 meters to meet specific requirements
Compact Design: Minimal footprint for automatic doors and gates
Broad Application: Suitable for high-speed doors, sectional doors, rolling doors, and freight elevators
Energy Efficient: Low current consumption (<20mA at DC12V)
Simplified Wiring: No synchronization wire required
Technical Specifications
| Model | CL15-8L8 |
|---|---|
| Technology | Active Infrared Sensor with Strong Light Resistance |
| Detection Range | Up to 8 meters |
| Response Time | Fast and reliable |
| Working Current | <20mA at DC12V |
| Working Voltage | DC12-24V |
| Output Methods | NO/NC and COM |
| Protective Height | Max 1225mm (concealing mode), 1305mm (normal mode) |
| Operating Temperature | -20 ~ +70℃ |
| Protection Level | IP67 |
| Shell Material | Aluminum alloy |
Installation Guidelines
Step 1: Remove Covers and Connect Wires
Detach top and bottom covers, establish necessary wire connections, and route thread end through designated port.
Step 2: Position and Mark Holes
Align transmitter and receiver in parallel to determine correct installation position. Precisely mark hole positions on wall for accurate drilling.
Step 3: Drill and Fix
Use percussion drill to create holes at marked positions. Insert wall plugs and secure with screws.
Step 4: Mount Transmitter and Receiver
Attach transmitter and receiver to wall using M3*25 screws. Connect power supply and test alignment. Adjust angle by rotating aluminum tube if necessary, then tighten rotating screw securely.
Step 5: Replace Covers and Final Testing
Reattach top and bottom covers with M2*8 screws. Conduct comprehensive test to ensure proper functionality.
Enhanced Workplace Safety
The Door Sensor Photocell Light Curtain provides robust security features including 8-meter detection range, flexible installation options, and precise detection capabilities. It seamlessly integrates with various door control systems, making it a reliable choice for improving safety in industrial environments.
Company Overview
Shenzhen Jutai Comm Co., Ltd. is a prominent industry leader known for strong R&D capabilities and innovative safety solutions for industrial applications. Our dedicated team focuses on developing products that meet the highest standards of safety and efficiency, offering customizable solutions for optimal performance.
Enhance industrial door safety with the 1500mm Infrared Light Curtain sensor from Shenzhen Jutai Comm Co., Ltd. This sensor can detect up to 8m with fast speed, ensuring a secure environment in industrial settings. Invest in safety today!
