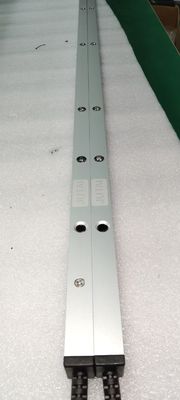

Fully Potted IP67 Waterproof 1.5m Safety Curtain Sensor 8m Range In Sunlight
Product Details
| Material | Aluminum Alloy | Feature | Corrosion Resistant |
|---|---|---|---|
| IP Rating | IP67 | Supply Voltage | DC12-24V |
| Sensing Distance | 8m | Operating Temperature | -20~60℃ |
| Operating Current | <50mA | Output | No/Nc, COM |
| Working Current | <20mA@DC12V | Specification | 150*2.1*1.5cm |
| Highlight | Fully Potted Safety Curtain sensor,IP67 Safety Curtain sensor,1.5m Safety Curtain sensor |
||
Product Description
Fully Potted IP67 Waterproof 1.5m Safety Curtain Sensor 8m Range In Sunlight
Product Overview
Infrared Safety Light Curtain Sensor with Blanking Function for industrial doors.
Product Introduction
Introducing the CL15-8L8 Safety Light Curtain Sensor, a state-of-the-art solution for enhanced safety and reliability across various door applications. Leveraging advanced active infrared technology, this sensor provides unparalleled protection with robust detection capabilities and strong light resistance, making it ideal for environments with intense lighting conditions.
Key Features
- Advanced active infrared sensor technology with strong light resistance
- 8-meter detection range for broad protective coverage
- Fast and reliable response times
- Energy-efficient operation with working current less than 20mA at DC12V
- Versatile output options including NO/NC and COM
- IP67-rated protection for dust-tight and water-resistant performance
- Robust aluminum alloy construction
- Fully potted design for environmental protection
- Innovative blanking functionality to prevent false alarms
Technical Specifications
| Model | CL15-8L8 |
|---|---|
| Technology | Active Infrared Sensor with Strong Light Resistance |
| Detection Range | Up to 8 meters |
| Working Current | <20mA at DC12V |
| Working Voltage | DC12-24V |
| Output Methods | NO/NC and COM |
| Protective Height | Max 1225mm (concealing mode), 1305mm (normal mode) |
| Operating Temperature | -20°C to +70°C |
| Protection Level | IP67 |
| Shell Material | Aluminum alloy |
Applications
High-speed doors, sectional doors, rolling doors, vertical closing telescopic doors, and freight elevators. Suitable for demanding conditions including cold storage doors with temperatures as low as -25°C.
Installation Guidelines
- Remove covers and connect wires, routing threaded end through appropriate port
- Position transmitter and receiver in parallel and mark hole positions
- Drill holes at marked spots and insert wall plugs
- Mount transmitter and receiver using M3*25 screws
- Connect power supply, verify alignment, and adjust angle as needed
- Replace covers with M2*8 screws and conduct final testing
Product Images
Enhance Workplace Safety
Enhance the security of your industrial operations with the CL15-8L8 Safety Light Curtain Sensor. This advanced sensor provides robust security features, including an 8-meter detection range, flexible installation options, and precise detection capabilities. Its seamless integration with various door control systems makes it a reliable choice for enhancing safety in industrial environments.
