Fast Door Sensor Opener RVP42-9BW For Forklift People Distinguish IP65

Place of Origin	China
Brand Name	JUTAI
Certification	FDA, E-MARK, CE, ISO, FCC, RoHS, DOT, ASTM, AS/NZS, CCC, GS
Model Number	RVP42-9ME
Minimum Order Quantity	1
Price	Negotiation
Packaging Details	Cartoon
Delivery Time	5-8 days
Payment Terms	T/T, L/C, D/A, D/P, Western Union, Paypal, , MoneyGram, Alipay
Supply Ability	1000 pieces per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Output	2 Relays Output. Max.48 VAC/DC. Max.Current 1A	Power Supply	12-28VAC, 12-36VDC
Frequency	24.125GHz	Detection Height	2m To 9m
HS Code	9031809090	Package Size	28.00cm * 13.00cm * 10.00cm
Highlight	IP65 Door Sensor Opener , RVP42-9BW Forklift Door Sensor Opener , People Distinguish Door Sensor Opener

Leave a Message

Product Description

RP42 - 9ME Microwave Motion Radar Sensor for Industrial Doors

The RP42-9ME/RVP42-9BW is a top - quality radar motion detector made specially to find both vehicles and people in industrial places. It's great for use with industrial doors, garage doors, cold storage doors, road gates, and other similar things. This sensor has two relays to give separate outputs for when it sees vehicles and people, so you can set it up the way you want.

Also, the RVP12 - 9ME/RVP42 - 9MG model can recognize and filter things that move sideways, like vehicles or people.

Precision Detection Technology:

Advanced Microwave Radar: Makes sure it can find vehicles and people in industrial places really well.
Industrial Applications: Good for garage doors, cold storage places, road gates, and more.
Dual Relay System:
Vehicle and Pedestrian Detection: The two relays start different outputs depending on what kind of movement it sees.
Customizable Modes: You can choose to only find vehicles or both vehicles and people.
Adjustable Detection Zones:
Versatile Installation: You can set it to have a narrow or wide detection area to fit your needs.
Sensitivity Adjustment: You can make the detection area more or less sensitive to work the best.
Direction Recognition:
Configurable Sensing Directions: You can choose to sense movement going forward, backward, or both ways.
Accurate Motion Detection: It can find movement coming in and going out really well.
Energy Efficiency and Automation:
Selective Activation: It only turns on when there's movement coming in, which saves energy.
Automatic Door Control: It makes the door open and close without you having to do it, so it works smoothly.
Easy Installation and Durability:
User - Friendly Design: It's easy to put in new or on an existing door.
Durable Construction: It has an IP65 protection rating, so it's reliable in tough industrial conditions.
Customizable Sensing Area:
Tailored Function Activation: You can change the detection height, speed, and area to fit your specific use.
Enhanced Versatility: You can fine - tune the sensor to work the best in different industrial places.

Feature	Details
Application Technology	Uses Doppler radar technology for precise detection.
Transmission Frequency	24.125GHz.
Transmission Power	Below 20dBm.
Detection Height	2.0m - 9.0m adjustable.
Angle Adjustment	0° - 90° longitudinal angle adjustment.
Detection Speed	5cm/s - 25km/s.
Detection Area (30° Angle)	3.0m x 3.5m at 2m height, 6.5m x 8.5m at 9m height.
Operation Current	Less than 100mA.
Power Frequency	50Hz.
Temperature Range	-30 ºC to +60 ºC.
Relative Humidity	0% - 95% without condensation.
Protection Grade	IP65.
Relay Output	24VDC @ 1A or 125VAC @ 0.5A.
External Dimensions	164mm x 111mm x 94.5mm.
Cable Length	7m.
Sensor Weight	650g.
Operation Voltage	12V - 36VDC.

Elevate your industrial door automation with the RP42-9ME/RVP42-9MG Microwave Motion Radar Sensor, offering precision detection, seamless operation, and customizable features tailored to your needs.

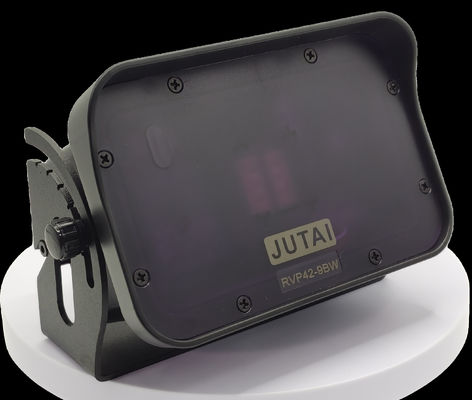

Fast Door Sensor Opener RVP42-9BW For Forklift People Distinguish IP65 0

Application of Microwave Motion Radar Sensor in Industrial Doors

Microwave motion radar sensors are advanced detection devices designed for industrial doors. They can distinguish between people, forklifts, and other moving objects, ensuring safe and efficient operations in industrial environments. With dual relays and the ability to work in extreme temperatures, they offer reliable performance.

Key Features:

Dual Relay Outputs: Enables different responses based on the detected object, increasing operational flexibility.
Wide Temperature Range: Operates from -30℃ to 70℃, suitable for various industrial settings.
High Detection Height: Detects motion up to 9 meters, suitable for large industrial doorways.

Functionality and Applications:

Forklift and Personnel Differentiation: Improves operational efficiency and safety by ensuring the door opens appropriately for different objects, reducing the risk of collisions.
Industrial Warehouses and Loading Bays: Facilitates automatic door opening, enhancing logistics and material handling efficiency, and maintaining environmental conditions.
Cold Storage Facilities: Operates at low temperatures, ensuring doors open only when needed to maintain internal temperatures and product quality.
Manufacturing Plants: Enhances productivity by ensuring prompt door opening for forklifts, improving workflow and safety.

Advantages:

Enhanced Safety: Reduces the risk of accidents by distinguishing between different objects.
Operational Efficiency: Optimizes the movement through industrial doors, reducing downtime.
Energy Savings: Minimizes unnecessary door operations, saving energy and maintaining controlled environments.

Summary: The microwave motion radar sensor is essential for industrial doors, offering features like dual relays, wide temperature operation, and high detection heights. It enhances safety and efficiency in various industrial applications, making it a valuable asset for modern industrial facilities.

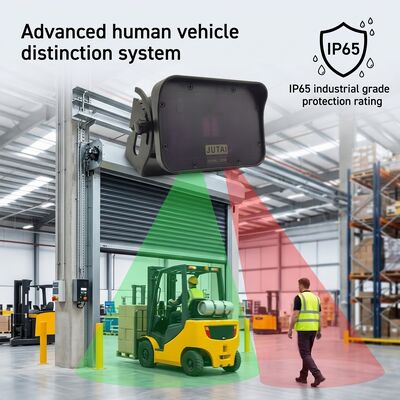

Fast Door Sensor Opener RVP42-9BW For Forklift People Distinguish IP65 1
