Customized Blanking Safety Light Curtain 1.5m Length 8m Range IP67 -30℃ Operation
Product Details
| IP Rating | IP67 | Sensing Distance | 8m |
|---|---|---|---|
| Material | Aluminum Alloy | Feature | Corrosion Resistant |
| Supply Voltage | DC12-24V | Operating Temperature | -20~60℃ |
| Operating Current | <50mA | Output | No/Nc, COM |
| Working Current | <20mA@DC12V | Specification | 150*2.1*1.5cm |
| Highlight | 8m Range Blanking Safety Light Curtain,Customized Blanking Safety Light Curtain,IP67 Blanking Safety Light Curtain |
||
Product Description
Customized Blanking Safety Light Curtain 1.5m Length 8m Range IP67 -30℃ Operation
Product Overview
Download Product PDF
CL15-8L8 Infrared Safety Light Curtain Sensor with Blanking Function for industrial doors, designed for reliable safety protection in demanding environments.
Operating Modes
Blanking Mode
- The safety light curtain is installed inside the door gap
- When the door closes normally, the light beams are blocked from top to bottom in sequence
- This sequential blocking is recognized as a normal door closing action
- When an object passes below and blocks the light beam during closing, it triggers the door to open
Normal Mode
- Installed on the inside and outside of the door
- Light beams are not passed through when the door is closed
- Any light beam blockage immediately triggers the door opening signal
Key Advantages
- Suitable for cold storage doors and humid environments: -25℃ operation
- No need for synchronous wire control box
- Fast response speed: 0.03 seconds
- Resistant to sunlight and electromagnetic interference
- Customization support available
Technical Specifications
| Model | CL15-8L8 |
|---|---|
| Technology | Active Infrared Sensor with Strong Light Resistance |
| Detection Range | Up to 8 meters |
| Response Time | Fast and reliable |
| Working Current | <20mA at DC12V |
| Working Voltage | DC12-24V |
| Output Methods | NO/NC and COM |
| Applications | High-speed doors, sectional doors, rolling doors, vertical closing telescopic doors, freight elevators |
| Protective Height | Max 1225mm (concealing mode), 1305mm (normal mode) |
| Operating Temperature | -25 ~ +70℃ |
| Protection Level | IP67 |
| Shell Material | Aluminum alloy |
Installation Guidelines
Step 1: Remove Covers and Connect Wires
- Detach Covers: Gently remove the top and bottom covers of the sensor
- Wire Connections: Make the necessary wire connections and thread the end through the designated port
Step 2: Position and Mark Holes
- Alignment: Align the transmitter and receiver in parallel to determine the precise installation position
- Marking: Accurately mark the hole positions on the wall for precise drilling
Step 3: Drill and Fix
- Drilling: Utilize a percussion drill to create holes at the marked positions
- Securing: Insert wall plugs into the drilled holes and secure them with screws
Step 4: Mount Transmitter and Receiver
- Mounting: Attach the transmitter and receiver to the wall using M3*25 screws
- Power Connection: Connect the power supply and test the alignment of the sensor
- Adjustment: If needed, adjust the angle by rotating the aluminum tube. Once aligned, firmly tighten the rotating screw
Step 5: Replace Covers and Final Testing
- Reattach Covers: Reattach the top and bottom covers using M2*8 screws
- Final Test: Carry out a comprehensive test to ensure the proper functionality of the sensor

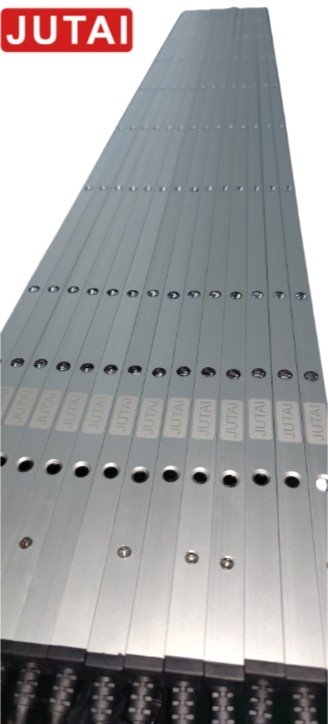

Product Images
