IP65 Safety Curtain Outdoor 30M Range For Large Industrial Door Anti Smashing

Place of Origin	China
Brand Name	JUTAI
Certification	CE
Model Number	PB10-4L15
Minimum Order Quantity	1
Price	Negotiation
Packaging Details	Cartoon
Delivery Time	5 - 8 working days
Payment Terms	T/T, L/C, D/A, D/P, Western Union, Paypal, , MoneyGram, Alipay
Supply Ability	1000 pieces per month

IP Rating

IP65

HS Code

8531100000

Specification

112*13*8.5

Function Type

Infrared Range And Communication System

Detection Type

Photon Detector

Output Signal Type

Digital Type

Highlight

Anti Smashing Safety Curtain

IP65 Outdoor Safety Curtain

30M Safety Curtain

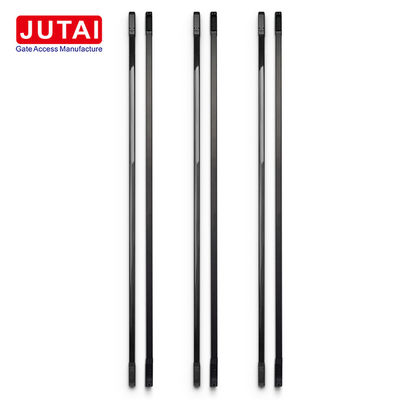

Safety Light Curtain Sensor Product Description

Introduction:
The Safety Light Curtain Sensor offered by JUTAI that employs advanced infrared beam technology. It is designed to provide reliable object detection and trigger appropriate actions in a variety of settings.

Functionality:

For Industrial Doors: If an object is detected while the door is closing, it automatically reopens to prevent potential accidents and safeguard both people and equipment.
In Barrier Gate Applications: Ideal for barrier gates, it quickly reopens if a person or vehicle is detected during closure, enhancing safety at access points.
For Home Security: When it detects unauthorized entry, it activates a relay output, serving as an effective deterrent against intruders and enhancing home security.

Key Features and Advantages:

Exceptional Durability: Engineered to withstand significant light interference and harsh outdoor conditions. With an IP65 waterproof rating, it offers remarkable resilience and long-term performance.
Extensive Detection Range: Boasts a detection range of over 15 meters, providing broad coverage for large areas.
Customization Options Galore: Can be tailored in various lengths and beam configurations to meet specific requirements, ensuring flexibility for different applications.
Rapid Response Time: Features adjustable response times of 50/100/150/200ms, enabling quick detection and response to objects.
Selectable Trigger Modes: Offers the choice between single beam trigger and multi-beam trigger, allowing for customization based on specific safety needs.
180-Degree Horizontal Rotation: Allows for flexible installation and optimal detection in different orientations.

Applications:

Industrial doors and barrier gates to enhance safety during operation.
Home security systems to detect unauthorized entry and trigger alarms.

Specification Table:

Specification	Details
Model	PB20-16L15
Technology	Infrared Optical Technique
Detection Mode	Presence detect
Number of Beams	4 (Customizable)
Length	1m (Customizable)
Detection Distance	15m
Operating Voltage	12 - 24V
Transmitter Operating Current	<50mA
Receiver Operation Current	<50mA
Response Time	50/100/150/200ms adjustable
Trigger Time	Blocks a beam of light and triggers in 2 seconds; blocking adjacent 2 beams or more triggers immediately
Trigger Method	Single beam trigger or Multi-beam trigger (selectable)
Working Temperature	-20~60℃
Relative Humidity	Up to 90%RH (non-condensing)
Alarm Output	Wired Output, relay Output 30VDC@2A, 125VAC@1A
Output Way (Wired Model)	Wired transmission (NO/NC)
Rotation Angle	180 degrees horizontal
IP Level	IP65
Material	Aluminum Alloy and PC Plastic
