10-24VDC Boom Barrier Sensor For Parking Barrier Anti Collision 1-6m Detection Range

Place of Origin	China
Brand Name	JUTAI
Certification	CE, FCC
Model Number	RD24-6M
Minimum Order Quantity	1
Price	Negotiation
Packaging Details	Cartoon
Delivery Time	5-8 days
Payment Terms	T/T, L/C, D/A, D/P, Western Union, Paypal, , MoneyGram, Alipay
Supply Ability	1000 pcs per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Operating Frequency	24.150GHz	Input Voltage	10-24VDC
Relay Contact	1A@24VDC/AC	Relay Control Time	1-6s Adjustable
Operating Temperature	-40℃~+70℃	Waterproof	IP67
Detection Range	1-6m	Specification	11.89.82.6cm
Highlight	24VDC Parking Barrier Sensor , 1-6m Barrier Sensor , 10VDC Anti Collision Barrier Sensor

Leave a Message

Product Description

10-24VDC Boom Barrier Sensor For Parking Barrier Anti Collision 1-6m Detection Range 0

Barrier Radar Sensor Product Description

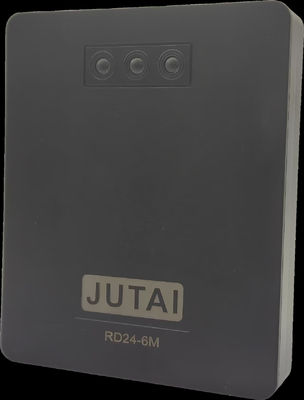

The JUTAI RD24 - 6M Barrier Radar Sensor is a sophisticated device designed for automated access control systems. It ensures the smooth operation of barrier gates by accurately detecting the presence and movement of vehicles.

Key Features:

Accurate Detection: Provides precise detection of vehicles, enabling timely activation of barrier gates.
Weather Resilience: Operates reliably in various weather conditions, including rain, snow, fog, and strong sunlight.
Non - Contact Sensing: Minimizes the risk of damage to the sensor and vehicles through non - contact detection.
Customizable Range: The detection range can be adjusted to suit the specific needs of different locations, from small parking lots to large industrial areas.
Real - Time Monitoring: Continuously monitors vehicle movements and adjusts barrier operations in real time for efficient traffic flow.
Reduced False Alarms: Is less susceptible to false alarms caused by environmental factors, enhancing reliability.
Quick Response: Offers rapid response times, facilitating the quick opening and closing of barrier gates, reducing vehicle waiting times.
Seamless Integration: Easily integrates into existing access control systems for centralized control and management.
Enhanced Security: Reliable vehicle detection helps prevent unauthorized access, strengthening overall security measures.
Cost - Effective: Provides long - term cost savings due to its durability and low maintenance requirements.
Improved Traffic Flow: Optimizes vehicle management, reducing congestion and improving traffic flow in various settings.
Versatile Application: Compatible with various types of barrier gates, ensuring adaptability to diverse applications.

Applications:

Parking Facilities
Toll Booths
Airports
Industrial Facilities
Gated Communities
Commercial Buildings
Government Facilities
Hotels and Resorts
Hospitals
Event Venues
Education Institutions

Installation Steps for JUTAI RD24 - 6M:

Select Power Adapter: Choose a power adapter with an output of 9 - 24VDC 1A for independent power supply.
Power Supply from Brake Controller: When using a brake controller for power supply, ensure the output current is not less than 200mA.
Installation Height: For lanes, the optimal height between the radar center and the ground is 50 - 60cm.
Distance from Fence: The distance between the center of the radar and the fence pole (for octagonal fence) should be no less than 25cm, and for right - angle fence, it should be no less than 30cm.
Installation Orientation: The radar should be installed perpendicular to the horizontal plane and fixed securely.
Detection Range Surface: The ground within the detection range should be flat without any obstacles. When the angle between the passing vehicle and the radar is greater than 30 degrees, set up road barriers to guide the vehicle through.

Wiring Definition:

Color	Function
Red	Power supply input +12VDC
Black	Power supply input GND
Yellow	Set button input port
White	Input GND
Orange	Relay normally open NC
Brown	NC
Blue	Relay normally open COM
Green	Relay normally open NO

Indicator Light and Function Menu:

Red LED Menu settings function check table:

Menu	Setting function	Default (Factory)
1	Detection distance: 1 - 6 meters	3 meters
2	Sensitivity: 1 - Low, 2 - Middle, 3 - High (Factory default at 6)	2
3	Gate closing speed: 1 - 6 corresponds to 2 - 12 seconds	6 seconds
4	Man and cars separation: 1 - Do not distinguish, 2 - Distinguish	2
5	Relay output delay: 0 - 6 seconds or 1 - 6 pulses	0
6	Setting: 1 - Straight bar barrier, 2 - Fence barrier, 3 - Plus signal output	1

LED indicator light (3 pcs RED led):

Function menu	1	2	3
Menu1	ON	OFF	OFF
Menu2	OFF	ON	OFF
Menu3	OFF	OFF	ON
Menu4	ON	OFF	ON
Menu5	OFF	ON	ON
Menu6	ON	ON	ON

Menu1 Detection distance content details (Green LED):

Menu1	1	2	3
1 meter	ON	OFF	OFF
1.5 meter	FLASH	OFF	OFF
2 meters	OFF	ON	OFF
2.5 meters	OFF	FLASH	OFF
3 meters	OFF	OFF	ON
3.5 meters	OFF	OFF	FLASH
4 meters	ON	OFF	ON
4.5 meters	FLASH	OFF	FLASH
5 meters	OFF	ON	ON
5.5 meters	OFF	FLASH	FLASH
6 meters	ON	ON	ON

Menu2 Sensitivity content details (Green LED):

Menu2	1	2	3
Low sensitivity	ON	OFF	OFF
Middle sensitivity	OFF	ON	OFF
High sensitivity	OFF	OFF	ON
Factory default	FLASH	FLASH	FLASH

Menu3 Details of closing speed (Green LED):

Menu3	1	2	3
2 seconds	ON	OFF	OFF
3 seconds	FLASH	OFF	OFF
4 seconds	OFF	ON	OFF
5 seconds	OFF	FLASH	OFF
6 seconds	OFF	OFF	ON
7 seconds	OFF	OFF	FLASH
8 seconds	ON	OFF	ON
9 seconds	FLASH	OFF	FLASH
10 seconds	OFF	ON	ON
11 seconds	OFF	FLASH	FLASH
12 seconds	ON	ON	ON

Menu4 Man and cars distinction content details (Green LED):

Menu4	1	2	3
Not distinguish	ON	OFF	OFF
Distinguish	OFF	ON	OFF

Menu5 The relay content details (Green LED):

Menu5	1	2	3
Existence output	OFF	OFF	OFF
1 second (Pulse mode)	ON	OFF	OFF
2 seconds (Pulse mode)	OFF	ON	OFF
3 seconds (Pulse mode)	OFF	OFF	ON
4 seconds (Pulse mode)	ON	OFF	ON
5 seconds (Pulse mode)	OFF	ON	ON
6 seconds (Pulse mode)	ON	ON	ON

Menu6 Barrier gate or function content details (Green LED):

Menu6	1	2	3
Straight pole gate	ON	OFF	OFF
Fence pole gate	OFF	ON	OFF
Pulse count	OFF	OFF	ON

Setting and Saving Radar Parameters for JUTAI RD24 - 6M:

Enter the Menu: Press and hold the function key until the desired menu number is selected, then release the key. The corresponding parameter green light will turn on.
Amend Parameters: Click the function key to change the current parameter.
Save Parameters: Press and hold the function key until the red indicator lights 1, 2, and 3 flash simultaneously, then release. The parameters will be changed and saved.

Quick Setting (Items Must Be Set Up) for JUTAI RD24 - 6M:

Straight pole lane application settings (2 steps):
- Step 1: Set the application scene to straight rod mode (Menu6).
- Step 2: Set the detection distance (Menu1).
Fence lane application settings (3 steps):
- Step 1: Set the application scenario to fence mode (Menu6).
- Step 2: Set the detection distance (Menu1).
- Step 3: Set the gate closing speed (accurate to 1 second) (Menu3).
Trigger mode application settings (3 steps):
- Step 1: Set the application scenario to trigger mode (Menu6).
- Step 2: Set the detection distance (Menu1).
- Step 3: Set the reply output method (menu5).

Optimize Radar Detector Settings (Select Setting Items) for JUTAI RD24 - 6M:

Sensitivity Setting: For electric vehicles, the recommended setting is middle or low, and for pedestrian passageways, it is middle or high. In certain situations, one can be set in the middle, and the other in high or low.
Pedestrian and Vehicle Distinction Setting: It is strongly recommended to set "No distinction between pedestrians and vehicles" in non - necessary situations. For electric vehicle passages or pedestrian passages, this setting should be used. Otherwise, set "Distinguish between pedestrian and vehicle" to prevent gate closing accidents caused by non - vehicle passing.
Relay Output Delay: In trigger mode, when the delay is set to 0, it is a vehicle presence output; otherwise, it is a pulse output, and the pulse output time range is 1 - 6 seconds.

On - Site Debugging for JUTAI RD24 - 6M:

Straight pole lane mode: After the brake bar lever is raised, trigger the radar at a close range with the palm, and the gate will automatically close after leaving. Within the set detection distance, the brake lever will rebound when the human body approaches the brake lever, and the brake lever can automatically close in place when the human body is far away from the brake lever. (Used to change the closing gate speed parameter of high - speed gates, and the response speed of the radar can be adjusted).
Fence lane mode: If the remote control gate is opened and closed in place repeatedly, the fence will not trigger the radar. After completion, test in the same way as the above - mentioned straight pole lane. (If the radar of any of the above links is activated by the fence itself, please eliminate according to section 12 "General troubleshooting" article 1).
Trigger mode: Refer to the debugging method of the straight pole lane mode.

General Troubleshooting for JUTAI RD24 - 6M:

Radar Triggered by Fence: Check if the distance between the radar and the center of the fence complies with the installation requirements and if the radar installation surface is vertical to the fence pole. Adjust the installation position or add a 2 - 4mm spacer to the side of the radar close to the fence. Ensure the set opening speed is not greater than the actual closing gate speed. Check if there is a distinction between people and vehicles; if not necessary, set it to "No distinction between people and vehicles" and lower the sensitivity by one level.
Radar Output Not Reset: The set distance is greater than the lane, a foreign object is detected on the ground, or the radar is not installed vertically. If the problem persists after troubleshooting, enter menu 2 and select until the 3 green lights flash simultaneously, then long press the function key to perform "Radar Initialization". After initialization, power on again.
Three Lights Always On: If the radar initialization is unsuccessful and still doesn't work after repeated restarts, return to the factory for inspection.
Green Light 1 and 3 Flashing: When the radar judges that the gate is triggered during the closing state or there is a rebound signal at the edge of the X beam, and the radar cannot distinguish whether it is a fence or a vehicle, it will delay opening the gate after the gate is opened or the signal disappears and there is no vehicle passing. This is a safety mechanism to prevent smashing the rear of the car and does not require handling.

Specification for JUTAI RD24 - 6M:

Technology	Microwave Doppler Radar
Operating Frequency	24.150 GHZ
Input Voltage	10 - 24 VDC ±10%
Detection Mode	Motion
Working Current	<150 MA
Output Power (EIRP)	<20 dBM
Relay Pulse Mode	1 - 6s (Adjustable)
Detection Angle (Horizontal)	0 - 28°
Detection Angle (Vertical)	0 - 60°
Detection Range	1 - 6M (3.3 - 19.7FT)
Dimensions	1189826mm (0.390.320.09 FT)
Operation Temperature	-40℃ ~ +70℃
Detectable Speed	20 - 90 ms
Housing Materials	ABS
Relay Control Time	1 - 6s Adjustable
Degree of Protection	IP65
