Microwave Sensor for High Speed Rolling Shutter Doors, Industrial Gate, and Industrial Stacking Door

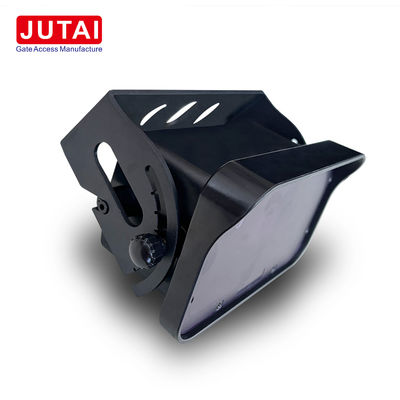

The RVP42 - 9ME/RVP42 - 9BW is an advanced motion radar detector specifically designed for detecting vehicles and humans in industrial environments, such as doors, gates, and road barriers. It is equipped with dual relays for vehicle and pedestrian detection, offering customizable relay outputs to meet various requirements. Additionally, the RVP12 - 9ME/RVP42 - 9MG includes a recognition and filtering function for horizontally moving vehicles or pedestrians.
Detection Area Adjustment:
The microwave range provides both narrow and wide detection areas, which can be adapted to different installations. The narrow setting can be easily configured by attaching the narrow lens to the radar module. The detection area can be adjusted by turning the module left or right and tilting it up or down for precise customization. No external setup device is required, and the detection area can be fine - tuned using the sensitivity potentiometer.
Dual Relay Outputs:
This sensor features dual relays:
| Relay Mode |
Description |
| A. Vehicle - detection relay active |
Vehicle - detection relay is active. |
| B. Person - detection relay active |
Person - detection relay is active. |
| C. Both relays active for combined mode |
Both relays are active for combined mode. |
Relay settings can be customized according to project requirements.
Direction Recognition:
The direction detection can be configured as follows:
| Configuration |
Description |
| A. Forward motion towards the sensor |
Detects forward motion towards the sensor. |
| B. Backward movement away from the sensor |
Detects backward movement away from the sensor. |
| C. Both forward and backward motions |
Detects both forward and backward motions. |
Energy Savings:
By activating the door only in the presence of approaching traffic, energy efficiency and pest control can be enhanced. Automatic closing upon departure ensures optimal energy utilization.
Workflow Optimization:

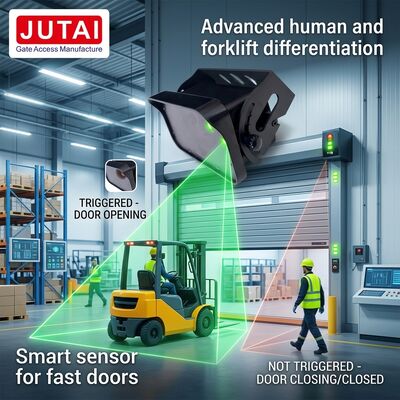

With hands - free door opening, seamless operation is ensured. It is suitable for both new installations and retrofits, accommodating dock and pedestrian doors with automated functionality. Adjustable detection settings ensure accurate filtering for pedestrian, forklift, and parallel traffic, distinguishing between approaching and departing vehicles.
JUTAI Opening Sensor For Industrial Doors:
Ideal for various industrial door applications, including fast doors, stacking doors, and garage doors.
Advantages:
Doppler radar technology enables touchless operation with customizable sensing areas. The built - in 2 - channel relay for vehicle and human detection enhances functionality and versatility.
Product Parameters:
| Parameter |
Details |
| Application Technology |
Doppler radar |
| Transmission Frequency |
24.125GHz |
| Transmission Power |
<20dBm |
| Detection Height |
2.0m - 9.0m |
| Angle Adjustment |
0° - 90° longitudinal |
| Detection Speed |
5cm/s - 25km/s |
| Detection Area (30° Angle) |
3.0m - 3.5m @ height: 2m, 6.5m - 8.5m @ height: 9m |
| Operation Current |
<100mA |
| Power Frequency |
50Hz |
| Temperature Range |
-30°C to +60°C |
| Relative Humidity |
0% to 95%, no condensation |
| Protection Grade |
IP65 |
| Relay Output |
24VDC @ 1A, [email protected] |
| External Dimensions |
164mm x 111mm x 94.5mm |
| Cable Length |
7m |
| Sensor Weight |
650g |
| Operation Voltage |
12 - 36VADC |
