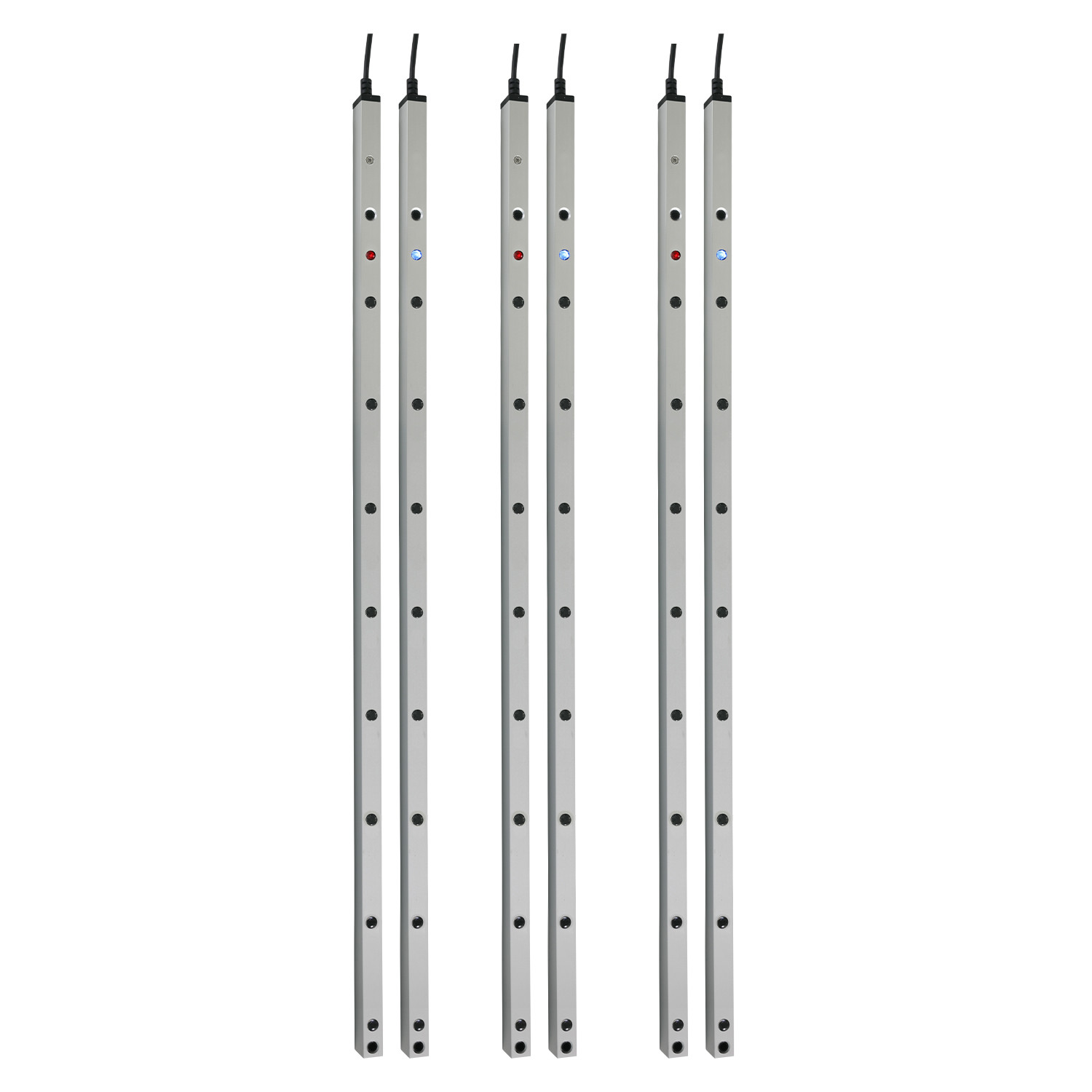

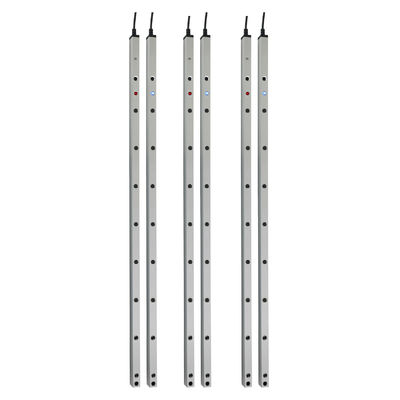

The JUTAI safety light curtain CL20 - 16L operates by establishing a beam of light between the emitter and the receiver, thereby creating a protective barrier. Whenever an object or an individual enters the grid area, the light beam is interrupted, promptly activating the safety system to execute the appropriate actions. It is typically installed at vital points of machinery such as doors, automatic doors, and lifting equipment, enabling the immediate detection of potential crushing risks. This product is extensively employed in industrial and commercial settings and serves as a crucial element in automation systems, especially in scenarios where a high level of safety is imperative.
The safety light curtain is mounted within the door gap. During the normal closing process of the door, the light beams of the light curtain are blocked in a sequential manner from top to bottom. The system interprets this sequential blocking as a regular door-closing operation. However, if an object passes underneath and obstructs the light beam while the door is closing, the door will open instantaneously.
When installed on both the interior and exterior sides of the door, and with the door in a closed state, the light beams do not pass through. In this configuration, regardless of which light beam within the light curtain is blocked, the system will immediately generate the door-opening signal.
Consists of an emitter and a receiver.
The operational range spans from 1 to 8 meters.
The maximum protection height reaches 1820mm in both the blanking and normal modes.
Constructed with an aluminum alloy shell, ensuring durability and resistance to environmental factors.
Ideal for use in cold storage doors and humid environments with a temperature range as low as -25°C. Its robust design and materials allow it to function optimally even in challenging conditions.
Eliminates the need for a synchronous wire control box, streamlining the installation process and reducing complexity. This not only saves time but also minimizes the potential for installation errors.
Boasts a remarkably fast response speed of 0.03 seconds. This swift reaction time is crucial in preventing accidents and ensuring the safety of personnel and equipment.
Demonstrates excellent resistance to sunlight and electromagnetic interference. This feature guarantees stable performance even in environments with high levels of electromagnetic activity or direct sunlight exposure.
Supports customization in terms of quantity, allowing you to tailor the product to meet the specific requirements of your project. Whether you need a single unit or a large quantity, we can accommodate your needs.
The JUTAI IP67 Blanking Safety Light Curtain CL20 - 16L is a high-quality, reliable, and versatile safety solution designed to meet the diverse needs of industrial and commercial applications. Its advanced features and robust construction make it an ideal choice for enhancing safety and efficiency in your operations.
