1000mm 8 Beams Blanking Safety Light Curtain 8m Range IP67 -30℃ Operation

  • 1000mm 8 Beams Blanking Safety Light Curtain 8m Range IP67 -30℃ Operation
  • 1000mm 8 Beams Blanking Safety Light Curtain 8m Range IP67 -30℃ Operation
Place of Origin China
Brand Name JUTAI
Certification CE
Model Number CL10-8L
Minimum Order Quantity 1
Price Negotiation
Packaging Details Cartoon
Delivery Time 5 - 8 working days
Payment Terms T/T, L/C, D/A, D/P, Western Union, Paypal, , MoneyGram, Alipay
Supply Ability 1000 pieces per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
IP Rating IP67 Detect Distance 8m
Material Aluminum Alloy Feature Corrosion Resistant
Supply Voltage DC12-24V Operating Temperature -20~60℃
Operating Current <50mA Output NO/NC, COM
Working Current <20mA@DC12V Specification 1000*21*15mm
Highlight

IP67 Blanking Safety Light Curtain

,

1000mm Blanking Safety Light Curtain

,

8 beams Blanking Safety Light Curtain
Leave a Message
Product Description

CL10-8L Infrared Safety Light Curtain Sensor with Blanking Function for industry Door

Product Description

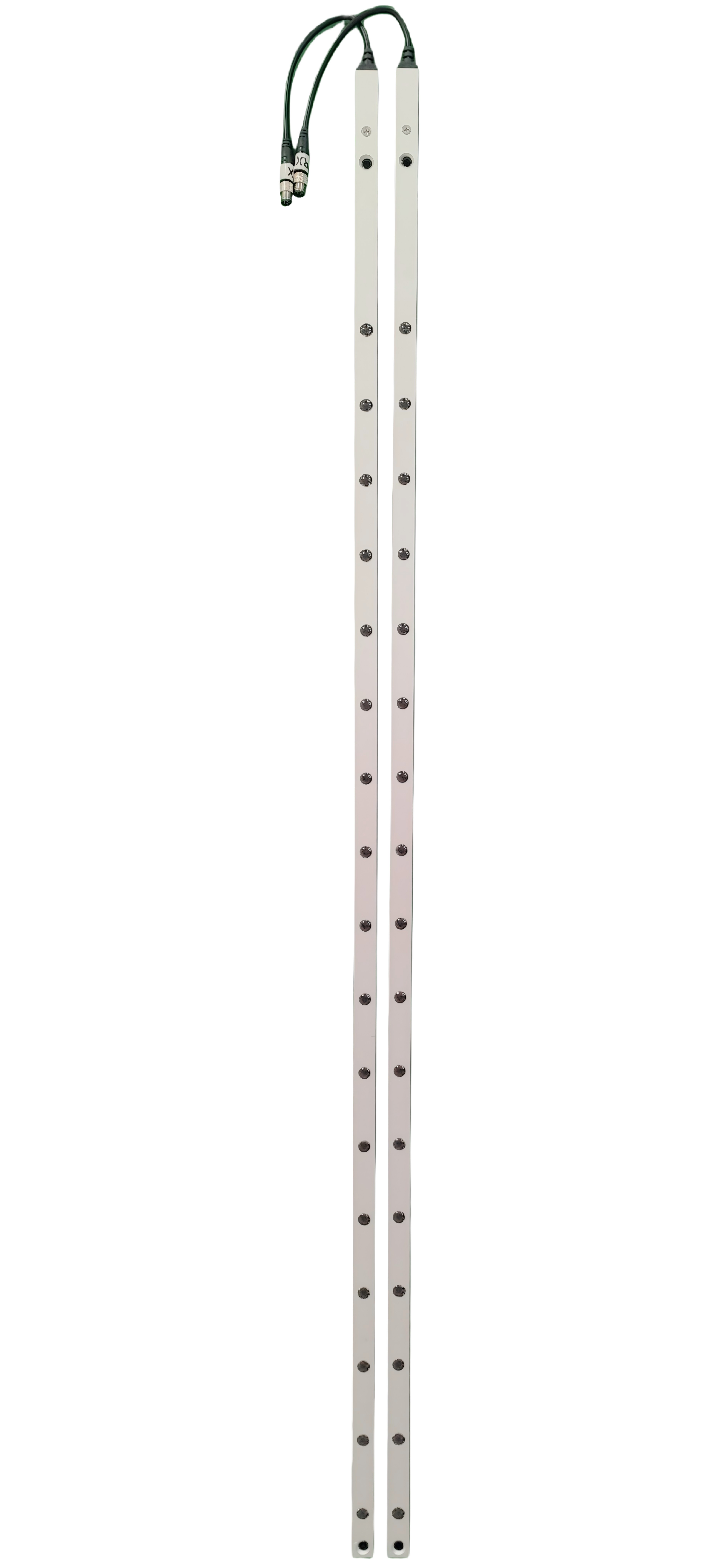

1000mm 8 Beams Blanking Safety Light Curtain 8m Range IP67 -30℃ Operation 0

JUTAI IP67 CL10-8L Safety Light Curtain

Blanking Mode:

  • Installed inside the door gap. When the door closes normally, the light beams of the safety light curtain are sequentially blocked from top to bottom. This sequential blocking is recognized by the system as a normal door closing action. However, if an object passes below and blocks the light beam when the door is in the process of closing, it will trigger the door to open.

Normal Mode:

  • Installed on the inside and outside of the door. When the door is closed, the light beams are not passed through. In this mode, regardless of which light beam is blocked, the system will immediately output the door opening signal.

Advantages:

  • Suitable for cold storage doors and humid environments down to -25℃.
  • No need for a synchronous wire control box.
  • Ultra-fast response speed of just 0.03 seconds.
  • Resistant to sunlight and electromagnetic interference.
  • Supports customization (in terms of quantity).

Technical Specifications

Model CL10-8L
Technology Active Infrared Sensor with Strong Light Resistance
Detection Range Up to 8 meters
Response Time Fast and reliable
Working Current <20mA at DC12V
Working Voltage DC12-24V
Output Methods NO/NC and COM
Applications High-speed doors, sectional doors, rolling doors, vertical closing telescopic doors, freight elevators
Protective Height Max 800mm
Operating Temperature -25 ~ +70℃
Protection Level IP67
Shell Material Aluminum alloy



Installation Guidelines for JUTAI IP67 CL10-8L Safety Light Curtain

Step 1: Prepare for Installation

  • Detach Covers: Gently remove the top and bottom covers of the sensor.
  • Wire Connections: Make the necessary wire connections and thread the end through the designated port.

Step 2: Determine Installation Position

  • Alignment: Align the transmitter and receiver in parallel to find the exact installation spot.
  • Marking: Precisely mark the hole positions on the wall for accurate drilling.

Step 3: Drill and Secure

  • Drilling: Use a percussion drill to create holes at the marked locations.
  • Securing: Insert wall plugs into the drilled holes and fasten them with screws.

Step 4: Mount Components and Adjust

  • Mounting: Attach the transmitter and receiver to the wall using M3*25 screws.
  • Power Connection: Connect the power supply and test the alignment of the sensor.
  • Adjustment: If required, adjust the angle by rotating the aluminum tube. Once aligned properly, tighten the rotating screw firmly.

Step 5: Finalize Installation and Test

  • Reattach Covers: Reattach the top and bottom covers using M2*8 screws.
  • Final Test: Conduct a thorough test to ensure the sensor functions correctly.





1000mm 8 Beams Blanking Safety Light Curtain 8m Range IP67 -30℃ Operation 1

1000mm 8 Beams Blanking Safety Light Curtain 8m Range IP67 -30℃ Operation 2


1000mm 8 Beams Blanking Safety Light Curtain 8m Range IP67 -30℃ Operation 3
1000mm 8 Beams Blanking Safety Light Curtain 8m Range IP67 -30℃ Operation 4
1000mm 8 Beams Blanking Safety Light Curtain 8m Range IP67 -30℃ Operation 5
1000mm 8 Beams Blanking Safety Light Curtain 8m Range IP67 -30℃ Operation 6
8-Beam 1.5m Safety Light Curtain Sensor8-Beam 1.5m Safety Light Curtain Sensor
