JUTAI Parking Guidance System (Model: JTNP - ULS) Product Description

1. Product Overview

Product Introduction

Key Features

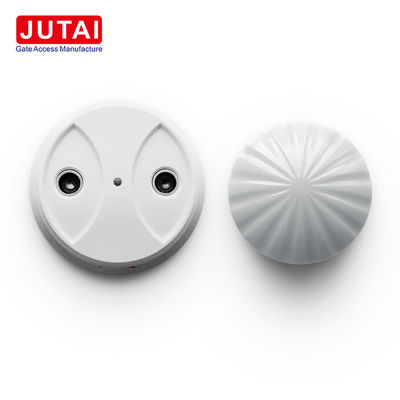

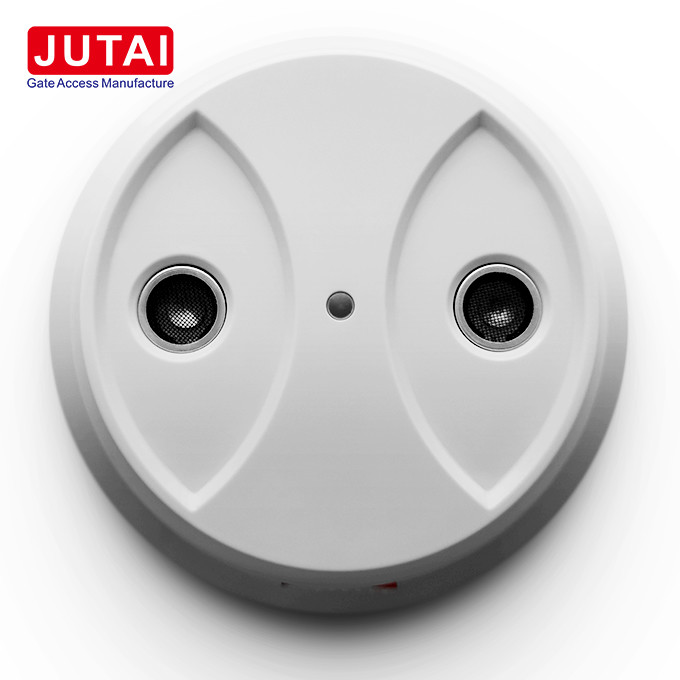

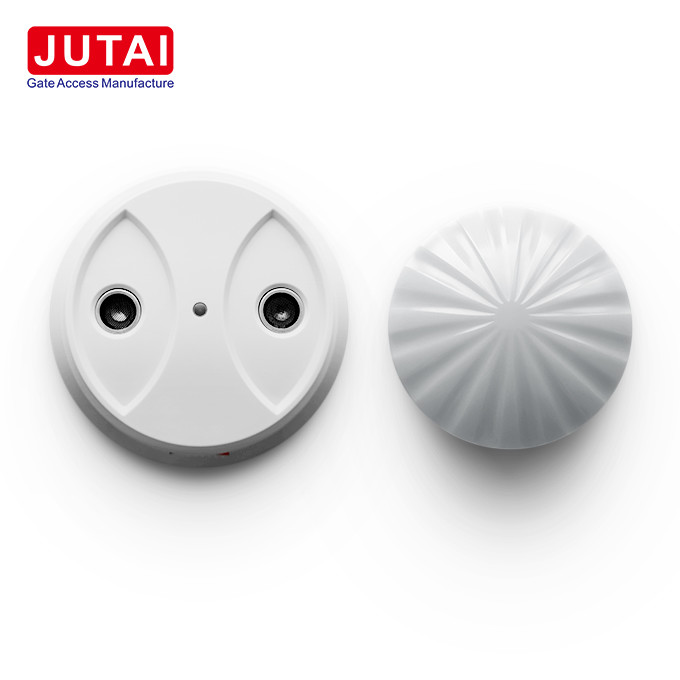

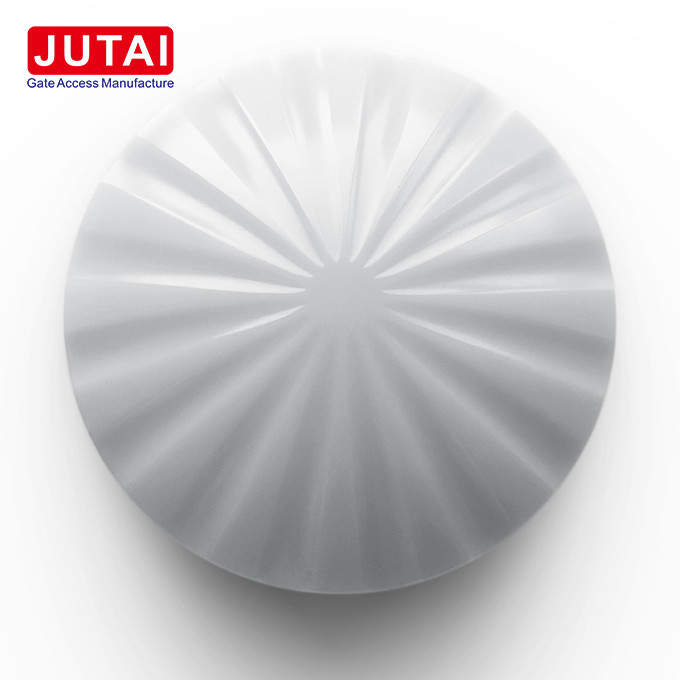

• Advanced Ultrasonic Detection: The system utilizes ultrasonic detectors installed above each parking space to accurately determine occupancy status. These detectors have a high level of precision and can operate effectively within a range of 1.5 to 5 meters in height, with a visual distance of up to 30 meters. They are made of durable ABS engineering plastics and operate on a 24V working voltage. The 8 - level detection distance adjustment ensures reliable performance even in challenging environments, with strong anti - interference capabilities1.
• Efficient Space Management: By providing drivers with real - time information about available parking spaces, the JTNP - ULS system significantly reduces the time spent searching for a spot. This not only improves the overall efficiency of the parking lot but also enhances the user experience, leading to increased customer satisfaction.
• Energy - Efficient Lighting Control: The system incorporates energy - saving switches to control parking space lights. This feature helps to reduce electricity consumption and operational costs, making it an environmentally friendly and cost - effective solution for parking facilities.
• Comprehensive Data Analytics: It offers detailed statistics on parking space utilization, vehicle flow patterns, and other crucial data. This information empowers administrators to make informed decisions regarding parking lot management, such as optimizing space allocation, scheduling maintenance, and planning future expansions.
• Intuitive User Interface: The JTNP - ULS system is designed with a user - friendly interface that is easy for drivers to understand and follow. Clear visual displays and intuitive guidance ensure that even first - time visitors can easily navigate the parking lot and find available spaces without confusion.

Application Scenarios

2. Product Specifications

System Components

Wiring Diagram

Installation Instructions

1. Ultrasonic Detector Installation: Mount the detectors above each parking space at the appropriate height within the 1.5 - 5m range. Ensure proper alignment and connection to the power supply and communication cables.
2. Node Controller Setup: Install the node controllers in a suitable location and connect them to the ultrasonic detectors using the specified communication interfaces. Connect the power supply and configure the communication parameters as per the system requirements.
3. Central Controller Installation: Position the central controller in a central location within the parking facility. Connect it to the node controllers and the host computer using the appropriate network cables. Configure the system settings and ensure proper communication between all components.

System Operation

1. Data Collection: The ultrasonic detectors continuously monitor the parking spaces and transmit occupancy data to the node controllers.
2. Data Transmission: The node controllers aggregate the data from the detectors and send it to the central controller.
3. Data Processing and Display: The central controller processes the received data and updates the guidance display screens in real - time, showing drivers the location of available parking spaces.
4. User Interaction: Drivers follow the visual cues provided by the system to navigate to an available parking space, improving the overall parking experience.

Troubleshooting

1. Connection Issues: If there is a problem with the communication between components, check the wiring connections, cable integrity, and communication settings.
2. Detector Malfunction: If an ultrasonic detector is not detecting accurately, verify its installation height, alignment, and check for any obstructions. If necessary, recalibrate the detector or replace it if faulty.
3. Display Problems: If the guidance display screen is not showing the correct information, check the connection to the central controller and ensure the display settings are configured correctly.

Maintenance and Warranty

1. Regular Maintenance: Periodically inspect the system components for any signs of damage or wear. Clean the ultrasonic detectors and ensure proper ventilation for all electronics.
2. Warranty Information: The JTNP - ULS Parking Guidance System comes with a standard warranty. Please refer to the warranty documentation for details on coverage and support.
