RVP42-7BW Bluetooth APP Setting Motion Sensor Forklift People Distinguish IP65
| Place of Origin | China |
|---|---|
| Brand Name | JUTAI |
| Certification | FDA, E-MARK, CE, ISO, FCC, RoHS, DOT, ASTM, AS/NZS, CCC, GS |
| Model Number | RVP42-7BW |
| Minimum Order Quantity | 1 |
| Price | Negotiation |
| Packaging Details | Cartoon |
| Delivery Time | 5-8 days |
| Payment Terms | T/T,L/C,D/A,D/P,Western Union,Paypal,MoneyGram,Alipay |
| Supply Ability | 1000 pieces per month |
Product Details
| Output | 1 Relays Output. | Power Supply | 12-28VAC, 12-36VDC |
|---|---|---|---|
| Frequency | 24.125GHz | Detection Height | 2m To 7m |
| HS Code | 9031809090 | Package Size | 28.00cm * 13.00cm * 10.00cm |
| Function | Forklift People Distinguish | Waterproof | IP65 |
| Highlight | People Distinguish Forklift Motion Sensor,Bluetooth APP Setting Forklift Motion Sensor,IP65 Forklift Motion Sensor |
||
Product Description
RVP42-7BW Bluetooth APP Setting Motion Sensor Forklift People Distinguish IP65
Product Overview
The RVP42-7M is a high-performance radar developed by Shenzhen JUTAI COMM CO., LTD., designed for industrial applications including industrial doors, garage doors, cold storage doors, and barriers. This advanced radar detects the presence of people or vehicles and features intelligent identification and filtering of laterally moving objects.
Design & Construction

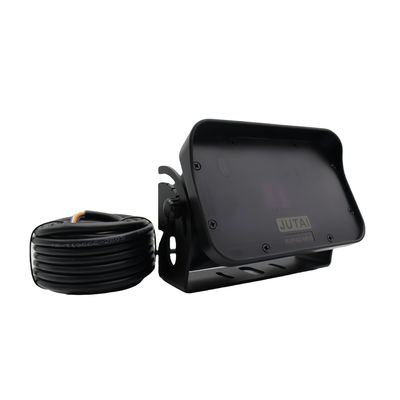

Featuring a durable grey anodized aluminum and polycarbonate housing, the radar measures 164mm x 111mm x 94.5mm (including bracket) and weighs 630g. Its compact design ensures suitability for various installation locations.
Installation & Wiring
Power Supply
- Operating Voltage: 12-36V ADC
- Operating Current: <100mA
- Wire Colors: Black (±12-36V ADC), Red (+12-36V ADC)
Relay Output
- Default Output: NO (NC)
- Wire Colors: Yellow (Relay 1 COM), Green (Relay 1 NO)
- Signal Indicator: Green light
Installation Guidelines
- Mount securely on flat surfaces to minimize vibration impact
- Avoid obstructions like banners or plants in detection area
- Keep metal objects away from sensor cover
- Do not install near fluorescent lights
- Installation Height: 2 meters to 7 meters
Technical Specifications
| Parameter | Specification |
|---|---|
| Emission Frequency | 24.125 GHz |
| Emission Power | <20dBm |
| Temperature Range | -30°C to +60°C |
| Air Humidity | 0% - 95% relative humidity (no condensation) |
| Maximum Detection Speed (Vehicle) | 25km/h |
| Cable Length | 7m |
| Protection Level | IP65 |
Remote Control Operation
Power on by long-pressing the START button on the remote control. Aim the remote at the radar without shaking until the START button stays lit. If the button flashes, long-press to turn off, remove/reinstall battery, and repeat power-on process.
Important: Remote control functions only within the first 30 minutes after radar power-on. After 30 minutes, power cycle the radar to restore remote functionality.
Product Advantages
Industrial Door Applications
Robust Construction
Direction Recognition
Application Solutions
Elevate your industrial door automation with the RP42-9ME/RVP42-9MG Microwave Motion Radar Sensor, offering precision detection, seamless operation, and customizable features tailored to your specific requirements.
