Single Relay Microwave Radar Motion Sensor RVP42-7M for Sectional and High-Speed Doors

RVP42-7M Single Relay Radar Motion Sensor for Industrial Doors

Product Introduction

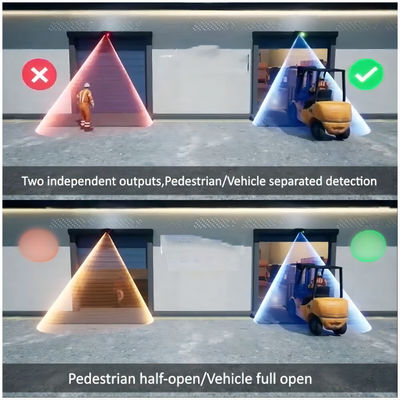

The RVP42-7M is a high-performance microwave radar sensor developed by Shenzhen JUTAI COMM CO., LTD. Specifically designed for use in industrial applications such as industrial doors, garage doors, cold storage doors, and other high-traffic entryways, this radar sensor can effectively detect the presence of both vehicles and pedestrians. It features advanced motion detection capabilities, including filtering laterally moving objects such as vehicles or pedestrians, ensuring precise detection and safe operation of automated doors.

Appearance and Dimensions

• Housing Material: Grey anodized aluminum and polycarbonate

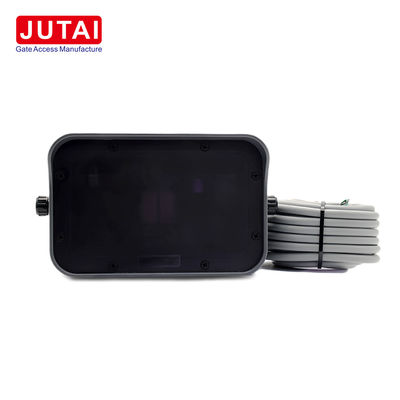

• Dimensions (Including Bracket): 164mm x 111mm x 94.5mm
• Weight: 630g
• Design: Compact and rugged, suitable for various installation locations, offering both flexibility and durability.

Wiring and Installation

• Power Supply:
  • Working Voltage Range: 12V to 36VDC
  • Working Current: Less than 100mA
  • Cable Color Coding:
    • Black: ±12 to 36VDC
    • Red: +12 to 36VDC
• Relay Output:
  • Default relay output is NO (NC).
  • Relay 1 COM: Yellow wire
  • Relay 1 NO: Green wire
  • Relay signal output is indicated by a green light.
• Installation Requirements:
  • Install on a flat, firm surface to minimize vibrations.
  • Avoid obstructions such as banners or plants blocking the detection area.
  • Ensure no metal objects are placed in front of the sensor.
  • Do not install the sensor near fluorescent lighting.
• Installation Height: 2m to 7m, offering flexibility for different installation scenarios.

Technical Parameters

Sensor Function and Parameter Settings

• Sensitivity Adjustment: Fine-tune radar sensitivity to detect objects of varying sizes or speeds.
• Detection Range: Optimized for both pedestrian and vehicle detection in various industrial environments.
• Remote Control Operation:
  • Power On: Long press the START button on the remote control to power on.
  • Special Note: The remote control functions only within 30 minutes after the radar is powered on. If this time is exceeded, power the radar off and on again to use the remote control.

Applications

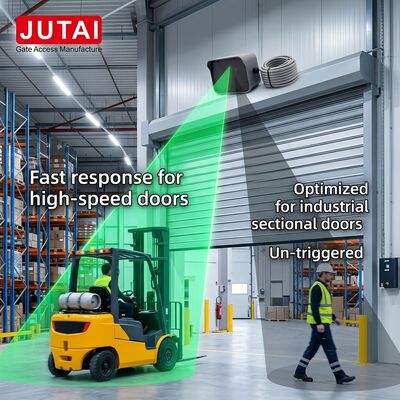

The RVP42-7M radar sensor is ideal for a wide range of industrial door applications, including:

1. Industrial Doors: Optimized for safety and efficiency in factories and warehouses.
2. Garage Doors: Suitable for both residential and commercial garage doors where vehicle detection is crucial.
3. Cold Storage Doors: Ensures safety and energy efficiency in temperature-sensitive environments.
4. Dock Doors: Helps manage traffic flow at loading docks, distinguishing between vehicles and pedestrians.

By utilizing Doppler radar technology, the RVP42-7M offers enhanced detection accuracy, ensuring reliable and hands-free door operation in various industrial environments.

Key Benefits

• Hands-Free Operation: Automatically opens doors based on detection of vehicles or pedestrians, reducing the need for manual control.
• Energy-Efficient: Only activates when motion is detected, reducing energy consumption by minimizing the amount of time the door remains open.
• Enhanced Safety: The sensor differentiates between pedestrians and vehicles, ensuring safe operation by preventing accidents.
• Customizable Sensitivity: Adjusts sensitivity levels to meet specific environmental needs, such as high-speed door applications or environments with high traffic.

Conclusion

The RVP42-7M Single Relay Radar Motion Sensor is a advanced solution for industrial door automation. With its advanced motion detection, adjustable sensitivity, and high durability, it offers an ideal solution for a variety of applications including industrial doors, garage doors, and cold storage doors. Its versatility in installation height, reliable performance in varying environmental conditions, and energy-efficient design make it an essential tool for modern industrial applications.
