500mm 8-Beam Safety Blanking Light Curtain Sensor IP67 Waterproof 30ms Response Speed

IP67 Waterproof Safety Light Curtain Sensor (500mm, 8 Beams) by Shenzhen JUTAI Comm Co., Ltd.

Product Overview

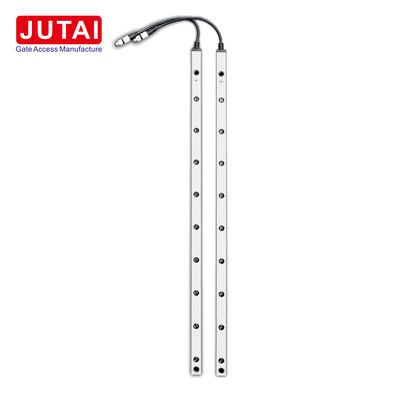

The 500mm 8 Beams IP67 Waterproof Safety Light Curtain Sensor from Shenzhen JUTAI Comm Co., Ltd. is designed to provide reliable protection in industrial environments where dust, moisture, and other contaminants are present. With an IP67 waterproof rating, this sensor ensures consistent performance in harsh settings, such as manufacturing plants, warehouses, and automated production lines.

Featuring a 500mm length with 8 beams and 50mm beam spacing, the CL05-8L model provides high-accuracy detection within a maximum protection area of 400mm. This makes it an ideal solution for smaller industrial doors or tight spaces where precise safety measures are required.

Key Features

• IP67 Waterproof & Dustproof Design: Ensures optimal performance in environments exposed to moisture, dust, and contaminants.
• Flexible Operating Modes:
  • Blanking Mode: Installed inside the door gap, this mode detects beam blockage as the door closes and triggers an automatic reopening if an obstruction is detected.
  • Normal Mode: Mounted on both sides of the door, blocking any beam instantly triggers a door-opening signal for safety.
• High Detection Accuracy: With a beam spacing of 50mm, the CL05-8L ensures precise object detection in smaller areas, providing an effective safety solution for compact industrial doors.
• Durable and Impact-Resistant: Made with rugged materials, this sensor is built to withstand mechanical impacts and harsh operating conditions, offering long-lasting reliability.
• Energy-Efficient Operation: Designed to minimize power consumption while maintaining optimal performance, making it a cost-effective solution for continuous operation.
• Compact and Precise: Perfect for smaller industrial applications, providing a maximum protection area of 400mm for areas where space is limited.

Technical Specifications

Applications and Advantages

The 500mm 8 Beams IP67 Waterproof Safety Light Curtain Sensor is an ideal choice for a wide range of industrial door applications, particularly in environments where safety is critical. With its 50mm beam spacing and compact design, the CL05-8L offers reliable protection for smaller or more confined spaces.

• Rolling Doors: Commonly used in warehouses and factories, rolling doors benefit from the CL05-8L’s ability to detect any obstruction in its path and trigger an immediate reopening, ensuring safety from forklift collisions or worker accidents.

• Sectional Doors: These vertical-opening doors require protection from obstructions as they close. The CL05-8L ensures safety by detecting any objects or personnel in the door’s path, preventing injury or damage.

• High-Speed Doors: For facilities like cold storage rooms and food processing plants, the CL05-8L ensures high-speed doors stop immediately when an object blocks the light beams, preventing accidents without disrupting operations.

• Foldable Doors: These space-saving doors are protected by the CL05-8L, which detects any obstructions and prevents fast-moving doors from causing harm to workers in high-traffic areas.

• Automatic Sliding Doors: The CL05-8L is perfect for automatic sliding doors in both industrial and commercial settings. The sensor detects any objects in the path of the door, ensuring it halts to avoid collisions.

• Fire Doors: In fire safety applications, the CL05-8L ensures that fire doors close securely without posing a risk to people or vehicles, providing safety in emergency situations.

• Cold Storage Doors (Cold Rooms): The CL05-8L operates effectively in temperatures as low as -25°C, providing reliable detection in cold storage environments where moisture, fog, and condensation are common.

Additional Applications:

• Material Handling Systems (Conveyor Systems): The sensor provides protection in material handling systems, ensuring the safety of workers and machinery in busy production environments.

• Robotic Arms: In factories with automated robotics, the CL05-8L ensures that robotic arms stop immediately if a person or object enters the danger zone.

• Automated Guided Vehicles (AGVs): The sensor ensures the safe operation of AGVs, preventing collisions in dynamic environments such as warehouses or production lines.

• Packaging Equipment: High-speed packaging machinery is safeguarded by the CL05-8L, which halts the machinery immediately when an obstruction is detected, ensuring safety for operators and preventing equipment damage.

Why Choose Shenzhen JUTAI Comm Co., Ltd.?

At Shenzhen JUTAI Comm Co., Ltd., we are committed to providing high-quality industrial safety solutions. The 500mm 8 Beams IP67 Waterproof Safety Light Curtain Sensor is designed to offer reliable, durable, and energy-efficient protection in demanding environments.

With over 10 years of experience, we offer cost-effective, robust solutions tailored to meet your unique safety requirements. Our customer support team is ready to assist with any technical inquiries or installation guidance.
