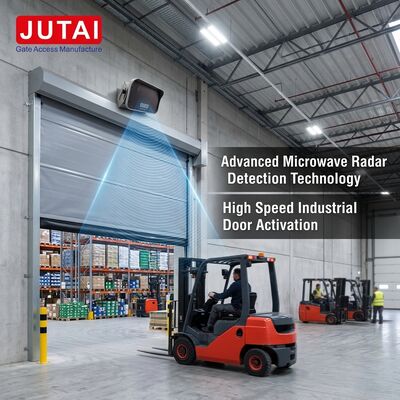

Microwave Radar For Forklift Vehicle Detection In Industrial Doors High Speed Doors

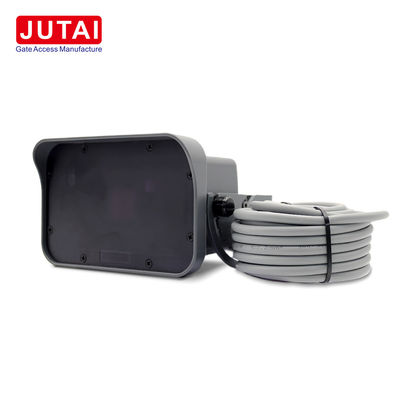

RVP42-7M Single Relay Microwave Motion Radar Sensor for Industrial Applications
Product Overview
The RVP42-7M is a microwave radar sensor from Shenzhen JUTAI COMM CO., LTD., specifically engineered for industrial environments. Ideal for applications such as industrial doors, garage doors, cold storage doors, and other high-traffic entry points, it ensures precise detection of vehicles and pedestrians. With its sophisticated motion-detection features, including the ability to filter out lateral movements, it offers dependable operation for automated doors, enhancing both safety and efficiency.

Design and Dimensions

• Housing Material: Grey anodized aluminum and durable polycarbonate
• Dimensions (including bracket): 164mm x 111mm x 94.5mm
• Weight: 630g
• Design: Compact and sturdy, the sensor’s design allows it to be installed in a variety of settings while maintaining robustness and flexibility.

Wiring and Setup

• Power Supply:
  • Operating Voltage: 12V to 36VDC
  • Operating Current: Less than 100mA
• Cable Color Coding:
  • Black: ±12V to 36VDC
  • Red: +12V to 36VDC
• Relay Output:
  • Default: NO (Normally Open)
  • Relay 1 COM: Yellow wire
  • Relay 1 NO: Green wire
• Installation Requirements:
  • Mount the radar on a stable, flat surface to minimize vibrations and external interferences.
  • Ensure that the detection area is unobstructed by any physical objects.
  • Keep away from fluorescent lighting and metallic obstructions.
  • Installation height: 2m to 7m for versatile mounting in different environments.

Technical Specifications

Sensor Settings and Features

• Adjustable Sensitivity: Tailor the sensor’s sensitivity to detect objects of varying sizes or speeds.
• Detection Range: Optimized for both pedestrian and vehicle detection across different industrial settings.

Remote Control Operation

• Power On: Long press the START button on the remote to turn on the sensor.
• Note: The remote control operates within the first 30 minutes after powering on the radar. After this period, the radar must be powered off and back on to reactivate remote control functionality.

Applications
The RVP42-7M is highly suitable for various industrial door systems, including:

• Industrial Doors: Ideal for ensuring safe and efficient door operations in factories and warehouses.
• Garage Doors: Optimized for vehicle detection in both residential and commercial garage applications.
• Cold Storage Doors: Ensures smooth operation while maintaining safety and energy efficiency in cold storage facilities.
• Dock Doors: Ideal for managing traffic flow at loading docks and preventing accidents by distinguishing vehicles from pedestrians.

Key Benefits

• Hands-Free Operation: Automatically activates doors when vehicles or pedestrians are detected, eliminating the need for manual control.
• Energy-Efficiency: The sensor only triggers door movement upon detecting motion, minimizing the time doors remain open and reducing energy consumption.
• Improved Safety: Differentiates between pedestrians and vehicles, preventing accidents and ensuring safe operation of automated doors.
• Customizable Sensitivity: Adjustable detection sensitivity for tailored use in environments with varying traffic speeds and volumes.

Conclusion
The RVP42-7M Single Relay Radar Motion Sensor is an advanced, reliable solution for industrial door applications. It combines precision motion detection, flexible installation options, and energy efficiency to enhance operational safety and performance in various industrial environments.
