Unique 1800mm 29-Beam Doors 100000Lux IP65 Blanking Light Curtain Anti Interference Capability JUTAI Technical Support
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Total Length | 1838mm | Maximum Protection Height | 1566mm |
|---|---|---|---|
| Beam Number | 29pcs | Response Time | ≤ 100ms |
| Anti - Interference Capability | 100000Lux | Operating Temperature | - 20°C ~ + 60°C |
| Working Current | < 150mA @ DC12 - 24V | Detection Range | 12m |
| Highlight | 100000Lux IP65 Blanking Light Curtain,Anti Interference IP65 Blanking Light Curtain |
||
Product Description

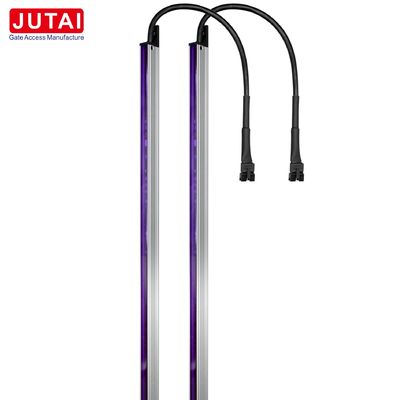

JUTAI 1.8m 29-Beam Safety Blanking Light Curtain Sensor
Intelligent Industrial Safety Guardian with Dynamic Shielding Technology
Core Advantages
Seamless Integration
With an ultra-slim 12.5mm cross-section and 1838mm total length, this sensor embeds discreetly into door gaps without obstructing mechanical operations.
Environmental Resilience
- Sunlight Immunity: Operates reliably under 100,000Lux ambient light (including direct sunlight).
- Military-Grade Durability: Imported infrared emitters ensure 500,000+ operation cycles across -20°C to +60°C extremes.
Functional Highlights
3D Protection Grid
29 infrared beams spaced at 60mm intervals create a detection zone accurate to 20mm objects (e.g., forklift tines). The Adaptive Blanking Algorithm intelligently distinguishes between normal door closure and safety hazards:
- Safe Closure Recognition: Sequential beam blocking from top to bottom triggers no alarm.
- Emergency Response: Irregular beam interruption activates door reopening within 0.1s.
Technical Specifications
| Parameter | Transmitter | Receiver |
|---|---|---|
| Power Supply | DC12-24V/150mA | DC12-24V/150mA |
| Dimensions | 1838×35×12.5mm | 1838×35×12.5mm |
| Environmental | IP65/-20°C~+60°C | IP65/-20°C~+60°C |
| Optical | 29 beams/58mm pitch | 29 beams/58mm pitch |
| Response Time | - | <100ms |
| Output | - | Normally Open (NO) |
Wiring Configuration
Dual-End Synchronization
| Wire Color | Transmitter Function | Receiver Function |
|---|---|---|
| Black | Ground (GGD) | Ground (GGD) |
| Yellow | Signal Sync | Signal Sync |
| Red | DC12-24V+ | DC12-24V+ |
| Green | Reserved | NO Output |
| White | Reserved | Common (COM) |
Note: Connect yellow wires between transmitter and receiver for synchronization.
Why Choose Shenzhen JUTAI Comm Co., Ltd.?
As a leader in industrial safety solutions for over 10 years, JUTAI delivers precision-engineered systems that combine convenience and protection:
-
Microwave Motion Radar Sensors
- Automatically detects approaching forklifts/personnel to trigger door opening, enhancing operational efficiency.
- 5-15m adjustable detection range with 360° coverage.
-
Safety Light Curtain Sensors
- Provides real-time intrusion detection to prevent entrapment accidents.
Together, these technologies form our "Gate Guardian" Suite – a complete solution for smart industrial door systems that balances safety with workflow optimization.
Your Trusted Partner in Industrial Safety
- Certified Quality: EN/IEC 61496-1/2 compliant
- Custom Solutions: Tailored configurations for unique operational needs
- 24/7 Support: Expert guidance from installation to maintenance
