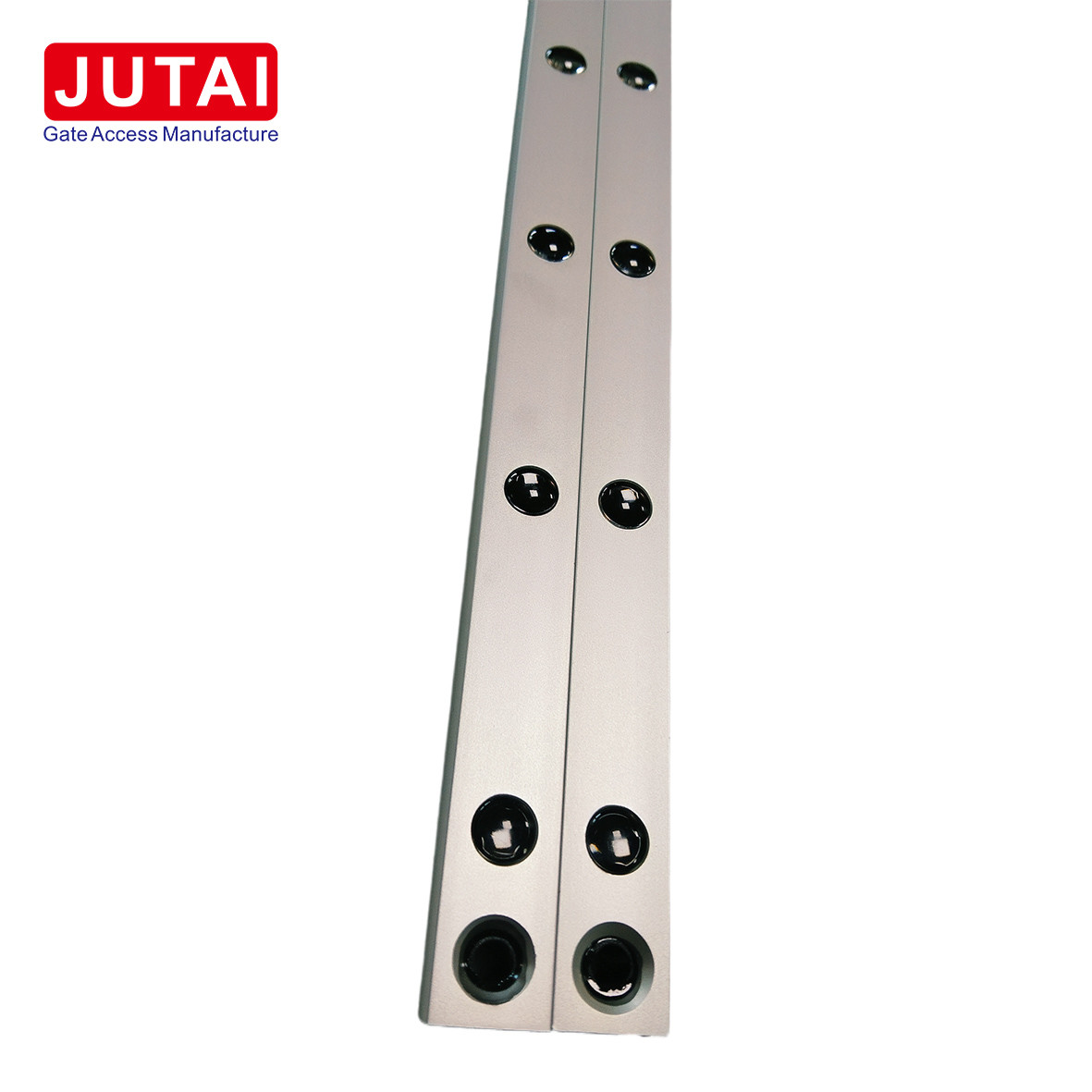

Safety Light Curtain With Blanking Function For Industrial Garage Doors

Place of Origin	China
Brand Name	JUTAI
Certification	CE
Model Number	CL10-8L
Minimum Order Quantity	1
Price	Negotiation
Packaging Details	Cartoon
Delivery Time	5 - 8 working days
Payment Terms	T/T, L/C, D/A, D/P, Western Union, Paypal, , MoneyGram, Alipay
Supply Ability	1000 pieces per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

IP Rating	IP67	Function	Blanking
Sensing Distance	8m	Material	Aluminum Alloy
Feature	Corrosion Resistant	Power Voltage	DC12-24V
Operating Temperature	-20~60℃	Operating Current	<50mA
Output	No/Nc, COM	Working Current	<20mA@DC12V
Specification	10002115 Mm
Highlight	Safety Light Curtain , Industrial Garage Doors Light Curtain , Blanking Function Light Curtain

Leave a Message

Product Description

Industrial Door Safety Solutions | IP67 Waterproof Light Curtain Sensor
Engineered for Harsh Environments by Shenzhen JUTAI Comm Co., Ltd.

Product Overview

JUTAI's IP67 Waterproof Safety Light Curtain Sensor delivers cutting-edge safety protection for industrial applications exposed to dust, water, and extreme temperatures. With 10 customizable models, this sensor ensures reliable performance in manufacturing plants, cold storage facilities, and automated production lines. CE-certified and built for durability, it combines advanced technology with versatile design to meet global safety standards.

Model Specifications

Choose from 10 configurations with beam counts (4-16) and lengths (500mm-2500mm):

Series	Model	Length	Beam Count	Detection Range
CL05	CL05-4L	500mm	4	Up to 10m
	CL05-8L	500mm	8	Up to 10m
CL10	CL10-8L	1000mm	8	Up to 10m
	CL10-16L	1000mm	16	Up to 10m
CL15	CL15-8L	1500mm	8	Up to 10m
	CL15-16L	1500mm	16	Up to 10m
CL20	CL20-8L	2000mm	8	Up to 10m
	CL20-16L	2000mm	16	Up to 10m
CL25	CL25-8L	2500mm	8	Up to 10m
	CL25-16L	2500mm	16	Up to 10m

Key Features

IP67-rated Waterproof & Dustproof
- Sealed aluminum alloy housing resists water jets and dust ingress.
- Ideal for cold storage (-25°C), food processing, and outdoor applications.
Dual Operating Modes
- Blanking Mode: For door gap installation – detects obstacles sequentially during closure.
- Normal Mode: Full-area monitoring for instant door reopening on beam blockage.
Precision Detection
- 100mm beam spacing ensures accurate object recognition.
- ≤20ms response time for high-speed applications.
Energy-efficient Design
- Low power consumption (<=4W) reduces operational costs.
Customizable Beam Options
- 4-16 beams to match varying detection needs.

Technical Parameters

Parameter	Specification
Certification	CE (CTC142H1007801SC)
Voltage	24V DC ±10%
Humidity	95% non-condensing
Material	High-impact aluminum alloy
Output Types	NPN/PNP dual options
Mounting	Adjustable bracket for easy alignment

Applications

Designed for critical safety in:

Industrial Doors: Rolling, sectional, high-speed, and fire-rated doors.
Cold Storage: Maintains performance in sub-zero environments.
Automation Systems: AGVs, robotic arms, and conveyor lines.

Benefits:

Prevents crush injuries and equipment damage.
Ensures compliance with international safety standards.
Reduces downtime through reliable obstacle detection.

Why Choose JUTAI?

10+ Years Experience: Leading provider of industrial safety solutions.
Customization: Free site analysis and tailored configurations.
Global Support: 24/7 technical assistance and fast installation guidance.
