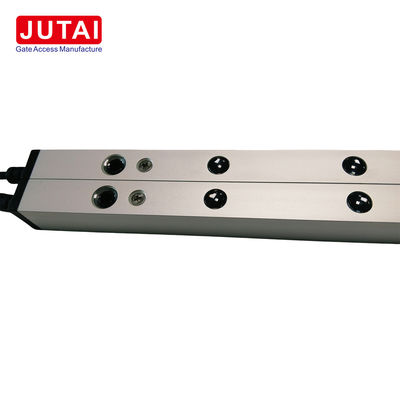

IP67 Rated 30ms Response Safety Light Curtain For Industrial Cold Storage Doors

Product Introduction

Available Models

Key Features

1. Superior IP67 Waterproof and Dustproof Design
   • Constructed with a sealed, high-impact aluminum alloy housing, it effectively repels water jets and dust intrusion.
   • Ideal for use in cold storage environments as low as -25°C, food processing facilities, and other demanding outdoor and indoor settings.
2. Dual Adjustable Operating Modes
   • Blanking Mode: Suitable for installation within door gaps. During the door closing process, it detects beam blockages one by one. Upon detecting an obstacle, it promptly triggers the door to reopen.
   • Normal Mode: Installed on either side of the door, any blockage of the beams instantly activates a door-opening signal, ensuring maximum safety.
3. High Precision Object Detection
   • With a beam spacing of 100mm, it enables accurate identification of objects.
   • Features a rapid response time of ≤20 ms, making it suitable for high-speed applications.
4. Energy-Efficient Operation
   • Its low power consumption of ≤4W helps in reducing overall operational costs.
5. Versatile Beam Configuration Options
   • Allows you to select from 4 to 16 beams, catering to different detection area requirements.

Technical Specifications

Applications and Benefits

1. Industrial Doors Applications
   • Rolling Doors: Commonly used in warehouses and factories for quick access. The IP67 light curtain prevents accidents such as being trapped or hit by the moving door by immediately reopening the door when an obstruction is detected.
   • Sectional Doors: These vertically opening doors, often used for heavy machinery access, are safeguarded by the sensor, which detects any person or object in the door's path, preventing closure and potential harm.
   • High-Speed Doors: Found in cold storage, pharmaceutical, and food processing plants, high-speed doors are protected by the IP67 safety light curtain. It stops and reopens the door if anything blocks the beams during the closing process, protecting operators and machinery.
   • Foldable Doors: In areas with limited space, the IP67 light curtain ensures worker safety by preventing injuries caused by the rapid movement of foldable doors in high-traffic areas.
   • Automatic Sliding Doors: Widely used in industrial and commercial areas, the sensor accurately detects objects or people in the door's path, halting the door's movement to avoid collisions.
   • Fire Doors: In industrial settings, the IP67 light curtain enables fire doors to close automatically without endangering people or vehicles. It detects objects in the path to ensure safe closure.
   • Cold Storage Doors (Cold Rooms): Operating flawlessly in extremely cold environments down to -25°C, the sensor is unaffected by moisture, condensation, or fog, making it a reliable option for cold storage where other sensors may fail due to temperature or humidity changes.
2. Other Application Scenarios
   • Material Handling Systems (Conveyor Systems): Protects the operation of material handling systems by preventing accidental collisions between workers, machinery, and moving parts, creating a safer working environment.
   • Robotic Arms: In industries with automated robotics, the sensor shields workers from the rapid movement of robotic arms on the production line. It stops the robotic arm immediately when a person or object crosses its beam.
   • Automated Guided Vehicles (AGVs): In dynamic environments like warehouses and manufacturing plants, the IP67 safety light curtain ensures the safe movement of AGVs, helping them avoid collisions with obstacles and people.
   • Packaging Equipment: High-speed packaging machinery is made safer for workers as the safety light curtain detects any obstruction and halts the packaging system, protecting both operators and the machinery.
