IP67 Waterproof Safety Light Curtain For Industrial Folding Doors With Blanking
Product Details
| IP Rating | IP67 | Function | Blanking |
|---|---|---|---|
| Sensing Distance | 8m | Material | Aluminum Alloy |
| Feature | Corrosion Resistant | Power Voltage | DC12-24V |
| Operating Temperature | -20~60℃ | Operating Current | <50mA |
| Output | No/Nc, COM | Working Current | <20mA@DC12V |
| Specification | 2000*21*15 Mm | ||
| Highlight | IP67 waterproof safety light curtain,industrial folding door light curtain,light curtain with blanking function |
||
Product Description

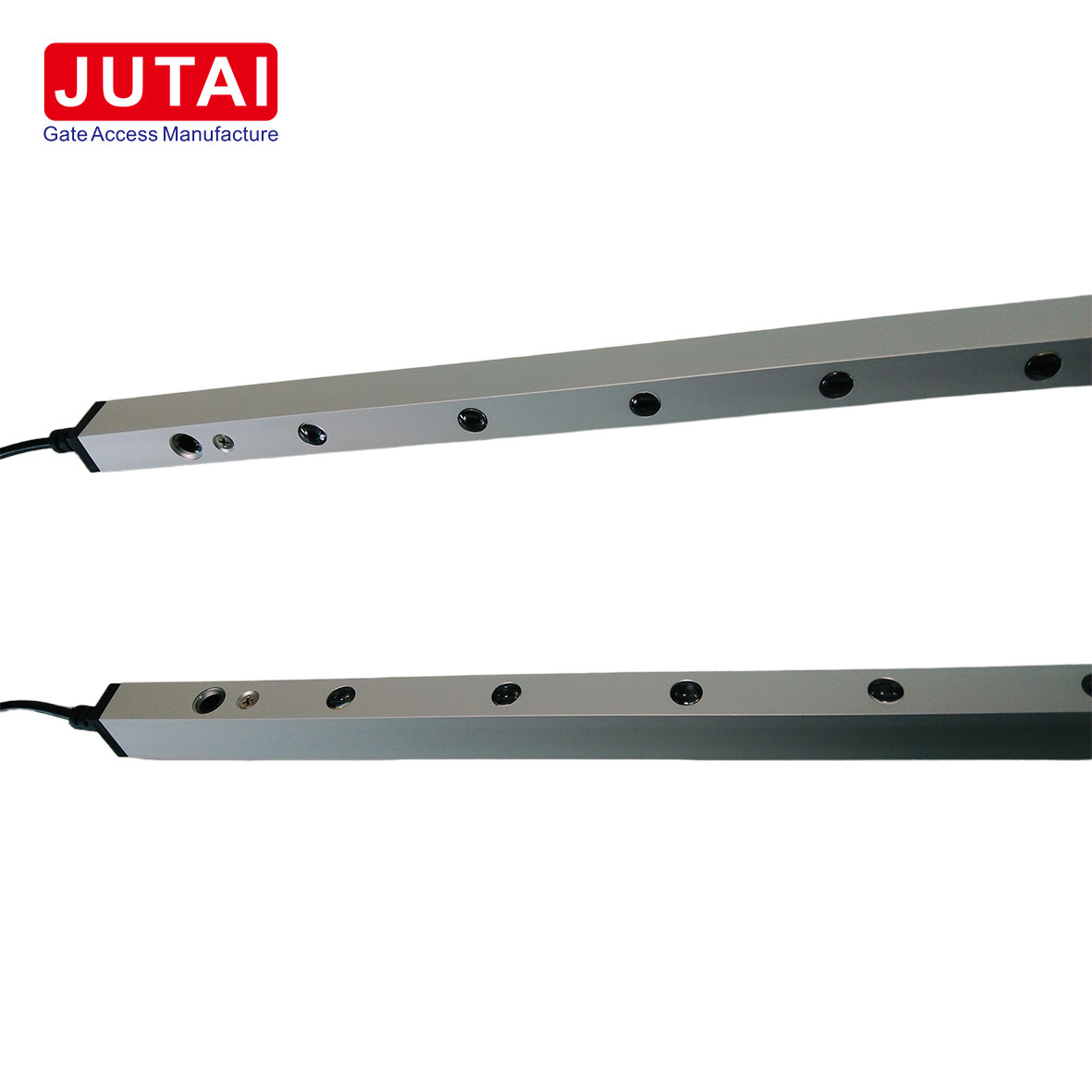

IP67 Waterproof Safety Light Curtain For Industrial Folding Doors With Blanking
Discover the Unrivaled IP67 Waterproof Safety Light Curtain Sensor by Shenzhen JUTAI Comm Co., Ltd. - Your Indispensable Industrial Safety Solution
Unparalleled Protection for Challenging Industrial Landscapes
Engineered with meticulous precision by Shenzhen JUTAI Comm Co., Ltd., the IP67 Waterproof Safety Light Curtain Sensor stands as a paragon of reliability in industrial settings plagued by dust, moisture, and strenuous working conditions. Thanks to its top-tier IP67 waterproof rating, this sensor delivers seamless performance, making it an absolute necessity for manufacturing plants, warehouses, cold storage facilities, and highly automated production lines.
Diverse Model Selection
Understanding the vast and varied nature of industrial safety requirements, we offer an extensive lineup of 10 distinct models for this safety light curtain. Each model provides remarkable flexibility in terms of beam quantity and length, guaranteeing a perfect fit for every conceivable industrial application.
| Model | Length | Beam Quantity | Detection Range |
|---|---|---|---|
| CL05-4L | 500mm | 4 beams | Up to 8 meters* |
| CL05-8L | 500mm | 8 beams | Up to 8 meters* |
| CL10-8L | 1000mm | 8 beams | Up to 8 meters* |
| CL10-16L | 1000mm | 16 beams | Up to 8 meters* |
| CL15-8L | 1500mm | 8 beams | Up to 8 meters* |
| CL15-16L | 1500mm | 16 beams | Up to 8 meters* |
| CL20-8L | 2000mm | 8 beams | Up to 8 meters* |
| CL20-16L | 2000mm | 16 beams | Up to 8 meters* |
| CL25-8L | 2500mm | 8 beams | Up to 8 meters* |
| CL25-16L | 2500mm | 16 beams | Up to 8 meters* |
*Please note that the detection range may vary based on environmental factors and the number of beams.
Distinctive Features
- Robust IP67-Rated Waterproof and Dustproof Construction: Encased within a hermetically-sealed, high-strength aluminum alloy housing, this sensor is impervious to water jets and dust ingress. It thrives in cold storage environments as cold as -25°C, as well as in food processing plants and other demanding indoor and outdoor industrial scenarios.
- Dual-Function Operational Modes for Maximum Flexibility:
- Blanking Mode: Ideal for installation within door gaps. During the door-closing process, it methodically detects beam blockages one by one. The moment an obstacle is detected, it promptly triggers the door to reverse its closing motion.
- Normal Mode: When installed on either side of the door, any interruption of the beams instantaneously activates a door-opening signal, ensuring peak safety levels.
- Ultra-Precise Object Detection Capabilities: With a beam spacing of precisely 100mm, it can accurately identify objects, effectively curbing the occurrence of accidents. Its lightning-fast response time of ≤20 ms makes it an ideal choice for high-speed industrial operations.
- Energy-Efficient Design for Cost-Conscious Operations: Consuming a mere ≤4W of power, it significantly contributes to reducing long-term operational costs for businesses.
- Customizable Beam Configurations to Suit Your Needs: You have the freedom to choose from 4 to 16 beams, depending on the specific detection area requirements of your industrial setup.
Technical Specifications
| Product Type | Safety Light Curtain Sensor |
| Waterproof Rating | IP67 (Fully dustproof and waterproof) |
| Working Voltage | 24V DC ± 10% |
| Power Consumption | ≤ 4W |
| Response Time | ≤ 20 ms |
| Beam Count (Example) | 8 beams (CL10-8L) |
| Detection Range | Up to 8 meters |
| Beam Spacing | 100mm |
| Operating Temperature | -25°C to +75°C |
| Relative Humidity | 95% (non-condensing) |
| Material | High-impact aluminum alloy housing |
| Output Type | NPN or PNP output options available |
| Response Type | Light-based (object detection) |
| Mounting Type | Adjustable mounting bracket |
| Safety Standards | CE certified (Certificate No.: CTC142H1007801SC) |
Applications and Advantages
Industrial Door Applications
- Rolling Doors: Commonly employed in warehouses and factories for rapid access, rolling doors are made significantly safer with the IP67 light curtain. It can detect any obstruction during door closing and immediately reopen the door, thereby preventing accidents.
- Sectional Doors: These vertically-opening doors, frequently used for heavy machinery access, are safeguarded by the sensor. It can detect any person or object in the door's path, preventing the door from closing and averting potential damage or injury.
- High-Speed Doors: Found in cold storage, pharmaceutical, and food processing plants, high-speed doors are protected by the IP67 safety light curtain. It stops and reopens the door if the beams are blocked during the closing process, safeguarding operators and machinery.
- Foldable Doors: In areas with limited space, the IP67 light curtain ensures the safety of workers by preventing injuries caused by the rapid movement of foldable doors in high-traffic areas.
- Automatic Sliding Doors: Widely used in industrial and commercial areas, the sensor can accurately detect objects or people in the door's path, halting the door to avoid collisions.
- Fire Doors: In industrial settings, the IP67 light curtain enables fire doors to close safely, detecting any objects in the path and ensuring that no harm befalls people or vehicles.
- Cold Storage Doors (Cold Rooms): The sensor functions flawlessly in extremely cold environments down to -25°C, remaining unaffected by moisture, condensation, or fog, making it a highly reliable choice for cold storage facilities.
Other Application Scenarios
- Material Handling Systems (Conveyor Systems): The sensor safeguards the operation of material handling systems by preventing collisions between workers, machinery, and moving parts, fostering a safer working environment.
- Robotic Arms: In automated industries, the sensor shields workers from the rapid movement of robotic arms. It immediately stops the robotic arm when a person or object crosses its beam.
- Automated Guided Vehicles (AGVs): In dynamic warehouse and manufacturing plant environments, the IP67 safety light curtain ensures the safe movement of AGVs, helping them avoid collisions with obstacles and people.
- Packaging Equipment: High-speed packaging machinery is made safer for workers with the safety light curtain. It detects any obstruction and halts the packaging system, protecting both operators and the equipment.
Why Choose Shenzhen JUTAI Comm Co., Ltd.?
- Decades of Industry Leadership: With over 10 years of experience in the sensor industry, we offer robust, efficient, and cost-effective industrial safety solutions.
- Fully Customized Offerings: We provide complimentary site evaluations and tailor-made product solutions to meet your unique industrial requirements, ensuring a seamless fit.
- Round-the-Clock Customer Support: Our dedicated customer support team is available 24/7 to answer your technical queries and assist with installation-related concerns, providing prompt and reliable service.
