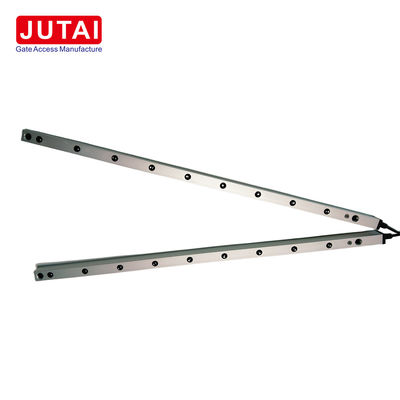

Safety Light Curtain Sensor For Industrial Gates With 30ms Response And IP67 Rating
Product Details
| IP Rating | IP67 | Function | Blanking |
|---|---|---|---|
| Sensing Distance | 8m | Material | Aluminum Alloy |
| Feature | Corrosion Resistant | Power Voltage | DC12-24V |
| Operating Temperature | -20~60℃ | Operating Current | <50mA |
| Output | No/Nc, COM | Working Current | <20mA@DC12V |
| Specification | 2000*21*15 Mm | ||
| Highlight | industrial safety light curtain,IP67 rated light curtain sensor,30ms response light curtain |
||
Product Description
Safety Light Curtain Sensor For Industrial Gates With 30ms Response And IP67 Rating
Unparalleled Protection for Challenging Industrial Environments
Engineered with meticulous precision by Shenzhen JUTAI Comm Co., Ltd., the IP67 Waterproof Safety Light Curtain Sensor delivers reliable performance in industrial settings plagued by dust, moisture, and strenuous working conditions. With its top-tier IP67 waterproof rating, this sensor is essential for manufacturing plants, warehouses, cold storage facilities, and automated production lines.
Comprehensive Model Selection
We offer an extensive lineup of 10 distinct models with remarkable flexibility in beam quantity and length to guarantee a perfect fit for every industrial application.
| Model | Length | Beam Quantity | Detection Range |
|---|---|---|---|
| CL05-4L | 500mm | 4 beams | Up to 8 meters* |
| CL05-8L | 500mm | 8 beams | Up to 8 meters* |
| CL10-8L | 1000mm | 8 beams | Up to 8 meters* |
| CL10-16L | 1000mm | 16 beams | Up to 8 meters* |
| CL15-8L | 1500mm | 8 beams | Up to 8 meters* |
| CL15-16L | 1500mm | 16 beams | Up to 8 meters* |
| CL20-8L | 2000mm | 8 beams | Up to 8 meters* |
| CL20-16L | 2000mm | 16 beams | Up to 8 meters* |
| CL25-8L | 2500mm | 8 beams | Up to 8 meters* |
| CL25-16L | 2500mm | 16 beams | Up to 8 meters* |
*Detection range may vary based on environmental factors and number of beams.
Key Product Features
- Robust IP67-Rated Construction: Hermetically-sealed aluminum alloy housing impervious to water jets and dust ingress. Operates in temperatures as low as -25°C.
- Dual-Function Operational Modes: Blanking Mode for door gap installation and Normal Mode for side installation with instant door-opening signal activation.
- Ultra-Precise Object Detection: 100mm beam spacing with lightning-fast response time of ≤20ms for high-speed industrial operations.
- Energy-Efficient Design: Consumes only ≤4W of power, reducing long-term operational costs.
- Customizable Beam Configurations: Choose from 4 to 16 beams to suit specific detection area requirements.
Technical Specifications
| Parameter | Description |
|---|---|
| Product Type | Safety Light Curtain Sensor |
| Waterproof Rating | IP67 (Fully dustproof and waterproof) |
| Working Voltage | 24V DC ± 10% |
| Power Consumption | ≤ 4W |
| Response Time | ≤ 20 ms |
| Beam Count (CL10-8L example) | 8 beams |
| Detection Range | Up to 8 meters |
| Beam Spacing | 100mm |
| Operating Temperature | -25°C to +75°C |
| Relative Humidity | 95% (non-condensing) |
| Material | High-impact aluminum alloy housing |
| Output Type | NPN or PNP output options |
| Response Type | Light-based (object detection) |
| Mounting Type | Adjustable mounting bracket |
| Safety Standards | CE certified (Certificate No.: CTC142H1007801SC) |
Industrial Applications
Industrial Door Applications
- Rolling Doors: Detects obstructions during closing and immediately reopens doors in warehouses and factories
- Sectional Doors: Safeguards vertically-opening doors used for heavy machinery access
- High-Speed Doors: Protects doors in cold storage, pharmaceutical, and food processing plants
- Foldable Doors: Ensures safety in areas with limited space and high traffic
- Automatic Sliding Doors: Accurately detects objects or people to avoid collisions
- Fire Doors: Enables safe closing while detecting objects in the path
- Cold Storage Doors: Functions flawlessly in extremely cold environments down to -25°C
Other Application Scenarios
- Material Handling Systems: Prevents collisions between workers, machinery, and moving parts
- Robotic Arms: Immediately stops robotic arms when a person or object crosses the beam
- Automated Guided Vehicles (AGVs): Ensures safe movement in dynamic warehouse environments
- Packaging Equipment: Detects obstructions and halts high-speed packaging systems
Why Choose Shenzhen JUTAI Comm Co., Ltd.?
- Decades of Industry Leadership: Over 10 years of experience in sensor technology
- Fully Customized Offerings: Complimentary site evaluations and tailored product solutions
- Round-the-Clock Support: 24/7 customer support for technical queries and installation assistance
