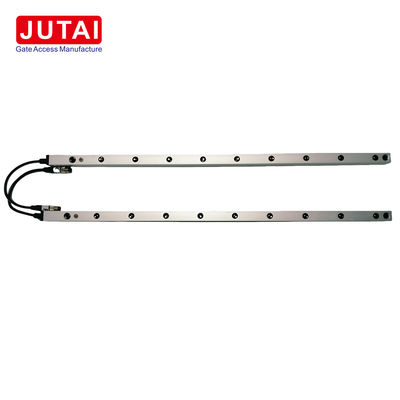

IP67 Waterproof Safety Light Curtain With Blanking For Industrial Garage Doors 30ms Response

Place of Origin	China
Brand Name	JUTAI
Certification	CE
Model Number	CL20-8L
Minimum Order Quantity	1
Price	Negotiation
Packaging Details	Cartoon
Delivery Time	5 - 8 working days
Payment Terms	T/T, L/C, D/A, D/P, Western Union, Paypal, , MoneyGram, Alipay
Supply Ability	1000 pieces per month

IP Rating

IP67

Function

Blanking

Sensing Distance

Material

Aluminum Alloy

Feature

Corrosion Resistant

Power Voltage

DC12-24V

Operating Temperature

-20~60℃

Operating Current

<50mA

Output

No/Nc, COM

Working Current

<20mA@DC12V

Specification

2000*21*15 Mm

Highlight

30ms Response Safety Light Curtain

Industrial Garage Doors Safety Light Curtain

IP67 Waterproof Safety Light Curtain

Ultimate IP67 Waterproof Safety Light Curtain Sensor by Shenzhen JUTAI Comm Co., Ltd.

Name: IP67 Waterproof Safety Light Curtain With Blanking For Industrial Garage Doors 30ms Response
Brand: Shenzhen Jutai Comm Co., Ltd.
SKU: CL20-8L
Availability: InStock

Reliable Protection for Industrial Hazards

Product Summary
Engineered for harsh environments, our IP67 - rated safety light curtain sensor ensures continuous operation in dust, moisture, and extreme temperatures. Ideal for factories, warehouses, cold storage, and automation lines.

Model Specifications

Model	Length	Beams	Detection Range
CL05 - 4L	500mm	4	Up to 8m*
CL05 - 8L	500mm	8	Up to 8m*
CL10 - 8L	1000mm	8	Up to 8m*
CL10 - 16L	1000mm	16	Up to 8m*
CL15 - 8L	1500mm	8	Up to 8m*
CL15 - 16L	1500mm	16	Up to 8m*
CL20 - 8L	2000mm	8	Up to 8m*
CL20 - 16L	2000mm	16	Up to 8m*
CL25 - 8L	2500mm	8	Up to 8m*
CL25 - 16L	2500mm	16	Up to 8m*

*Environmental factors may affect range.

Key Advantages

IP67 Waterproof/Dustproof: Sealed aluminum housing resists water jets and dust.
Dual Modes:
- Blanking Mode: Detects obstacles during door closure.
- Normal Mode: Instant door - open signal on beam blockage.
Precision Detection: 100mm beam spacing with ≤20ms response.
Energy - Efficient: ≤4W power consumption.
Customizable: 4 - 16 beams for varying coverage needs.

Technical Details

Voltage: 24V DC ±10%
Temperature Range: -25°C to +75°C
Certification: CE (CTC142H1007801SC)

Applications

Industrial Doors: Rolling, sectional, high - speed, cold storage, fire doors.
Automation: Conveyor systems, robotic arms, AGVs, packaging machinery.
