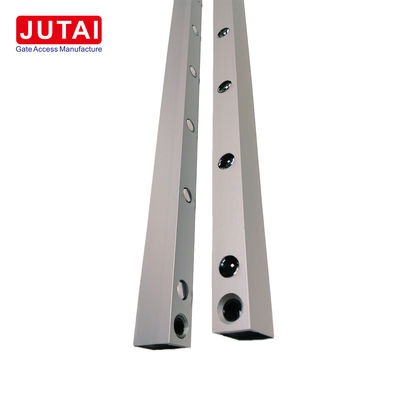

Safety Light Curtain IP67 Blanking Industrial Cold Storage Door 30ms Fast Response

Place of Origin	China
Brand Name	JUTAI
Certification	CE
Model Number	CL20-8L
Minimum Order Quantity	1
Price	Negotiation
Packaging Details	Cartoon
Delivery Time	5 - 8 working days
Payment Terms	T/T, L/C, D/A, D/P, Western Union, Paypal, , MoneyGram, Alipay
Supply Ability	1000 pieces per month

IP Rating

IP67

Function

Blanking

Sensing Distance

Material

Aluminum Alloy

Feature

Corrosion Resistant

Power Voltage

DC12-24V

Operating Temperature

-20~60℃

Operating Current

<50mA

Output

No/Nc, COM

Working Current

<20mA@DC12V

Specification

2000*21*15 Mm

Highlight

IP67 Blanking Light Curtain

30ms Fast Response Light Curtain

Industrial Cold Storage Door Light Curtain

Industrial Safety with Shenzhen JUTAI Comm Co., Ltd.'s Premium IP67 Waterproof Safety Light Curtain Sensor

Name: Safety Light Curtain IP67 Blanking Industrial Cold Storage Door 30ms Fast Response
Brand: Shenzhen Jutai Comm Co., Ltd.
SKU: CL20-8L
Availability: InStock

Unmatched Protection for the Most Demanding Environments

Product Overview

In the fast - paced and hazard - filled industrial landscape, safety is non - negotiable. Shenzhen JUTAI Comm Co., Ltd. introduces the IP67 Waterproof Safety Light Curtain Sensor—a cutting - edge solution engineered to deliver uncompromising performance in dusty, wet, and extreme - temperature conditions. With its IP67 rating, this sensor resists water jets, dust, and corrosion, making it indispensable for manufacturing plants, logistics centers, cold storage facilities, and automated production lines globally.

Extensive Model Selection

Choose from 10 precision - designed models offering customizable beam configurations (4–16 beams) and lengths (500mm–2500mm) to suit any application:

Model	Length	Beam Quantity	Detection Range	Beam Spacing	Power Consumption	Response Time
CL05 - 4L	500mm	4 beams	Up to 8 meters*	100mm	≤4W	≤20ms
CL05 - 8L	500mm	8 beams	Up to 8 meters*	100mm	≤4W	≤20ms
CL10 - 8L	1000mm	8 beams	Up to 8 meters*	100mm	≤4W	≤20ms
CL10 - 16L	1000mm	16 beams	Up to 8 meters*	100mm	≤4W	≤20ms
CL15 - 8L	1500mm	8 beams	Up to 8 meters*	100mm	≤4W	≤20ms
CL15 - 16L	1500mm	16 beams	Up to 8 meters*	100mm	≤4W	≤20ms
CL20 - 8L	2000mm	8 beams	Up to 8 meters*	100mm	≤4W	≤20ms
CL20 - 16L	2000mm	16 beams	Up to 8 meters*	100mm	≤4W	≤20ms
CL25 - 8L	2500mm	8 beams	Up to 8 meters*	100mm	≤4W	≤20ms
CL25 - 16L	2500mm	16 beams	Up to 8 meters*	100mm	≤4W	≤20ms

*Environmental factors may affect detection range.

Key Features & Benefits

1. Rugged IP67 Construction

Hermetically sealed aluminum alloy housing withstands water immersion (IPX7) and dust (IPX6).
Operates flawlessly in temperatures from -25°C to +75°C, ideal for cold storage (-25°C) and outdoor use.

2. Dual - Mode Operation

Blanking Mode: Installed in door gaps to detect sequential beam blockages during closure, triggering instant door reversal.
Normal Mode: Mounted on door sides for full - width protection, activating immediate door - open signals on obstruction.

3. Advanced Detection Technology

100mm Beam Spacing: Detects objects as small as 50mm with pinpoint accuracy.
CE Certified: Complies with EN 61496 safety standards for machinery.

4. Energy Efficiency

Low power consumption (<=4W) reduces long - term operational costs and environmental impact.

Comprehensive Applications

Industrial Door Systems

Rolling Doors: Prevents entrapment in warehouses and factories.
High - Speed Doors: Stops abrupt closure in cold storage and pharmaceutical plants.
Fire Doors: Ensures safe automatic closure without endangering personnel.
Cold Storage Doors: Resists condensation and fog in sub - zero environments.

Automation & Material Handling

Conveyor Systems: Protects operators from moving machinery.
Robotic Arms: Triggers emergency stops in hazardous zones.
AGVs: Enhances navigation safety in dynamic warehouse environments.

Heavy Machinery & Equipment

Packaging Lines: Prevents jams and operator injuries.
Industrial Gates: Safeguards vehicle and pedestrian traffic in loading docks.

Technical Specifications

Parameter	Specification
Product Type	Safety Light Curtain Sensor
Waterproof Rating	IP67 (Dustproof & Water - Resistant)
Working Voltage	24V DC ±10%
Material	High - Impact Aluminum Alloy
Mounting Options	Adjustable Brackets (Vertical/Horizontal)
Safety Standards	CE, EN 61496 - 1/-2
Warranty	2 - Year Comprehensive Coverage

Why Partner with JUTAI Comm Co., Ltd.?

10+ Years of Expertise: Leading the sensor industry with innovative safety solutions.
Customization Services: Free site audits and tailored configurations for optimal performance.
Global Support: 24/7 technical assistance and a worldwide distribution network.
Proven Reliability: Trusted by Fortune 500 companies and ISO - certified facilities.

Customer Success Stories

1. Cold Storage Giant: Reliable Operation at -25°C
"JUTAI’s sensor eliminated downtime in our cold storage facility. The IP67 rating ensured reliable operation even at -25°C."
— Michael Chen, Warehouse Manager, Leading Cold Chain Logistics Provider

2. Automotive Manufacturing Leader: Seamless Integration
"The dual - mode feature allowed seamless integration into our existing infrastructure. Installation was effortless!"
— Lisa Wang, Safety Engineer, Global Automotive Manufacturer

3. Pharmaceutical Plant: Compliance & Efficiency
"JUTAI’s CE - certified sensor met our safety standards while reducing maintenance costs by 30%."
— David Li, Plant Director, International Pharmaceutical Corporation

4. E - commerce Warehouse: Accident - Free Operations
"After installing JUTAI’s 16 - beam sensor, we saw a 100% reduction in conveyor - related incidents."
— Sarah Zhang, Safety Officer, Top E - commerce Fulfillment Center

5. Heavy Machinery Manufacturer: Enhanced Operator Safety
"The sensor’s rapid response time (<=20ms) protected workers from robotic arm collisions during high - speed operations."
— John Wu, Engineering Manager, Industrial Equipment Producer

6. Food Processing Plant: Hygienic & Durable
"The IP67 aluminum housing resists water in our food processing lines while maintaining accuracy."
— Emily Chen, Quality Assurance Manager, Global Food & Beverage Company

7. Automated Warehouse: AGV Navigation Safety
"JUTAI’s sensor improved AGV collision avoidance, reducing downtime by 25%."
— Kevin Liu, Logistics Director, Automated Storage Solutions Provider

8. Fire & Safety Provider: Fire Door Compliance
"The sensor ensures fire doors close safely without compromising personnel safety during drills."
— Jason Zhou, Technical Lead, Fire Protection Systems Company
