IP67 Waterproof CE Certified Safety Light Curtain Industrial Doors Cold Storage Doors
Product Details
| IP Rating | IP67 | Function | Blanking |
|---|---|---|---|
| Sensing Distance | 8m | Material | Aluminum Alloy |
| Feature | Corrosion Resistant | Power Voltage | DC12-24V |
| Operating Temperature | -20~60℃ | Operating Current | <50mA |
| Output | No/Nc, COM | Working Current | <20mA@DC12V |
| Specification | 2000*21*15 Mm | ||
| Highlight | CE Certified Safety Light Curtain,IP67 Waterproof Safety Light Curtain,Industrial Doors Safety Light Curtain |
||
Product Description

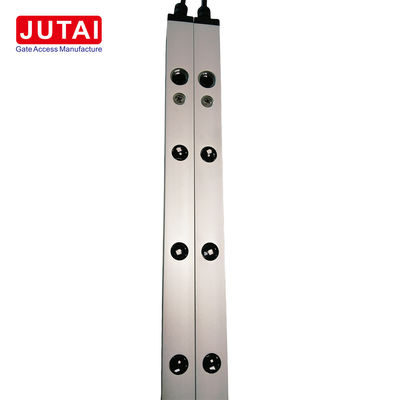

IP67 Waterproof CE Certified Safety Light Curtain for Industrial & Cold Storage Doors
Industrial Safety Redefined: Shenzhen JUTAI Comm Co., Ltd.'s IP67 Waterproof Safety Light Curtain Sensor delivers uncompromising protection for harsh industrial environments.
In today's high-velocity industrial ecosystems, where safety hazards are ever-present, Shenzhen JUTAI Comm Co., Ltd. presents its state-of-the-art IP67 Waterproof Safety Light Curtain Sensor—a ruggedized solution built to excel in dusty, humid, and extreme-temperature conditions. Boasting an IP67 certification, this sensor provides robust defense against water immersion, dust ingress, and corrosive elements, positioning it as a critical asset for manufacturing hubs, logistics complexes, cold storage warehouses, and automated production networks worldwide.
Diverse Model Portfolio
Select from 10 precision-engineered models featuring configurable beam setups (4-16 beams) and adaptable lengths (500mm-2500mm), ensuring seamless integration across a spectrum of applications:
| Model | Length | Beam Quantity | Detection Range | Beam Spacing | Power Consumption | Response Time |
|---|---|---|---|---|---|---|
| CL05-4L | 500mm | 4 beams | Up to 8 meters* | 100mm | ≤4W | ≤20ms |
| CL05-8L | 500mm | 8 beams | Up to 8 meters* | 100mm | ≤4W | ≤20ms |
| CL10-8L | 1000mm | 8 beams | Up to 8 meters* | 100mm | ≤4W | ≤20ms |
| CL10-16L | 1000mm | 16 beams | Up to 8 meters* | 100mm | ≤4W | ≤20ms |
| CL15-8L | 1500mm | 8 beams | Up to 8 meters* | 100mm | ≤4W | ≤20ms |
| CL15-16L | 1500mm | 16 beams | Up to 8 meters* | 100mm | ≤4W | ≤20ms |
| CL20-8L | 2000mm | 8 beams | Up to 8 meters* | 100mm | ≤4W | ≤20ms |
| CL20-16L | 2000mm | 16 beams | Up to 8 meters* | 100mm | ≤4W | ≤20ms |
| CL25-8L | 2500mm | 8 beams | Up to 8 meters* | 100mm | ≤4W | ≤20ms |
| CL25-16L | 2500mm | 16 beams | Up to 8 meters* | 100mm | ≤4W | ≤20ms |
*Environmental factors may affect detection range.
Key Features & Benefits
- Rugged IP67 Construction: Hermetically sealed aluminum alloy housing withstands water immersion (IPX7) and dust (IPX6). Operates flawlessly in temperatures from -25°C to +75°C, ideal for cold storage (-25°C) and outdoor use.
- Dual-Mode Operation: Blanking Mode installed in door gaps detects sequential beam blockages during closure, triggering instant door reversal. Normal Mode mounted on door sides provides full-width protection, activating immediate door-open signals on obstruction.
- Advanced Detection Technology: 100mm Beam Spacing detects objects as small as 50mm with pinpoint accuracy. CE Certified and complies with EN 61496 safety standards for machinery.
- Energy Efficiency: Low power consumption (≤4W) reduces long-term operational costs and environmental impact.
Comprehensive Applications
Industrial Door Systems
- Rolling Doors: Prevents entrapment in warehouses and factories
- High-Speed Doors: Stops abrupt closure in cold storage and pharmaceutical plants
- Fire Doors: Ensures safe automatic closure without endangering personnel
- Cold Storage Doors: Resists condensation and fog in sub-zero environments
Automation & Material Handling
- Conveyor Systems: Protects operators from moving machinery
- Robotic Arms: Triggers emergency stops in hazardous zones
- AGVs: Enhances navigation safety in dynamic warehouse environments
Heavy Machinery & Equipment
- Packaging Lines: Prevents jams and operator injuries
- Industrial Gates: Safeguards vehicle and pedestrian traffic in loading docks
Technical Specifications
| Product Type | Safety Light Curtain Sensor |
| Waterproof Rating | IP67 (Dustproof & Water-Resistant) |
| Working Voltage | 24V DC ±10% |
| Material | High-Impact Aluminum Alloy |
| Mounting Options | Adjustable Brackets (Vertical/Horizontal) |
| Safety Standards | CE, EN 61496-1/-2 |
| Warranty | 2-Year Comprehensive Coverage |
Why Partner with JUTAI Comm Co., Ltd.?
- 10+ Years of Expertise: Leading the sensor industry with innovative safety solutions
- Customization Services: Free site audits and tailored configurations for optimal performance
- Global Support: 24/7 technical assistance and a worldwide distribution network
- Proven Reliability: Trusted by Fortune 500 companies and ISO-certified facilities
Customer Success Stories
Cold Storage Giant: Reliable Operation at -25°C
"JUTAI's sensor eliminated downtime in our cold storage facility. The IP67 rating ensured reliable operation even at -25°C."
— Michael Chen, Warehouse Manager, Leading Cold Chain Logistics Provider
"JUTAI's sensor eliminated downtime in our cold storage facility. The IP67 rating ensured reliable operation even at -25°C."
— Michael Chen, Warehouse Manager, Leading Cold Chain Logistics Provider
Automotive Manufacturing Leader: Seamless Integration
"The dual-mode feature allowed seamless integration into our existing infrastructure. Installation was effortless!"
— Lisa Wang, Safety Engineer, Global Automotive Manufacturer
"The dual-mode feature allowed seamless integration into our existing infrastructure. Installation was effortless!"
— Lisa Wang, Safety Engineer, Global Automotive Manufacturer
Pharmaceutical Plant: Compliance & Efficiency
"JUTAI's CE-certified sensor met our safety standards while reducing maintenance costs by 30%."
— David Li, Plant Director, International Pharmaceutical Corporation
"JUTAI's CE-certified sensor met our safety standards while reducing maintenance costs by 30%."
— David Li, Plant Director, International Pharmaceutical Corporation
E-commerce Warehouse: Accident-Free Operations
"After installing JUTAI's 16-beam sensor, we saw a 100% reduction in conveyor-related incidents."
— Sarah Zhang, Safety Officer, Top E-commerce Fulfillment Center
"After installing JUTAI's 16-beam sensor, we saw a 100% reduction in conveyor-related incidents."
— Sarah Zhang, Safety Officer, Top E-commerce Fulfillment Center
Heavy Machinery Manufacturer: Enhanced Operator Safety
"The sensor's rapid response time (≤20ms) protected workers from robotic arm collisions during high-speed operations."
— John Wu, Engineering Manager, Industrial Equipment Producer
"The sensor's rapid response time (≤20ms) protected workers from robotic arm collisions during high-speed operations."
— John Wu, Engineering Manager, Industrial Equipment Producer
Food Processing Plant: Hygienic & Durable
"The IP67 aluminum housing resists water in our food processing lines while maintaining accuracy."
— Emily Chen, Quality Assurance Manager, Global Food & Beverage Company
"The IP67 aluminum housing resists water in our food processing lines while maintaining accuracy."
— Emily Chen, Quality Assurance Manager, Global Food & Beverage Company
Automated Warehouse: AGV Navigation Safety
"JUTAI's sensor improved AGV collision avoidance, reducing downtime by 25%."
— Kevin Liu, Logistics Director, Automated Storage Solutions Provider
"JUTAI's sensor improved AGV collision avoidance, reducing downtime by 25%."
— Kevin Liu, Logistics Director, Automated Storage Solutions Provider
Fire & Safety Provider: Fire Door Compliance
"The sensor ensures fire doors close safely without compromising personnel safety during drills."
— Jason Zhou, Technical Lead, Fire Protection Systems Company
"The sensor ensures fire doors close safely without compromising personnel safety during drills."
— Jason Zhou, Technical Lead, Fire Protection Systems Company
