CE Certified IP67 Safety Light Curtain Barrier Adjustable 8-16 Beams Cold Rooms Conveyor

  • CE Certified IP67 Safety Light Curtain Barrier Adjustable 8-16 Beams Cold Rooms Conveyor
  • CE Certified IP67 Safety Light Curtain Barrier Adjustable 8-16 Beams Cold Rooms Conveyor
Place of Origin China
Brand Name JUTAI
Certification CE
Model Number CL20-8L
Minimum Order Quantity 1
Price Negotiation
Packaging Details Cartoon
Delivery Time 5 - 8 working days
Payment Terms T/T, L/C, D/A, D/P, Western Union, Paypal, , MoneyGram, Alipay
Supply Ability 1000 pieces per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
IP Rating IP67 Function Blanking
Sensing Distance 8m Material Aluminum Alloy
Feature Corrosion Resistant Power Voltage ADC12-24V
Operating Temperature -30~60℃ Operating Current <50mA
Output No/Nc, COM Working Current <20mA@DC12V
Specification 2000*21*15 Mm
Highlight

CE Certified Light Curtain Barrier

,

Cold Rooms Light Curtain
Leave a Message
Product Description




Product Description

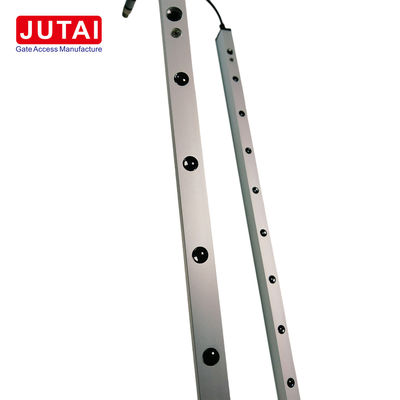

CE Certified IP67 Safety Light Curtain Barrier Adjustable 8-16 Beams Cold Rooms Conveyor 0

Revolutionizing Industrial Safety: Shenzhen JUTAI Comm Co., Ltd.’s IP67 Waterproof Safety Light Curtain Sensor – Ultimate Protection for Harsh Industrial Environments

In the dynamically advancing industrial sector, where operational speed converges with inherent safety hazards, Shenzhen JUTAI Comm Co., Ltd. emerges as a pioneer with its IP67 Waterproof Safety Light Curtain Sensor—a groundbreaking safety solution engineered to redefine reliability in the most demanding environments. Designed for seamless performance in dusty, high-moisture, and extreme-temperature settings, this sensor combines rugged durability with cutting-edge technology to safeguard personnel, machinery, and automated systems worldwide.

Unmatched IP67 Protection: Built for Industrial Extremes

The sensor’s IP67 certification is a testament to its resilience:

  • IPX6 Dustproof: Hermetically sealed against fine particles, ensuring uninterrupted operation in woodworking, metal fabrication, and food processing facilities.
  • IPX7 Waterproof: Withstands full water immersion (up to 1 meter for 30 minutes), making it ideal for cold storage, car washes, and outdoor logistics hubs.
  • Temperature Resilience: Operates flawlessly across a wide range of -25°C to +75°C, adapting to deep-freeze warehouses, foundries, and tropical manufacturing plants.

This robust aluminum alloy housing not only resists corrosion but also minimizes vibration interference, ensuring long-term stability in high-traffic industrial zones.

Precision Engineering: 10 Models for Diverse Applications

JUTAI offers 10 precision-engineered models tailored to varied safety needs, featuring:

  • Beam Configurations: 4 to 16 beams, enabling detection of objects as small as 50mm (with 100mm beam spacing).
  • Length Options: 500mm to 2500mm, suitable for narrow conveyor belts to large industrial gates.
  • Universal Performance: All models deliver ≤4W power consumption and ≤20ms response times, balancing efficiency with rapid hazard detection.

Model Highlight:

  • CL15-8L: 1500mm length, 8 beams, ideal for medium-sized warehouse doors and robotic cell protection.
  • CL25-16L: 2500mm length, 16 beams, designed for heavy machinery and large automated loading docks.

Dual-Mode Operation for Adaptive Safety

The sensor’s intelligent functionality adapts to operational demands:

  1. Blanking Mode:
    • Installed within door gaps, it detects sequential beam obstructions during closure (e.g., during forklift entry), triggering instant door reversal to prevent entrapment.
  2. Normal Mode:
    • Mounted on door sides, it provides full-width protection, activating immediate door-opening signals when personnel or objects interrupt beams.

Both modes comply with CE certification and EN 61496 safety standards, ensuring compliance with global machinery safety regulations.

Energy Efficiency Meets Advanced Detection

  • Low Power Design: With ≤4W consumption, the sensor reduces operational costs and aligns with sustainability goals, suitable for 24/7 industrial operations.
  • High Precision: 100mm beam spacing ensures accurate detection of small objects, minimizing false triggers and enhancing productivity in fast-paced environments.

Versatile Applications Across Industries

1. Industrial Door Systems

  • Rolling Doors: Prevents collisions in warehouse entryways.
  • High-Speed Doors: Safeguards cold storage (-25°C) and pharmaceutical cleanrooms from temperature loss.
  • Fire Doors: Enables safe, automated closure without risking personnel egress.

2. Automation & Material Handling

  • Conveyor Systems: Protects workers from moving belts and rollers.
  • Robotic Arms: Triggers emergency stops in automotive assembly lines and hazardous material handling.
  • AGVs (Automated Guided Vehicles): Enhances navigation safety in e-commerce fulfillment centers.

3. Heavy Machinery & Logistics

  • Packaging Lines: Reduces downtime from operator injuries and equipment jams.
  • Industrial Gates: Manages vehicle and pedestrian traffic in ports, airports, and manufacturing campuses.

Technical Excellence: Key Specifications

Parameter Specification
Product Type IP67 Waterproof Safety Light Curtain Sensor
Power Supply 24V DC ±10%
Material High-Impact Aluminum Alloy
Mounting Adjustable Brackets (Vertical/Horizontal)
Warranty 2-Year Comprehensive Coverage
Global Compliance CE, EN 61496-1/-2

Versatile Model Range
Choose from 10 meticulously engineered models with adjustable beam arrangements (4–16 beams) and variable lengths (500mm–2500mm), ensuring a perfect fit for a wide range of applications:

Model Length Beam Quantity Detection Range Response Time
CL05 - 4L 500mm 4 beams Up to 8 meters* ≤20ms
CL05 - 8L 500mm 8 beams Up to 8 meters* ≤20ms
CL10 - 8L 1000mm 8 beams Up to 8 meters* ≤20ms
CL10 - 16L 1000mm 16 beams Up to 8 meters* ≤20ms
CL15 - 8L 1500mm 8 beams Up to 8 meters* ≤20ms
CL15 - 16L 1500mm 16 beams Up to 8 meters* ≤20ms
CL20 - 8L 2000mm 8 beams Up to 8 meters* ≤20ms
CL20 - 16L 2000mm 16 beams Up to 8 meters* ≤20ms
CL25 - 8L 2500mm 8 beams Up to 8 meters* ≤20ms
CL25 - 16L 2500mm 16 beams Up to 8 meters* ≤20ms

Detection range may be influenced by environmental factors.

Core Features and Advantages

  1. Robust IP67 Design
    • The sensor is enclosed in a hermetically sealed aluminum alloy housing, providing protection against water immersion (IPX7) and dust (IPX6).
    • It can operate perfectly in temperatures ranging from -25°C to +75°C, making it suitable for cold storage (-25°C) and outdoor use.
  2. Dual - Function Operation
    • Blanking Mode: Installed in door gaps, it detects successive beam blockages during door closure and triggers an immediate door reversal.
    • Normal Mode: Mounted on the sides of doors, it offers full - width protection and activates an instant door - open signal when an obstruction is detected.
  3. Sophisticated Detection Technology
    • With a 100mm beam spacing, it can detect objects as small as 50mm with high precision.
    • It is CE certified and complies with EN 61496 safety standards for machinery.
  4. Energy - Efficient Performance
    • With low power consumption (<=4W), it helps reduce long - term operational costs and environmental impact.

Wide - Ranging Applications

  • Industrial Door Systems
    • Rolling Doors: Prevents entrapment in warehouses and factories.
    • High - Speed Doors: Stops sudden closure in cold storage and pharmaceutical plants.
    • Fire Doors: Ensures safe automatic closure without endangering personnel.
    • Cold Storage Doors: Resists condensation and fog in sub - zero environments.
  • Automation and Material Handling
    • Conveyor Systems: Protects operators from moving machinery.
    • Robotic Arms: Triggers emergency stops in hazardous areas.
    • AGVs: Improves navigation safety in dynamic warehouse environments.
  • Heavy Machinery and Equipment
    • Packaging Lines: Prevents jams and operator injuries.
    • Industrial Gates: Safeguards vehicle and pedestrian traffic in loading docks.

Technical Details

  • Product Type: Safety Light Curtain Sensor
  • Waterproof Rating: IP67 (Dustproof & Water - Resistant)
  • Working Voltage: 24V DC ±10%
  • Material: High - Impact Aluminum Alloy
  • Mounting Options: Adjustable Brackets (Vertical/Horizontal)
  • Safety Standards: CE, EN 61496 - 1/-2
  • Warranty: 2 - Year Comprehensive Coverage

Why Choose JUTAI Comm Co., Ltd.?

  • Over 10 Years of Expertise: A leader in the sensor industry, providing innovative safety solutions.
  • Customization Services: Free site audits and customized configurations for optimal performance.
  • Global Support: 24/7 technical assistance and a worldwide distribution network.
  • Proven Reliability: Trusted by Fortune 500 companies and ISO - certified facilities.



CE Certified IP67 Safety Light Curtain Barrier Adjustable 8-16 Beams Cold Rooms Conveyor 1





CE Certified IP67 Safety Light Curtain Barrier Adjustable 8-16 Beams Cold Rooms Conveyor 2

CE Certified IP67 Safety Light Curtain Barrier Adjustable 8-16 Beams Cold Rooms Conveyor 3



CE Certified IP67 Safety Light Curtain Barrier Adjustable 8-16 Beams Cold Rooms Conveyor 4

CE Certified IP67 Safety Light Curtain Barrier Adjustable 8-16 Beams Cold Rooms Conveyor 5

CE Certified IP67 Safety Light Curtain Barrier Adjustable 8-16 Beams Cold Rooms Conveyor 6

CE Certified IP67 Safety Light Curtain Barrier Adjustable 8-16 Beams Cold Rooms Conveyor 7

CE Certified IP67 Safety Light Curtain Barrier Adjustable 8-16 Beams Cold Rooms Conveyor 8

CE Certified IP67 Safety Light Curtain Barrier Adjustable 8-16 Beams Cold Rooms Conveyor 9
CE Certified IP67 Safety Light Curtain Barrier Adjustable 8-16 Beams Cold Rooms Conveyor 10
CE Certified IP67 Safety Light Curtain Barrier Adjustable 8-16 Beams Cold Rooms Conveyor 11

CE Certified IP67 Safety Light Curtain Barrier Adjustable 8-16 Beams Cold Rooms Conveyor 12

CE Certified IP67 Safety Light Curtain Barrier Adjustable 8-16 Beams Cold Rooms Conveyor 13
CE Certified IP67 Safety Light Curtain Barrier Adjustable 8-16 Beams Cold Rooms Conveyor 14

CE Certified IP67 Safety Light Curtain Barrier Adjustable 8-16 Beams Cold Rooms Conveyor 15

CE Certified IP67 Safety Light Curtain Barrier Adjustable 8-16 Beams Cold Rooms Conveyor 16
