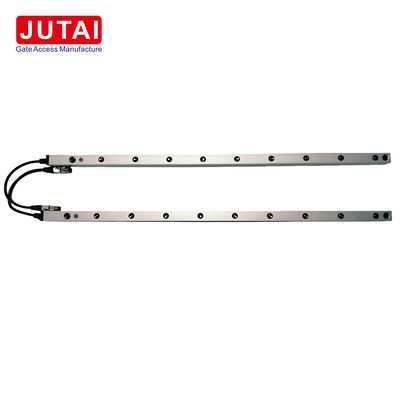

Multi-Application Safety Light Curtain Sensor IP67 High-Speed Doors Automated Machinery

  • Multi-Application Safety Light Curtain Sensor IP67 High-Speed Doors Automated Machinery
  • Multi-Application Safety Light Curtain Sensor IP67 High-Speed Doors Automated Machinery
Place of Origin China
Brand Name JUTAI
Certification CE
Model Number CL20-8L
Minimum Order Quantity 1
Price Negotiation
Packaging Details Cartoon
Delivery Time 5 - 8 working days
Payment Terms T/T, L/C, D/A, D/P, Western Union, Paypal, , MoneyGram, Alipay
Supply Ability 1000 pieces per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
IP Rating IP67 Function Blanking
Sensing Distance 8m Material Aluminum Alloy
Feature Corrosion Resistant Power Voltage ADC12-24V
Operating Temperature -30~60℃ Operating Current <50mA
Output No/Nc, COM Working Current <20mA@DC12V
Specification 2000*21*15 Mm
Highlight

IP67 Safety Light Curtain Sensor

,

IP67 Safety Light Curtain

,

High Speed Light Curtain Sensor
Leave a Message
Product Description




Product Description



Multi-Application Safety Light Curtain Sensor IP67 High-Speed Doors Automated Machinery 0



Industrial Safety Reinvented: JUTAI's IP67 Waterproof Light Curtain Sensor

Designed for harsh industrial environments, JUTAI’s IP67-rated safety light curtain sensor combines rugged durability with precision detection. Below is a concise overview of its features, models, and specifications in table format:

Key Features at a Glance

Feature Detail
IP Rating IP67 (Dust-tight & Waterproof up to 1m immersion)
Temperature Range -25°C to +75°C
Housing Material Corrosion-resistant aluminum alloy
Operation Modes - Blanking Mode: Prevents entrapment during door closure
- Normal Mode: Full-width obstruction detection
Certifications CE, EN 61496-1/-2 (Machinery safety standards)
Power Consumption ≤4W
Response Time ≤20ms

Model Overview

Model Length Beams Detection Range Ideal For
CL05-4L 500mm 4 Up to 8m* Narrow conveyor belts, small gates
CL05-8L 500mm 8 Up to 8m* Medium-sized doorways, robotic cells
CL10-8L 1000mm 8 Up to 8m* Warehouse doors, packaging lines
CL10-16L 1000mm 16 Up to 8m* High-precision automation (small object detection)
CL15-8L 1500mm 8 Up to 8m* Cold storage doors, industrial gates
CL15-16L 1500mm 16 Up to 8m* Large machinery, logistics hubs
CL20-8L 2000mm 8 Up to 8m* High-speed doors, pharmaceutical facilities
CL20-16L 2000mm 16 Up to 8m* Heavy-duty automation, automotive assembly
CL25-8L 2500mm 8 Up to 8m* Loading docks, large industrial doors
CL25-16L 2500mm 16 Up to 8m* Large-scale logistics, heavy machinery

Environmental factors may affect detection range.

Technical Specifications

Parameter Specification
Power Supply 24V DC ±10%
Beam Spacing 100mm (detects objects ≥50mm)
Mounting Adjustable brackets (vertical/horizontal)
Warranty 2-year comprehensive coverage
Weight Model-dependent (500g–2.5kg)

Applications by Industry

Sector Use Cases
Manufacturing Robotic arms, conveyor systems, packaging lines
Logistics Warehouse doors, loading docks, AGV navigation
Cold Storage Freezer doors (-25°C), temperature-controlled environments
Automotive Assembly lines, robotic welding cells, vehicle testing facilities
Food & Beverage Hygienic environments, washdown areas, conveyor safety

Why Choose JUTAI?

  • Custom Solutions: Tailored beam configurations and free site audits.
  • Global Support: 24/7 technical assistance and worldwide distribution.
  • Proven Reliability: Trusted by industrial leaders for over a decade.
