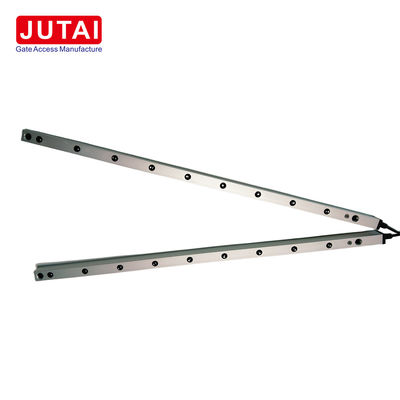

IP67 Rated Aluminum Safety Light Curtain 8 Beam 20ms Response Sectional Doors AGV

Place of Origin	China
Brand Name	JUTAI
Certification	CE
Model Number	CL20-8L
Minimum Order Quantity	1
Price	Negotiation
Packaging Details	Cartoon
Delivery Time	5 - 8 working days
Payment Terms	T/T, L/C, D/A, D/P, Western Union, Paypal, , MoneyGram, Alipay
Supply Ability	1000 pieces per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

IP Rating	IP67	Function	Blanking
Sensing Distance	8m	Material	Aluminum Alloy
Feature	Corrosion Resistant	Power Voltage	ADC12-24V
Operating Temperature	-30~60℃	Operating Current	<50mA
Output	No/Nc, COM	Working Current	<20mA@DC12V
Specification	20002115 Mm
Highlight	8 Beam Safety Light Curtain , 20ms Response Safety Light Curtain

Leave a Message

Product Description

IP67 Rated Aluminum Safety Light Curtain 8 Beam 20ms Response Sectional Doors AGV 0

Industrial Safety Reinvented: JUTAI's IP67 Waterproof Light Curtain Sensor

Designed for harsh environments, JUTAI’s IP67-rated safety light curtain sensor offers robust protection against dust, water, and extreme temperatures (-25°C to +75°C). Ideal for industrial doors, cold storage, and automated systems, it ensures personnel and equipment safety with precision detection and fast response times (≤20ms).

Key Features:

IP67 Durability: Dust-tight (IP6X) and waterproof (IPX7) aluminum alloy housing.
Dual Modes:
- Blanking Mode: Prevents entrapment during door closure.
- Normal Mode: Full-width protection for instant door activation.
10 Models: Adjustable beams (4–16) and lengths (500–2500mm) for versatile applications.
Efficiency: ≤4W power consumption, CE-certified, and EN 61496 compliant.

Applications:

Industrial doors (rolling, high-speed, fire).
Automation (conveyor systems, robotic arms, AGVs).
Heavy machinery and logistics.

Specifications:

Voltage: 24V DC ±10%.
Detection Range: Up to 8 meters*.
Warranty: 2 years.

JUTAI – Trusted for industrial safety solutions worldwide.

Technical Specifications

Parameter	Specification
Power Supply	24V DC ±10%
Beam Spacing	100mm (detects objects ≥50mm)
Mounting	Adjustable brackets (vertical/horizontal)
Warranty	2-year comprehensive coverage
Weight	Model-dependent (500g–2.5kg)

Applications by Industry

Sector	Use Cases
Manufacturing	Robotic arms, conveyor systems, packaging lines
Logistics	Warehouse doors, loading docks, AGV navigation
Cold Storage	Freezer doors (-25°C), temperature-controlled environments
Automotive	Assembly lines, robotic welding cells, vehicle testing facilities
Food & Beverage	Hygienic environments, washdown areas, conveyor safety

Why Choose JUTAI?

Custom Solutions: Tailored beam configurations and free site audits.
Global Support: 24/7 technical assistance and worldwide distribution.
Proven Reliability: Trusted by industrial leaders for over a decade.
