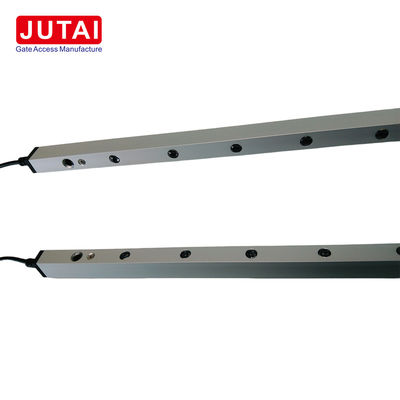

Cold Storage-Proof IP67 Safety Light Curtain Blanking Mode Freezer Doors CE Certified

Place of Origin	China
Brand Name	JUTAI
Certification	CE
Model Number	CL20-8L
Minimum Order Quantity	1
Price	Negotiation
Packaging Details	Cartoon
Delivery Time	5 - 8 working days
Payment Terms	T/T, L/C, D/A, D/P, Western Union, Paypal, , MoneyGram, Alipay
Supply Ability	1000 pieces per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

IP Rating	IP67	Function	Blanking
Sensing Distance	8m	Material	Aluminum Alloy
Feature	Corrosion Resistant	Power Voltage	ADC12-24V
Operating Temperature	-30~60℃	Operating Current	<50mA
Output	No/Nc, COM	Working Current	<20mA@DC12V
Specification	20002115 Mm
Highlight	CE Certified Safety Light Curtain , Blanking Mode Safety Light Curtain

Leave a Message

Product Description

Cold Storage-Proof IP67 Safety Light Curtain Blanking Mode Freezer Doors CE Certified 0

Enhanced Industrial Safety: JUTAI’s IP67 Waterproof Light Curtain Sensor – Ultimate Protection for Harsh Environments

Engineered to dominate extreme industrial conditions, JUTAI’s IP67-rated Safety Light Curtain Sensor delivers uncompromising protection against dust, water, and temperature fluctuations (-25°C to +75°C). Ideal for industrial door systems, cold storage facilities, and automated manufacturing lines, this sensor combines rugged durability with advanced detection technology to safeguard personnel, machinery, and productivity.

Core Features & Benefits

Feature	Technical Detail
IP67 Certification	- IP6X Dustproof: Sealed against fine particles - IPX7 Waterproof: Withstands 1m water immersion for 30 mins
Dual Operation Modes	- Blanking Mode: Prevents door entrapment by detecting sequential beam obstructions - Normal Mode: Instant door activation via full-width obstruction detection
Model Versatility	- 10 configurable models: 4–16 beams, 500–2500mm lengths - Detects objects as small as 50mm (100mm beam spacing)
Energy Efficiency	≤4W power consumption for low operational costs and sustainability alignment
Safety Compliance	CE certified, meets EN 61496-1/-2 machinery safety standards

Model Specifications

Model	Length	Beams	Ideal Applications	Detection Range	Response Time
CL05-4L	500mm	4	Small conveyor belts, compact industrial doors	Up to 8m*	≤20ms
CL10-16L	1000mm	16	Precision robotics, small object detection	Up to 8m*	≤20ms
CL15-8L	1500mm	8	Cold storage doors (-25°C), medium-sized gates	Up to 8m*	≤20ms
CL25-16L	2500mm	16	Large logistics hubs, heavy machinery protection	Up to 8m*	≤20ms

Environmental factors may affect detection range.

Industrial Applications

Sector	Key Use Cases
Manufacturing	Robotic assembly lines, packaging equipment, press machines
Cold Storage	Freezer doors, cold room entrances, temperature-sensitive logistics
Automation & Robotics	AGV navigation safety, robotic cell barriers, conveyor system protection
Logistics & Warehousing	High-speed warehouse doors, loading dock security, forklift collision avoidance
Food & Pharmaceutical	Hygienic washdown areas, automated sorting systems, compliance-sensitive zones

Technical Details

Parameter	Specification
Power Supply	24V DC ±10% (wide-range compatibility)
Mounting Options	Adjustable vertical/horizontal brackets
Material	Corrosion-resistant aluminum alloy
Warranty	2-year warranty with global technical support
EMI Resistance	Minimizes interference in high-voltage environments

Why JUTAI?

10+ Years of Expertise: Proven leadership in industrial sensor innovation.
Custom Solutions: Free site surveys and tailored beam configurations for optimal performance.
Global Reach: 24/7 technical support and a robust distribution network across North America, Europe, and APAC.
Trusted by Leaders: Used in Fortune 500 facilities and ISO-certified manufacturing plants.

Why Choose JUTAI?

Custom Solutions: Tailored beam configurations and free site audits.
Global Support: 24/7 technical assistance and worldwide distribution.
Proven Reliability: Trusted by industrial leaders for over a decade.
