High-Speed Industrial Light Curtain Sensor IP67 Blanking Mode Safety Barrier Rolling Gates

  • High-Speed Industrial Light Curtain Sensor IP67 Blanking Mode Safety Barrier Rolling Gates
  • High-Speed Industrial Light Curtain Sensor IP67 Blanking Mode Safety Barrier Rolling Gates
Place of Origin China
Brand Name JUTAI
Certification CE
Model Number CL20-8L
Minimum Order Quantity 1
Price Negotiation
Packaging Details Cartoon
Delivery Time 5 - 8 working days
Payment Terms T/T, L/C, D/A, D/P, Western Union, Paypal, , MoneyGram, Alipay
Supply Ability 1000 pieces per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
IP Rating IP67 Function Blanking
Sensing Distance 8m Material Aluminum Alloy
Feature Corrosion Resistant Power Voltage ADC12-24V
Operating Temperature -30~60℃ Operating Current <50mA
Output No/Nc, COM Working Current <20mA@DC12V
Specification 2000*21*15 Mm
Highlight

IP67 Light Curtain Sensor

,

Safety Barrier Light Curtain Sensor
Leave a Message
Product Description




Product Description



High-Speed Industrial Light Curtain Sensor IP67 Blanking Mode Safety Barrier Rolling Gates 0

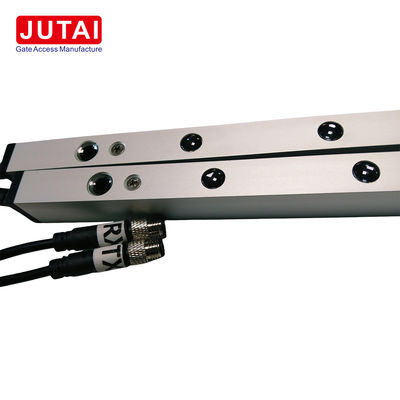

JUTAI IP67 Waterproof Safety Light Curtain Sensor

Engineered for extreme industrial environments, JUTAI’s IP67-rated sensor provides reliable protection against dust, water, and temperature fluctuations (-25°C to +75°C). With adjustable beams (4–16) and lengths (500–2500mm), it ensures precise detection for industrial doors, cold storage, and automated systems.

Key Specifications

Feature Specification
IP Rating IP67 (Dustproof & Waterproof up to 1m immersion)
Temperature Range -25°C to +75°C
Beam Spacing 100mm (detects objects ≥50mm)
Power Supply 24V DC ±10%
Response Time ≤20ms
Certifications CE, EN 61496-1/-2 (Machinery safety standards)
Housing Material Corrosion-resistant aluminum alloy
Warranty 2-year comprehensive coverage

Core Benefits

  • Dual Operation Modes:
    • Blanking Mode: Prevents entrapment during door closure by detecting sequential beam obstructions.
    • Normal Mode: Triggers instant door activation when obstacles are detected across the full width.
  • Energy Efficiency: ≤4W power consumption reduces long-term operational costs.
  • Versatile Models: 10 configurations for diverse needs, from narrow conveyor belts to large industrial gates.

Applications

  • Industrial Doors: High-speed doors, cold storage doors (-25°C), fire doors.
  • Automation: Conveyor systems, robotic arms, AGV navigation.
  • Heavy Machinery: Packaging lines, loading docks, and logistics hubs.

JUTAI – Trusted for Industrial Safety Solutions
Contact us for customized configurations or global technical support.
