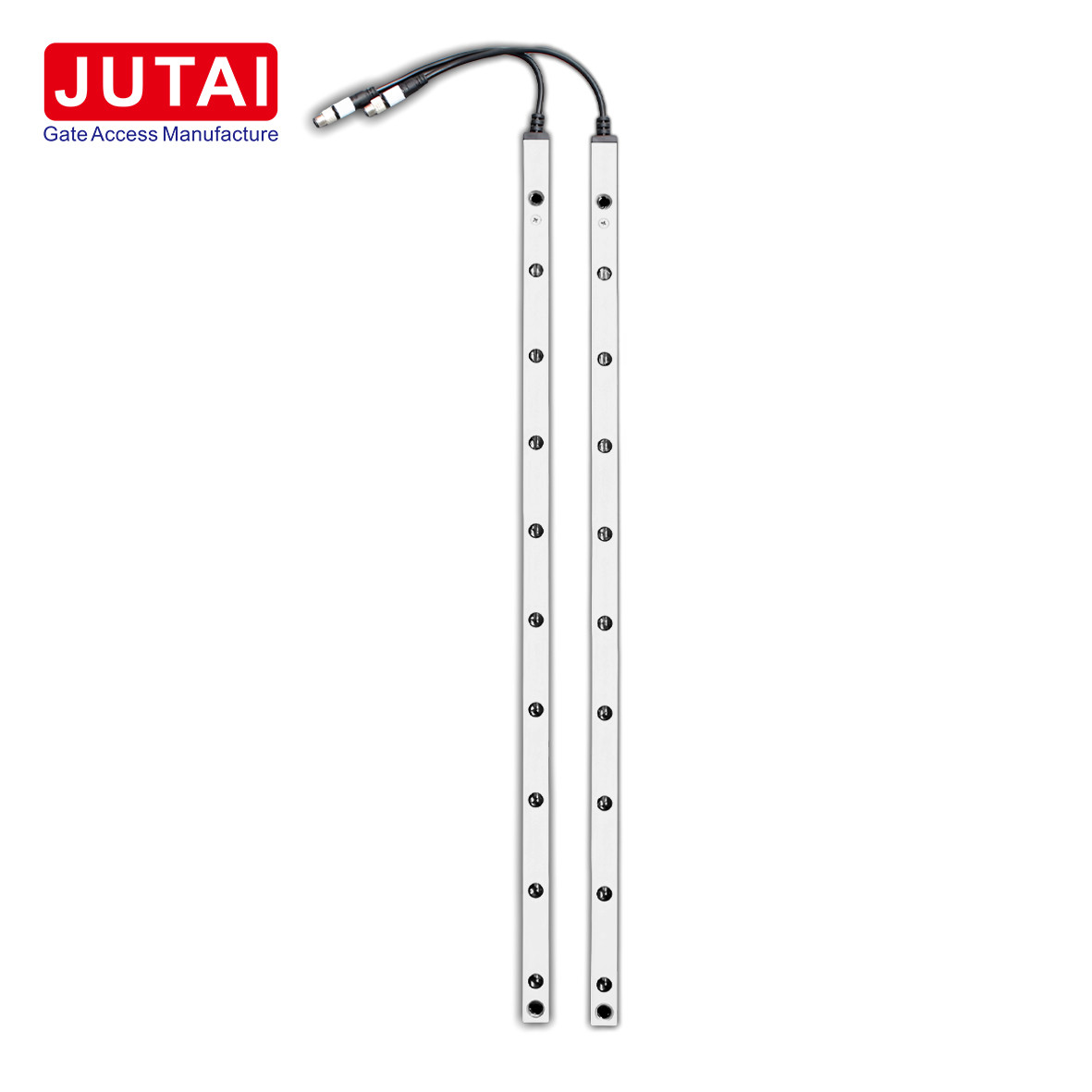

IP67 Dustproof Infrared Barrier Sensor Multi-Beam Industrial High Speed Doors

  • IP67 Dustproof Infrared Barrier Sensor Multi-Beam Industrial High Speed Doors
  • IP67 Dustproof Infrared Barrier Sensor Multi-Beam Industrial High Speed Doors
Place of Origin China
Brand Name JUTAI
Certification CE
Model Number CL20-8L
Minimum Order Quantity 1
Price Negotiation
Packaging Details Cartoon
Delivery Time 5 - 8 working days
Payment Terms T/T, L/C, D/A, D/P, Western Union, Paypal, , MoneyGram, Alipay
Supply Ability 1000 pieces per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
IP Rating IP67 Function Blanking
Sensing Distance 8m Material Aluminum Alloy
Feature Corrosion Resistant Power Voltage ADC12-24V
Operating Temperature -30~60℃ Operating Current <50mA
Output No/Nc, COM Working Current <20mA@DC12V
Specification 2000*21*15 Mm
Highlight

Multi-Beam Infrared Barrier Sensor

,

IP67 Infrared Barrier Sensor
Leave a Message
Product Description




Product Description



IP67 Dustproof Infrared Barrier Sensor Multi-Beam Industrial High Speed Doors 0

JUTAI IP67 Waterproof Safety Light Curtain Sensor

Designed to excel in harsh industrial settings, JUTAI’s IP67-rated sensor offers robust protection against dust, water, and extreme temperatures (-25°C to +75°C). With flexible beam and length options, it ensures reliable safety for industrial doors, cold storage, and automated processes.

Technical Overview

Feature Specification
IP Rating IP67 (Dust-tight & Waterproof)
Beam Configurations 4–16 beams (100mm spacing, detects ≥50mm objects)
Length Range 500mm–2500mm
Detection Range Up to 8 meters*
Power Consumption ≤4W
Response Time ≤20ms
Certifications CE, EN 61496
Mounting Adjustable vertical/horizontal brackets
Warranty 2 years

Environmental factors may affect detection range.

Key Advantages

  • Dual Safety Modes:
    • Blanking Mode: Prevents door entrapment by ignoring lateral movements during closure.
    • Normal Mode: Provides full-width protection for instant obstruction detection.
  • Rugged Design: Hermetically sealed aluminum alloy housing resists corrosion and EMI interference.
  • Energy-Saving: Low power usage suits 24/7 operations and sustainability goals.
