IP67 Safety Light Curtain Blanking Function Door Gap Rail for High-Speed Industrial Doors 30ms

  • IP67 Safety Light Curtain Blanking Function Door Gap Rail for High-Speed Industrial Doors 30ms
  • IP67 Safety Light Curtain Blanking Function Door Gap Rail for High-Speed Industrial Doors 30ms
Place of Origin China
Brand Name JUTAI
Certification CE
Model Number CL20-8L
Minimum Order Quantity 1
Price Negotiation
Packaging Details Cartoon
Delivery Time 5 - 8 working days
Payment Terms T/T, L/C, D/A, D/P, Western Union, Paypal, , MoneyGram, Alipay
Supply Ability 1000 pieces per month
Product Details
IP Rating IP67 Function Blanking
Sensing Distance 8m Material Aluminum Alloy
Feature Corrosion Resistant Power Voltage ADC12-24V
Operating Temperature -30~60℃ Operating Current <50mA
Output No/Nc, COM Working Current <20mA@DC12V
Specification 2000*21*15 Mm
Highlight

Industrial Door Gap Rail Light Curtain

,

Blanking Function Light Curtain

,

30ms Industrial Door Light Curtain
Leave a Message
Product Description




Product Description



IP67 Safety Light Curtain Blanking Function Door Gap Rail for High-Speed Industrial Doors 30ms 0

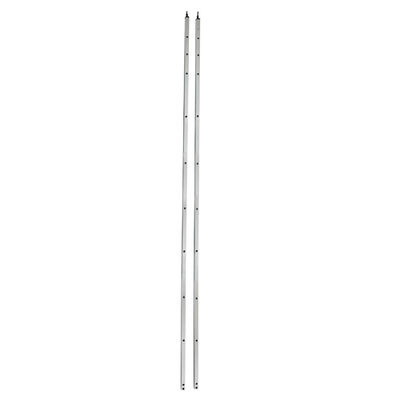

JUTAI IP67 Waterproof Industrial Safety Light Curtain Sensor

Engineered for rugged industrial environments, JUTAI’s IP67-certified safety light curtain sensor delivers reliable protection against dust, water ingress, and extreme temperatures (-25°C to +75°C). Ideal for industrial doors, cold storage facilities, and automated production lines, this sensor offers customizable beam configurations and length options to meet diverse safety requirements.

Technical Specifications

Feature Details
IP Rating IP67 (full dust-tight seal & waterproof up to 1m immersion)
Beam Options 4–16 beams (100mm spacing, detects objects ≥50mm)
Length Range 500mm–2500mm (adjustable for various installation sizes)
Detection Distance Up to 8 meters* (environment-dependent)
Power Consumption ≤4W (energy-efficient for 24/7 operation)
Response Time ≤20ms (instant obstruction detection)
Certifications CE, EN 61496 (compliant with international safety standards)
Mounting System Adjustable vertical/horizontal brackets for flexible installation
Warranty 2-year manufacturer guarantee

*Detection range may vary based on environmental conditions.

Key Performance Advantages

  1. Dual Safety Operation Modes
    • Blanking Mode: Ignores lateral movements during door closure to prevent entrapment.
    • Normal Mode: Provides full-width protection for immediate obstacle detection.
  2. Heavy-Duty Construction
    • Hermetically sealed aluminum alloy housing resists corrosion, impact, and EMI interference.
    • IP67 rating ensures reliability in wet, dusty, or high-moisture environments.
  3. Energy-Efficient Design
    • Low power consumption (≤4W) reduces operational costs and supports sustainable manufacturing goals.
  4. Flexible Installation
    • Adjustable brackets enable quick vertical/horizontal mounting for industrial doors, conveyors, or access points.
