IP67 Photoelectric Barrier Blanking Rapid Industrial Doors Rail-Guided Installation

  • IP67 Photoelectric Barrier Blanking Rapid Industrial Doors Rail-Guided Installation
  • IP67 Photoelectric Barrier Blanking Rapid Industrial Doors Rail-Guided Installation
Place of Origin China
Brand Name JUTAI
Certification CE
Model Number CL20-8L
Minimum Order Quantity 1
Price Negotiation
Packaging Details Cartoon
Delivery Time 5 - 8 working days
Payment Terms T/T, L/C, D/A, D/P, Western Union, Paypal, , MoneyGram, Alipay
Supply Ability 1000 pieces per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
IP Rating IP67 Function Blanking
Sensing Distance 8m Material Aluminum Alloy
Feature Corrosion Resistant Power Voltage ADC12-24V
Operating Temperature -30~60℃ Operating Current <50mA
Output No/Nc, COM Working Current <20mA@DC12V
Specification 2000*21*15 Mm
Highlight

Rapid Industrial Doors Raidil Gued

,

IP67 Rail Guided
Leave a Message
Product Description




Product Description



IP67 Photoelectric Barrier Blanking Rapid Industrial Doors Rail-Guided Installation 0

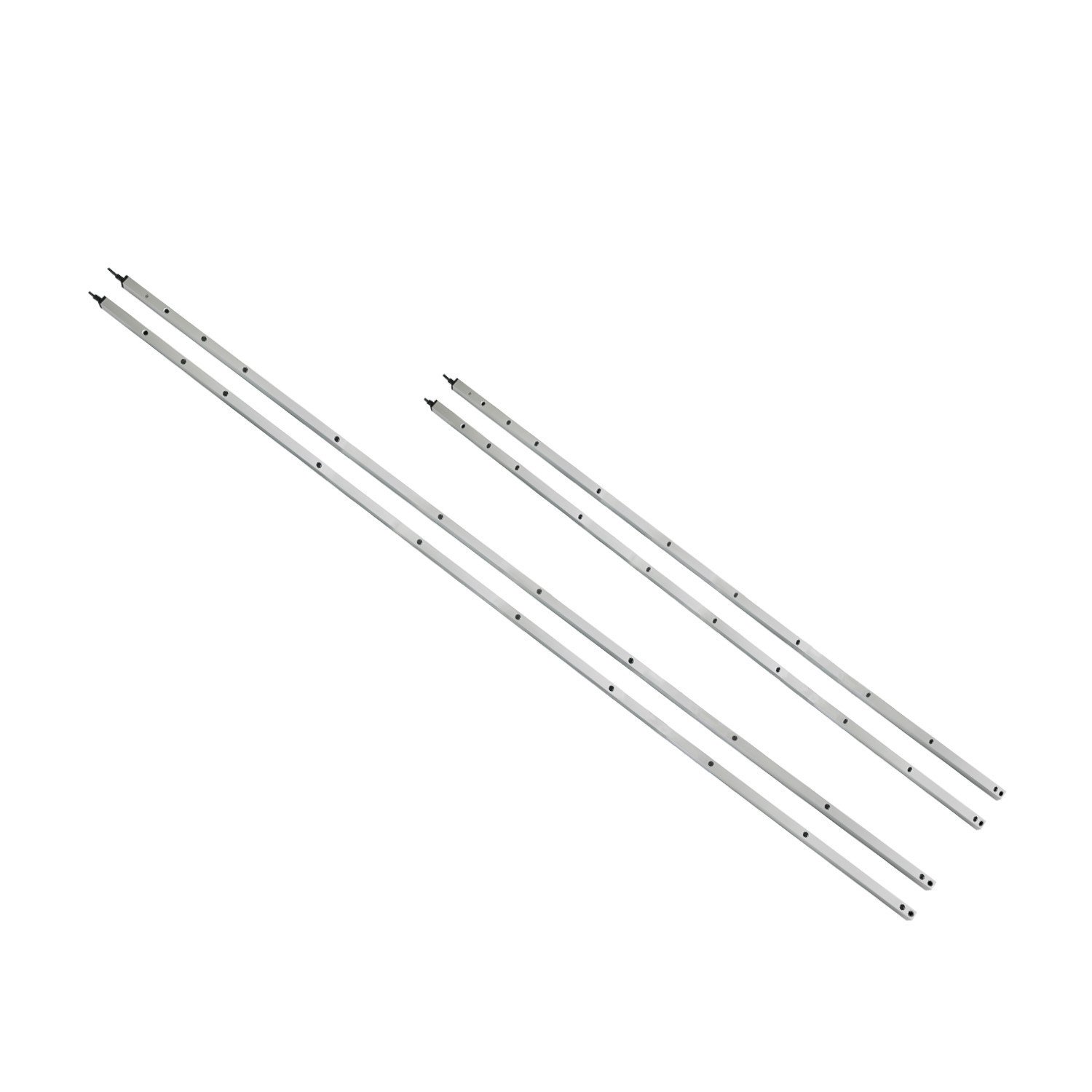

JUTAI IP67 Waterproof Safety Light Curtain Sensor

Engineered for demanding industrial environments, JUTAI's IP67-rated safety light curtain sensor delivers exceptional protection against dust, water ingress, and extreme temperatures (-25°C to +75°C). With customizable beam configurations and lengths, it ensures reliable safety for industrial doors, cold storage facilities, and automated production lines.

Technical Specifications

Parameter Details
Protection Class IP67 (Fully dust-tight and waterproof up to 1m submersion)
Beam Configuration 4-16 beams (100mm spacing, detects objects ≥50mm)
Length Options 500mm-2500mm (Adjustable for various installation sizes)
Detection Range Up to 8 meters* (Environment-dependent)
Power Consumption ≤4W (Energy-efficient for 24/7 operations)
Response Time ≤20ms (Real-time obstacle detection)
Certifications CE, EN 61496 (Compliant with international safety standards)
Mounting System Adjustable vertical/horizontal brackets (Flexible installation)
Warranty 2-year manufacturer warranty

*Detection range may vary due to environmental factors.

Key Performance Benefits

  1. Dual Safety Modes
    • Blanking Mode: Ignores lateral movements during door closure to prevent entrapment.
    • Standard Mode: Provides full-width protection for immediate obstacle detection.
  2. Robust Construction
    • Hermetically sealed aluminum alloy housing resists corrosion, impacts, and EMI interference.
    • IP67 rating ensures reliable operation in wet, dusty, or high-humidity environments.
  3. Energy-Efficient Design
    • Low power consumption (≤4W) reduces operational costs and supports sustainable manufacturing goals.
  4. Flexible Installation
    • Adjustable brackets enable quick vertical/horizontal mounting for industrial doors, conveyors, or access points.
IP67 Photoelectric Barrier Blanking Rapid Industrial Doors Rail-Guided Installation 1





IP67 Photoelectric Barrier Blanking Rapid Industrial Doors Rail-Guided Installation 2

IP67 Photoelectric Barrier Blanking Rapid Industrial Doors Rail-Guided Installation 3



IP67 Photoelectric Barrier Blanking Rapid Industrial Doors Rail-Guided Installation 4

IP67 Photoelectric Barrier Blanking Rapid Industrial Doors Rail-Guided Installation 5

IP67 Photoelectric Barrier Blanking Rapid Industrial Doors Rail-Guided Installation 6

IP67 Photoelectric Barrier Blanking Rapid Industrial Doors Rail-Guided Installation 7

IP67 Photoelectric Barrier Blanking Rapid Industrial Doors Rail-Guided Installation 8

IP67 Photoelectric Barrier Blanking Rapid Industrial Doors Rail-Guided Installation 9
IP67 Photoelectric Barrier Blanking Rapid Industrial Doors Rail-Guided Installation 10
IP67 Photoelectric Barrier Blanking Rapid Industrial Doors Rail-Guided Installation 11

IP67 Photoelectric Barrier Blanking Rapid Industrial Doors Rail-Guided Installation 12

IP67 Photoelectric Barrier Blanking Rapid Industrial Doors Rail-Guided Installation 13
IP67 Photoelectric Barrier Blanking Rapid Industrial Doors Rail-Guided Installation 14

IP67 Photoelectric Barrier Blanking Rapid Industrial Doors Rail-Guided Installation 15

IP67 Photoelectric Barrier Blanking Rapid Industrial Doors Rail-Guided Installation 16
