Cloud-Based Smart Barrier Controller WiFi/4G Access System for Parking Lots Gated Communities
Product Details
| Relay Output | 4 Way | Relay Input | 3 Way |
|---|---|---|---|
| Communicate | WiFi/4G | Operating Temperature Range | -30 To 80 ℃ |
| Intelligent Safety Warning | Double - Notification For Abnormal Events (APP Pop - Up Alarm + Detailed Email Report); Physical Protection Linkage (forced Door Opening Triggers Alarm And Camera Automatically Takes Evidence) | Operation Counting And Health Diagnosis | Full - Cycle Statistics Of Device Opening And Closing Times And Running Duration; Maintenance Warning System With Threshold Triggering And Maintenance Report Generation |
| Highlight | WiFi smart barrier controller,4G access control system,parking lot gate opener |
||
Product Description

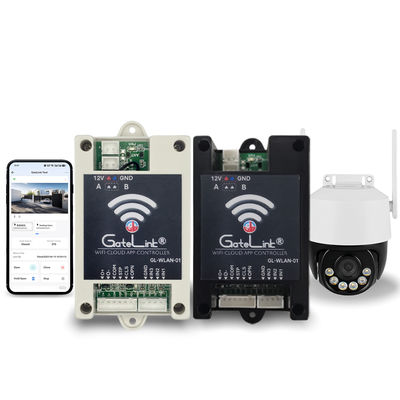

Cloud-Based Smart Barrier Controller WiFi/4G Access System for Parking Lots & Gated Communities
Product Overview
The JUTAI Smart Gate Controller is a cutting-edge WiFi/4G enabled access control solution that brings smart automation to gates, barriers, and doors. Designed for both residential and commercial applications, this controller allows users to remotely operate gates, sliding doors, and barriers via a user-friendly mobile app.
Key Features
- WiFi & 4G Dual Connectivity - Ensures uninterrupted remote control even when WiFi is unavailable
- Multi-Device Control - Supports up to 4 relay outputs for gates, lights, and smart home devices
- Real-Time Monitoring - HD camera integration for live video feeds and two-way audio communication
- Smart Alerts & Logs - Get instant notifications for unauthorized access or system events
- Industrial-Grade Durability - Operates in -10°C to 60°C environments, perfect for outdoor installations
- RS485 Communication - Adjust settings for industrial automation equipment
Applications
Residential Use
- Smart sliding doors (garage, patio, main gate)
- Home automation (lights, curtains, AC units)
- Package delivery access (temporary unlock via app)
Commercial & Industrial Use
- Barrier gates (parking lots, toll booths)
- Turnstiles & high-speed doors (office buildings, warehouses)
- Fleet logistics (loading bay door control)
Technical Specifications
- Model: GL-WLAN-01
- Power Supply: DC 12V 1A (5V customizable)
- Connectivity: WiFi + BLE + 4G (optional)
- Relay Outputs: 4 channels (3 shared COM, 1 independent)
- Operating Temp: -10°C to 60°C
- Dimensions: 96.5 x 50 x 31.4mm
Why Choose JUTAI?
- All-in-One Control - Manage gates, barriers, and smart devices from a single app
- Secure & Encrypted - End-to-end encryption protects against hacking
- Easy Installation - No professional setup required
Detailed Technical Specifications
| Parameter | Details |
|---|---|
| Model | GL-WLAN-01 |
| Power Supply | DC 12V 1A (5V customizable) |
| Load Capacity | DC 30V/1A, AC 125V/1A |
| Connectivity | WiFi + BLE + 4G (optional) |
| Protocols | MQTT, RS485, OTA (Over-The-Air updates) |
| Relay Outputs | 4 channels (3 shared COM, 1 independent) |
| Digital Inputs | 3 non-isolated interfaces |
| Dimensions | 96.5 x 50 x 31.4mm |
| Camera Support | HD streaming, night vision, motion detection |
