24GHz Microwave Motion Detector with Lateral Movement Filter for High Speed Doors
| Place of Origin | China |
|---|---|
| Brand Name | JUTAI |
| Certification | FDA, E-MARK, CE, ISO, FCC, RoHS, DOT, ASTM, AS/NZS, CCC, GS |
| Model Number | RVP42-7M |
| Minimum Order Quantity | 1 |
| Price | Negotiation |
| Packaging Details | Cartoon |
| Delivery Time | 5-8 days |
| Payment Terms | T/T,L/C,D/A,D/P,Western Union,Paypal,,Alipay |
| Supply Ability | 1000 pieces per month |
Product Details
| Output Type | 1 Relay Output. | Power Supply | 12-24VADC |
|---|---|---|---|
| Antenna Frequency | 24.125GHz | Detection Height | 3m To 7m |
| Package Size | 28.00cm * 13.00cm * 10.00cm | Function | Forklift People Distinguish |
| Waterproof | IP65 | Working Temperature | -30~70℃ |
| Setting | Bluetooth APP | ||
| Highlight | 24GHz microwave motion detector,industrial door motion sensor,high speed door lateral movement filter |
||
Product Description
24GHz Microwave Motion Detector with Lateral Movement Filter for High Speed Doors

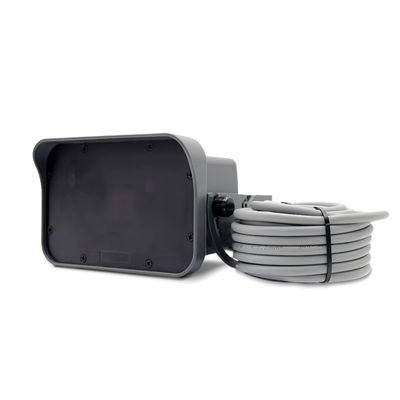

JUTAI RVP42-7M Industrial Motion Sensor
24GHz Radar Vehicle Pedestrian Detection IP65 7m Cable
Advanced Vehicle and Pedestrian Detection System
The JUTAI RVP42-9ME/RVP42-9MG represents the pinnacle of intelligent motion detection technology, specifically engineered for demanding access control applications. This state-of-the-art microwave radar sensor delivers unparalleled performance in distinguishing between vehicles and pedestrians while operating flawlessly in extreme industrial environments.
Core Technology Advantages
- 24.125GHz Doppler Radar Technology: Provides precise movement detection with advanced signal processing algorithms
- Dual-Channel Intelligent Recognition: Independent relay outputs for vehicle (30VDC/1A) and pedestrian (125VAC/0.5A) detection
- Multi-Dimensional Motion Analysis: Capable of identifying forward, backward, and lateral movements with adjustable sensitivity
- Environmental Resilience: Maintains consistent performance from -30°C to +60°C with IP65-rated protection
Precision Detection Capabilities
Speed Differentiation
- Ultra-sensitive detection range from 5cm/s (slow pedestrian movements) to 25km/s (fast-moving vehicles)
- Configurable speed thresholds through intuitive button interface
Spatial Recognition
- Adjustable detection area from compact 3.0×3.5m to expansive 6.5×8.5m coverage
- 0°-90° angle adjustment for optimal positioning
Interference Rejection
Advanced signal filtering eliminates false triggers from:
- Metallic obstructions
- Moving vegetation
- Fluorescent lighting interference
- Environmental vibrations
Industrial-Grade Performance Specifications
| Parameter | RVP42-9ME Standard | RVP42-9MG Enhanced |
|---|---|---|
| Power Input | 12-36V DC | 12-36V DC |
| Current Draw | <100mA | <100mA |
| Relay Capacity | 24VDC/1A or 125VAC/0.5A | 24VDC/1A or 125VAC/0.5A |
| Detection Height | 2.0-9.0m adjustable | 2.0-9.0m adjustable |
| Cable Length | 7m shielded | 7m shielded |
| Weight | 650g | 650g |
Optimized Application Scenarios
Heavy Industrial Environments
- Automated Warehouse Doors: Reliable forklift detection in high-traffic distribution centers
- Manufacturing Facilities: Consistent operation despite electromagnetic interference
- Cold Chain Logistics: Unaffected by temperature fluctuations in freezer storage
Commercial Infrastructure
- Smart Parking Systems: Accurate vehicle counting at entry/exit points
- Security Checkpoints: Unauthorized access prevention with directional detection
- Service Vehicle Access: Priority detection for authorized fleet vehicles
Municipal Applications
- Public Transportation Gates: Smooth passenger flow management
- Toll Collection Points: Vehicle presence verification
- Emergency Vehicle Access: Priority lane activation
Installation Excellence
- Vibration-Resistant Mounting: Specialized brackets ensure stable operation
- Flexible Positioning: 360° adjustable mounting orientation
- Quick Configuration: LED indicators for real-time status monitoring
- Maintenance-Free Design: Sealed construction prevents dust/liquid ingress
Smart Configuration Features
- On-Device Programming: 8 pre-set detection modes, 9-level sensitivity adjustment, 0.2-5.0s relay timing control
- Remote Management Ready: RS485 interface for system integration, compatible with building automation protocols
Technical Superiority
- Certified Reliability: CE, RoHS compliant
- Extended Service Life: 100,000+ operation cycles
- Signal Consistency: <1% detection variance across temperature range
- Instant Response: <50ms trigger response time
Product Images and Applications
