Safety Light Curtain Sensors Manufacturer IP67 Waterproof with Blanking Function
Product Details
| IP Rating | IP67 | Function | Blanking |
|---|---|---|---|
| Sensing Distance | 8m | Material | Aluminum Alloy |
| Feature | Corrosion Resistant | Power Voltage | DC12-24V |
| Operating Temperature | -20~60℃ | Operating Current | <50mA |
| Output | No/Nc, COM | Working Current | <20mA@DC12V |
| Specification | 2000*21*15 Mm | ||
| Highlight | IP67 waterproof safety light curtain,light curtain sensor with blanking function,IP67 blanking light curtain sensor |
||
Product Description

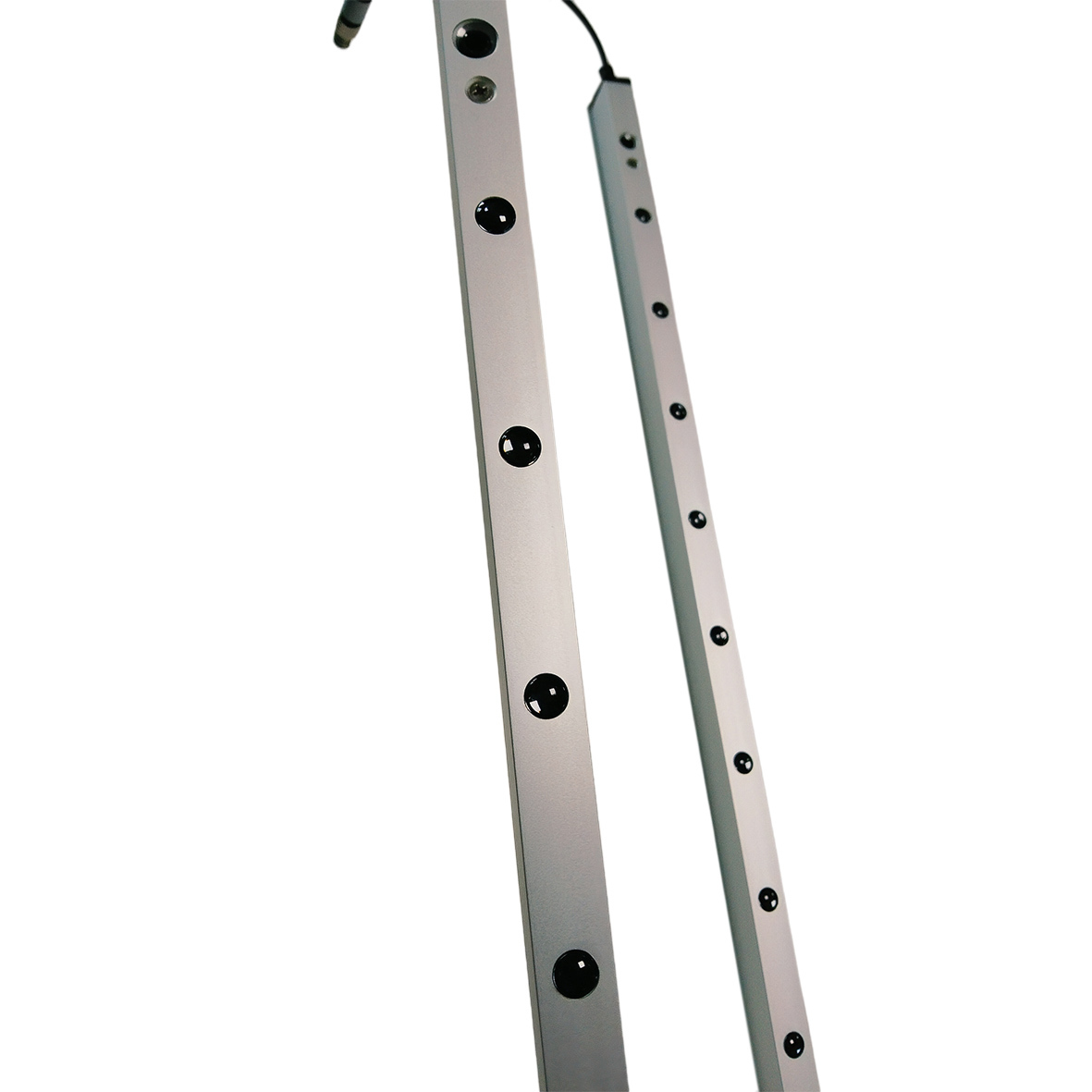

IP67 Waterproof Safety Light Curtain Sensors with Blanking Function
Shenzhen JUTAI Communication Co., Ltd. presents industrial-grade IP67 Waterproof Safety Light Curtain Sensors, engineered for high-demand environments where dust ingress, moisture exposure, and extreme temperatures are daily challenges. These light curtains deliver uninterrupted, reliable operation across automated factories, high-throughput warehouses, refrigerated storage facilities, and high-speed production lines.
Engineered for Versatility: 10 Model Configurations
JUTAI offers 10 distinct models with customizable beam quantities and barrier lengths to align perfectly with your operational requirements.
| Model | Barrier Length | Number of Beams | Maximum Detection Distance |
|---|---|---|---|
| CL05 - 4L | 500 mm | 4 beams | Up to 8 meters* |
| CL05 - 8L | 500 mm | 8 beams | Up to 8 meters* |
| CL10 - 8L | 1000 mm | 8 beams | Up to 8 meters* |
| CL10 - 16L | 1000 mm | 16 beams | Up to 8 meters* |
| CL15 - 8L | 1500 mm | 8 beams | Up to 8 meters* |
| CL15 - 16L | 1500 mm | 16 beams | Up to 8 meters* |
| CL20 - 8L | 2000 mm | 8 beams | Up to 8 meters* |
| CL20 - 16L | 2000 mm | 16 beams | Up to 8 meters* |
| CL25 - 8L | 2500 mm | 8 beams | Up to 8 meters* |
| CL25 - 16L | 2500 mm | 16 beams | Up to 8 meters* |
* Detection range may vary based on environmental conditions and selected beam configuration.
Key Features
IP67 Waterproof & Industrial-Strength Durability
- Rugged, fully sealed aluminum alloy housing withstands water jets and dust particles
- Operates in sub-zero temperatures down to -25°C (ideal for cold storage applications)
- Designed for harsh indoor/outdoor industrial settings, including food processing plants
Dual Operating Modes for Flexible Safety Integration
- Blanking Mode: Designed for door gap installations, intelligently detects individual beam blockages and reverses door movement upon detecting obstructions
- Normal Mode: Installed on either side of a doorway, triggers instantaneous door reopening signal when any beam is interrupted
High-Precision Object Detection
- 100mm beam spacing ensures accurate detection of personnel and objects
- Ultra-fast response time of ≤20ms, suitable for high-speed automation processes
Energy-Efficient Operation
- Consumes only ≤4W of power, contributing to lower energy bills and sustainable manufacturing
Custom Beam Configurations
- Select from 4 to 16 beams to tailor detection zone to your operational layout
Technical Specifications
| Product Type | Safety Light Curtain Sensor |
| Waterproof Rating | IP67 (Full dustproof and waterproof) |
| Operating Voltage | 24V DC ± 10% |
| Power Consumption | ≤ 4W |
| Response Time | ≤ 20 milliseconds |
| Beam Count (Example) | 8 beams (CL10-8L) / 16 beams (CL10-16L) |
| Detection Range | Up to 8 meters* (affected by environment & beams) |
| Beam Spacing | 100mm |
| Operating Temperature | -25°C to +75°C |
| Humidity Tolerance | 95% (non-condensing) |
| Housing Material | High-impact aluminum alloy |
| Output Type | NPN or PNP (selectable) |
| Detection Principle | Photoelectric (light-based object sensing) |
| Mounting | Adjustable bracket for easy setup & alignment |
| Safety Certification | CE Certified (Certification No.: CTC142H1007801SC) |
Ideal Applications
Industrial Door Safety Solutions
- Rolling Doors: Prevent injuries during high-speed door operation
- Sectional Doors: Safeguard vertical lift doors for heavy equipment access
- High-Speed Doors: Essential for cold storage, pharmaceutical, and food production
- Foldable Doors: Ensure safety in tight, high-traffic areas
- Automatic Sliding Doors: Protect personnel in industrial and commercial zones
- Fire Doors: Enhance safety by detecting obstructions during closure
- Cold Storage Doors: Operate flawlessly in freezing conditions
Additional Industrial Use Cases
- Material Handling (Conveyor Systems): Prevent collisions between workers and machinery
- Robotic Arms: Instantly halt robotic operations when human presence is detected
- Automated Guided Vehicles (AGVs): Ensure safe navigation and obstacle avoidance
- Packaging Machinery: Stop high-speed packaging lines to protect products and operators
Why Choose Shenzhen JUTAI Communication Co., Ltd.?
Over a Decade of Industry Leadership
With more than 10 years of expertise in sensor manufacturing, JUTAI is a trusted name in delivering robust, efficient, and cost-effective safety solutions for the industrial sector.
Personalized Support & Customization
- Free on-site assessments to evaluate your specific safety requirements
- Bespoke product solutions designed to integrate seamlessly with existing systems
24/7 Dedicated Customer Assistance
Our round-the-clock support team is always ready to assist with technical inquiries, installation guidance, and troubleshooting, ensuring uninterrupted operational efficiency.
Get in Touch with JUTAI Today
Ready to enhance your industrial safety measures with premium-grade IP67 Waterproof Safety Light Curtains? Contact Shenzhen JUTAI Communication Co., Ltd. through the following channels:
