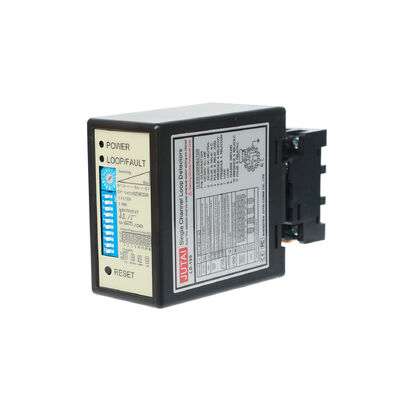

Parking Loop Sensor Single Channel Detector Auto Reset Delay Setting High Sensitivity for Truck

Place of Origin	China
Brand Name	JUTAI
Certification	CE
Model Number	LD-100
Minimum Order Quantity	1
Price	Negotiable
Packaging Details	Carton Parcking(13.58.55cm)/0.3kg/unit
Delivery Time	3-5 working days after receipt the payment
Payment Terms	T/T,L/C,D/A,D/P,Western Union,Paypal,,MoneyGram,Alipay
Supply Ability	10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Power Supplu	12-24v	Sensitivity	20-2000μH
Sensory Regulation	6 Way Selectable/Highest0.010%DL/L/ Lowest 2.56%DL/L	Frequency	Four Step Switch Selectable20-80KHz
Operation Tempts	-40℃ To +70℃ / (-111°F To +158°F)	Fault Output	Blinks Slowly: May Indicate A Short Circuit Or Insufficient Number Of Turns Blinks Faster: May Indicate An Open Loop Or Excessive Number Of Turns
Response Times	Turn-on 10-90MS / Turn-off 10-90MS	Relay	Presence Relay / Fault Relay
Highlight	single channel loop detector , auto reset parking sensor , high sensitivity truck detector

Leave a Message

Product Description

Parking Loop Sensor Single Channel Detector Auto Reset Delay Setting High Sensitivity for Truck 0

Parking Loop Sensor Single Channel Detector Auto Reset Delay Setting High Sensitivity for Truck

The parking loop sensor—tailored as a single-channel truck detection solution—combines high sensitivity, auto-reset functionality, and adjustable delay settings to deliver reliable vehicle sensing for heavy-duty trucks, commercial vehicles, and large passenger cars in parking scenarios. Engineered for precision in parking lots, truck terminals, logistics parks, and commercial parking facilities, this single-channel loop detector excels at identifying large vehicles without false triggers, seamlessly integrating with parking barriers, access control systems, and occupancy monitoring tools.

Designed with truck-specific detection needs in mind, the high-sensitivity parking loop sensor features 16-level adjustable sensitivity (ranging from 0.010% to 2.56% DL/L), ensuring accurate recognition of heavy-duty trucks with thick metal bodies or complex undercarriage structures. Its single-channel design simplifies installation and wiring, while the configurable auto-reset delay (adjustable via DIP switches) allows customization for different parking scenarios—whether it’s short-term truck drop-offs or long-term parking. The detector supports dual power options (100–240V AC / 12–24V DC) and comes with a rugged, weatherproof housing, making it suitable for both indoor and outdoor parking environments.

Core Features of Parking Loop Sensor for Truck

High Sensitivity for Heavy-Duty Vehicles: Optimized sensitivity range to reliably detect trucks, commercial vans, and large SUVs, even with varying metal compositions or load weights.
Single Channel Design: Streamlined single-channel configuration for straightforward installation, wiring, and integration with parking access control systems.
Auto Reset & Adjustable Delay: Configurable auto-reset function and delay settings (via DIP switches) to adapt to truck parking workflows—from quick entry/exit to extended stays.
Anti-Interference Performance: 4-step selectable frequency range (20–80 kHz) and advanced signal filtering to avoid interference from adjacent loops, metal structures, or parking equipment.
Intuitive Operation: LED indicators (red for power, green for detection) and a manual reset button enable on-site staff to monitor status and troubleshoot easily.
All-Weather Durability: Weatherproof housing and wide operating temperature range (-40°C to +70°C) withstand rain, dust, extreme heat, and cold, ensuring year-round reliability.

Technical Specifications

Parameter	Specification
Product Name	Parking Loop Sensor / Single-Channel Truck Loop Detector
Model	LD100 (AC Power) / LD102 (DC Power)
Power Supply	100–240V AC (LD100) / 12–24V DC (LD102)
Target Vehicles	Trucks, commercial vehicles, large SUVs, heavy-duty vans
Channel Quantity	Single Channel
Frequency Range	20–80 kHz (4-step selectable)
Sensitivity	16-level adjustable (0.010% to 2.56% DL/L)
Response Time	10–90 ms (on/off)
Auto Reset Function	Configurable via DIP switches
Delay Setting	Adjustable delay for detection/reset (customizable)
Operating Temperature	-40°C to +70°C
Relay Output	Presence Relay + Pulse/Fault Relay (SPDT)
Status Indicators	Power LED (Red) + Detection LED (Green)
Humidity Tolerance	Up to 95% RH (non-condensing)
Loop Inductance Range	20–2000 µH
Maximum Installation Distance	Up to 30 m (shielded cable recommended for >10 m)
Housing Protection	Weatherproof (IP-rated for parking environments)
Warranty	2-year manufacturer’s warranty
Technical Support	24/7 professional technical support

Parking Applications for Truck Detection

This single-channel parking loop sensor is ideal for:

Truck Parking Lots & Terminals: Heavy-duty truck occupancy detection, entry/exit barrier control, and parking space management.
Logistics & Distribution Centers: Truck access control, loading dock parking detection, and fleet parking scheduling.
Commercial Parking Facilities: Large vehicle (truck, van) detection for shopping malls, stadiums, and industrial parks.
Highway Rest Areas: Truck parking space occupancy monitoring and access control for long-haul vehicles.
Warehouse Parking Zones: Forklift and delivery truck detection for internal parking management and safety control.
EV Truck Charging Stations: Parking bay occupancy detection for electric trucks and commercial EVs.
Port & Airport Parking: Heavy-duty vehicle detection for cargo trucks, service vehicles, and airport logistics fleets.

Built to meet the unique demands of truck parking detection, this high-sensitivity single-channel loop detector balances precision, durability, and ease of use. Its auto-reset and delay settings, combined with truck-optimized sensitivity, make it a trusted solution for facility managers seeking to streamline parking operations, enhance security, and improve the overall experience for truck drivers. Backed by a 2-year warranty and round-the-clock technical support, it’s a reliable investment for any parking facility handling heavy-duty vehicles.

Parking Loop Sensor Single Channel Detector Auto Reset Delay Setting High Sensitivity for Truck 1

DIP Switch Configuration

DIP 1 and 2 Delay and sensitivity boost
DIP 3 and 4 Relay B output mode pulse presence test
DIP 5 Auto reset 30 min or permanent presence
DIP 6 to 8 Relay A delay 0 to 30 sec
DIP 9 and 10 Frequency selection High Low to avoid interference

Loop Installation Guide

Loop Perimeter	Recommended Turns
3 to 4 m	6 turns
4 to 6 m	5 turns
6 to 10 m	4 turns
10 to 20 m	3 turns
Over 20 m	2 turns

Why Choose JUTAI Loop Detector

15 plus years of manufacturing expertise
Rigorous quality control and pre shipment testing
OEM ODM customization available
Small and bulk orders accepted
2 year warranty and reliable after sales support
Market protection for distributors

Order Now and Enhance Your Vehicle Detection System with JUTAIs Professional Loop Detector

Parking Loop Sensor Single Channel Detector Auto Reset Delay Setting High Sensitivity for Truck 2
Switch 2 (Dipswitch Settings)

1.DIP 1 & DIP 2 Setting Special Functions

2.DIP 3 & DIP 4 Setting Relay B Output

3. DIP 5 Setting Automatic Reset

4. DIP 6 & DIP 7 & DIP 8 Setting Relay A Delay
Parking Loop Sensor Single Channel Detector Auto Reset Delay Setting High Sensitivity for Truck 6

5. DIP 9 & DIP 10 Setting Frequency (40 K to 100 KHz). Used to avoid the interference

Loop Installation:

Trouble Shooting:

Compared to other brands

Mass Production:

Our production line ensures efficient mass production, rigorous quality control, and thorough pre-shipment testing to deliver Loop detector products of the utmost perfection.

Parking Loop Sensor Single Channel Detector Auto Reset Delay Setting High Sensitivity for Truck 11

LD-100 single channel, boxed, 1 type 11pin connects 100-240VAC(EU standard)
LD-102 single channel, boxed, 1 type 11pin connects 12-24VADC(EU standard)
LD-105 single channel, boxed, 2 type 11pin connects 100-240VAC(USA standard)
LD-106 single channel, boxed, 2 type 11pin connects 12-24VADC(USA standard)

Parking Loop Sensor Single Channel Detector Auto Reset Delay Setting High Sensitivity for Truck 13
