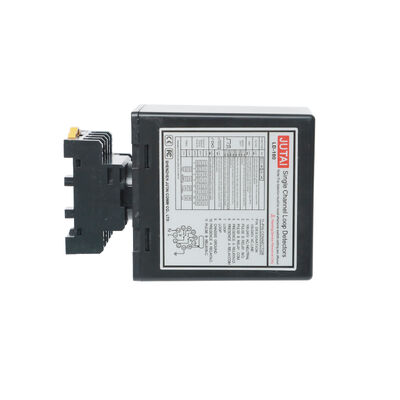

Vehicle Detection Loop Sensor Pulse Presence Modes Easy Installation 2 Year Warranty

  • Vehicle Detection Loop Sensor Pulse Presence Modes Easy Installation 2 Year Warranty
  • Vehicle Detection Loop Sensor Pulse Presence Modes Easy Installation 2 Year Warranty
Place of Origin China
Brand Name JUTAI
Certification CE
Model Number LD-100
Minimum Order Quantity 1
Price Negotiable
Packaging Details Carton Parcking(13.5*8.5*5cm)/0.3kg/unit
Delivery Time 3-5 working days after receipt the payment
Payment Terms T/T,L/C,D/A,D/P,Western Union,Paypal,,MoneyGram,Alipay
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Power Supplu 12-24v Sensitivity 20-2000μH
Sensory Regulation 6 Way Selectable/Highest0.010%DL/L/ Lowest 2.56%DL/L Frequency Four Step Switch Selectable20-80KHz
Operation Tempts -40℃ To +70℃ / (-111°F To +158°F) Fault Output Blinks Slowly: May Indicate A Short Circuit Or Insufficient Number Of Turns
Blinks Faster: May Indicate An Open Loop Or Excessive Number Of Turns
Response Times Turn-on 10-90MS / Turn-off 10-90MS Relay Presence Relay / Fault Relay
Highlight

vehicle detection loop sensor with warranty

,

loop detector pulse presence modes

,

easy installation loop detector sensor
Leave a Message
Product Description

Vehicle Detection Loop Sensor Pulse Presence Modes Easy Installation 2 Year Warranty 0

Vehicle Detection Loop Sensor: Pulse & Presence Modes, Easy Installation with 2-Year Warranty

The vehicle detection loop sensor—also known as a loop detector or traffic loop sensor—is a user-friendly, high-performance vehicle sensing solution designed to simplify access control, parking management, and traffic monitoring tasks. Engineered with dual operational modes (Pulse + Presence), hassle-free installation, and a robust 2-year warranty, this device delivers reliable detection of cars, trucks, motorcycles, and commercial vehicles across indoor and outdoor environments.
What makes this loop sensor stand out is its seamless usability: it comes pre-calibrated for most common loop configurations, paired with a clear wiring diagram and intuitive controls that eliminate the need for complex technical expertise. Whether you’re setting up a parking lot barrier, residential gate access, or traffic counting system, the easy installation process cuts down on labor time and costs. Complemented by dual working modes—Pulse Mode for trigger-based actions (e.g., gate activation, vehicle counting) and Presence Mode for continuous monitoring (e.g., parking bay occupancy, gate hold-open)—it adapts to diverse application needs without compromising precision.

Core Advantages of the Vehicle Detection Loop Sensor

  • Dual Operational Modes: Pulse Mode for momentary vehicle triggers and Presence Mode for continuous monitoring, offering flexibility for access control, parking, and traffic scenarios.
  • Tool-Free Easy Installation: Pre-calibrated settings, color-coded wiring, and a step-by-step guide make setup quick—ideal for both professional installers and on-site maintenance teams.
  • 2-Year Manufacturer’s Warranty: Backed by a comprehensive 2-year warranty, ensuring peace of mind and long-term reliability for commercial and residential applications.
  • Universal Vehicle Detection: 16-level adjustable sensitivity (0.010% to 2.56% DL/L) reliably detects vehicles of all sizes, from motorcycles to heavy-duty trucks, with minimal false triggers.
  • Intuitive Status Monitoring: LED indicators for power (red) and detection (green) let users instantly track device performance, while a manual reset button simplifies troubleshooting.
  • All-Weather Reliability: Rugged, weatherproof housing (IP-rated) withstands rain, dust, extreme temperatures (-40°C to +70°C), and humidity up to 95% (non-condensing), ensuring year-round operation.

Technical Specifications

Parameter Specification
Product Name Vehicle Detection Loop Sensor / Loop Detector
Model LD100 (AC Power) / LD102 (DC Power)
Power Supply 100–240V AC (LD100) / 12–24V DC (LD102)
Detected Vehicles Cars, trucks, motorcycles, commercial vehicles, forklifts
Operational Modes Pulse Mode + Presence Mode
Frequency Range 20–80 kHz (4-step selectable)
Sensitivity 16-level adjustable (0.010% to 2.56% DL/L)
Response Time 10–90 ms (on/off)
Operating Temperature -40°C to +70°C
Relay Outputs Presence Relay (SPDT) + Pulse/Fault Relay (SPDT)
Status Indicators Red Power LED + Green Detection LED
Reset Function Manual reset button + configurable auto-reset
Humidity Tolerance Up to 95% RH (non-condensing)
Loop Inductance Range 20–2000 µH
Maximum Installation Distance Up to 30 m (shielded cable recommended for >10 m)
Housing Protection Weatherproof (IP-rated for indoor/outdoor use)
Warranty 2-year manufacturer’s warranty
Technical Support 24/7 professional technical assistance

Versatile Applications

This easy-to-install loop sensor is perfect for:
  • Residential & Commercial Gate Access: Automated gate activation for communities, office parks, and retail centers.
  • Parking Lot Management: Entry/exit barrier control, parking space occupancy monitoring, and counting systems.
  • Industrial Automation: Forklift and truck detection for warehouses, loading docks, and factory access control.
  • Traffic Monitoring: Vehicle counting, traffic flow data collection, and intersection presence detection.
  • Drive-Through Facilities: Car wash, bank, and fast-food drive-through vehicle detection and automation.
  • EV Charging Stations: Parking bay occupancy detection for electric vehicle charging points.
  • Public Transit Hubs: Bus station and airport shuttle vehicle detection for scheduling and access control.
  • Security Barriers: Restricted area access control for government buildings, military facilities, and data centers.
Designed for simplicity without sacrificing performance, this vehicle detection loop sensor is the ideal choice for anyone seeking a reliable, low-maintenance sensing solution. Its dual modes, easy installation, and 2-year warranty make it suitable for both small-scale residential projects and large commercial/industrial setups. Backed by round-the-clock technical support, it ensures consistent operation and maximizes return on investment for years to come.

Vehicle Detection Loop Sensor Pulse Presence Modes Easy Installation 2 Year Warranty 1

DIP Switch Configuration

DIP 1 and 2 Delay and sensitivity boost
DIP 3 and 4 Relay B output mode pulse presence test
DIP 5 Auto reset 30 min or permanent presence
DIP 6 to 8 Relay A delay 0 to 30 sec
DIP 9 and 10 Frequency selection High Low to avoid interference

Loop Installation Guide


Loop Perimeter Recommended Turns
3 to 4 m 6 turns
4 to 6 m 5 turns
6 to 10 m 4 turns
10 to 20 m 3 turns
Over 20 m 2 turns

Why Choose JUTAI Loop Detector

15 plus years of manufacturing expertise
Rigorous quality control and pre shipment testing
OEM ODM customization available
Small and bulk orders accepted
2 year warranty and reliable after sales support
Market protection for distributors

Order Now and Enhance Your Vehicle Detection System with JUTAIs Professional Loop Detector

Contact us for samples pricing and custom solutions

 Vehicle Detection Loop Sensor Pulse Presence Modes Easy Installation 2 Year Warranty 2
Switch 2 (Dipswitch Settings)


1.DIP 1 & DIP 2 Setting Special Functions
Vehicle Detection Loop Sensor Pulse Presence Modes Easy Installation 2 Year Warranty 3

2.DIP 3 & DIP 4 Setting Relay B Output
Vehicle Detection Loop Sensor Pulse Presence Modes Easy Installation 2 Year Warranty 4

3. DIP 5 Setting Automatic Reset
Vehicle Detection Loop Sensor Pulse Presence Modes Easy Installation 2 Year Warranty 5

4. DIP 6 & DIP 7 & DIP 8 Setting Relay A Delay
Vehicle Detection Loop Sensor Pulse Presence Modes Easy Installation 2 Year Warranty 6

5. DIP 9 & DIP 10 Setting Frequency (40 K to 100 KHz). Used to avoid the interference

Vehicle Detection Loop Sensor Pulse Presence Modes Easy Installation 2 Year Warranty 7



Loop Installation:
Vehicle Detection Loop Sensor Pulse Presence Modes Easy Installation 2 Year Warranty 8

Trouble Shooting:

Vehicle Detection Loop Sensor Pulse Presence Modes Easy Installation 2 Year Warranty 9

Compared to other brands

Vehicle Detection Loop Sensor Pulse Presence Modes Easy Installation 2 Year Warranty 10

Mass Production:

Our production line ensures efficient mass production, rigorous quality control, and thorough pre-shipment testing to deliver Loop detector products of the utmost perfection.

Vehicle Detection Loop Sensor Pulse Presence Modes Easy Installation 2 Year Warranty 11
Vehicle Detection Loop Sensor Pulse Presence Modes Easy Installation 2 Year Warranty 12

LD-100 single channel, boxed, 1 type 11pin connects 100-240VAC(EU standard)
LD-102 single channel, boxed, 1 type 11pin connects 12-24VADC(EU standard)
LD-105 single channel, boxed, 2 type 11pin connects 100-240VAC(USA standard)
LD-106 single channel, boxed, 2 type 11pin connects 12-24VADC(USA standard)

Vehicle Detection Loop Sensor Pulse Presence Modes Easy Installation 2 Year Warranty 13
Vehicle Detection Loop Sensor Pulse Presence Modes Easy Installation 2 Year Warranty 14
Certification:
Vehicle Detection Loop Sensor Pulse Presence Modes Easy Installation 2 Year Warranty 15
Vehicle Detection Loop Sensor Pulse Presence Modes Easy Installation 2 Year Warranty 16
