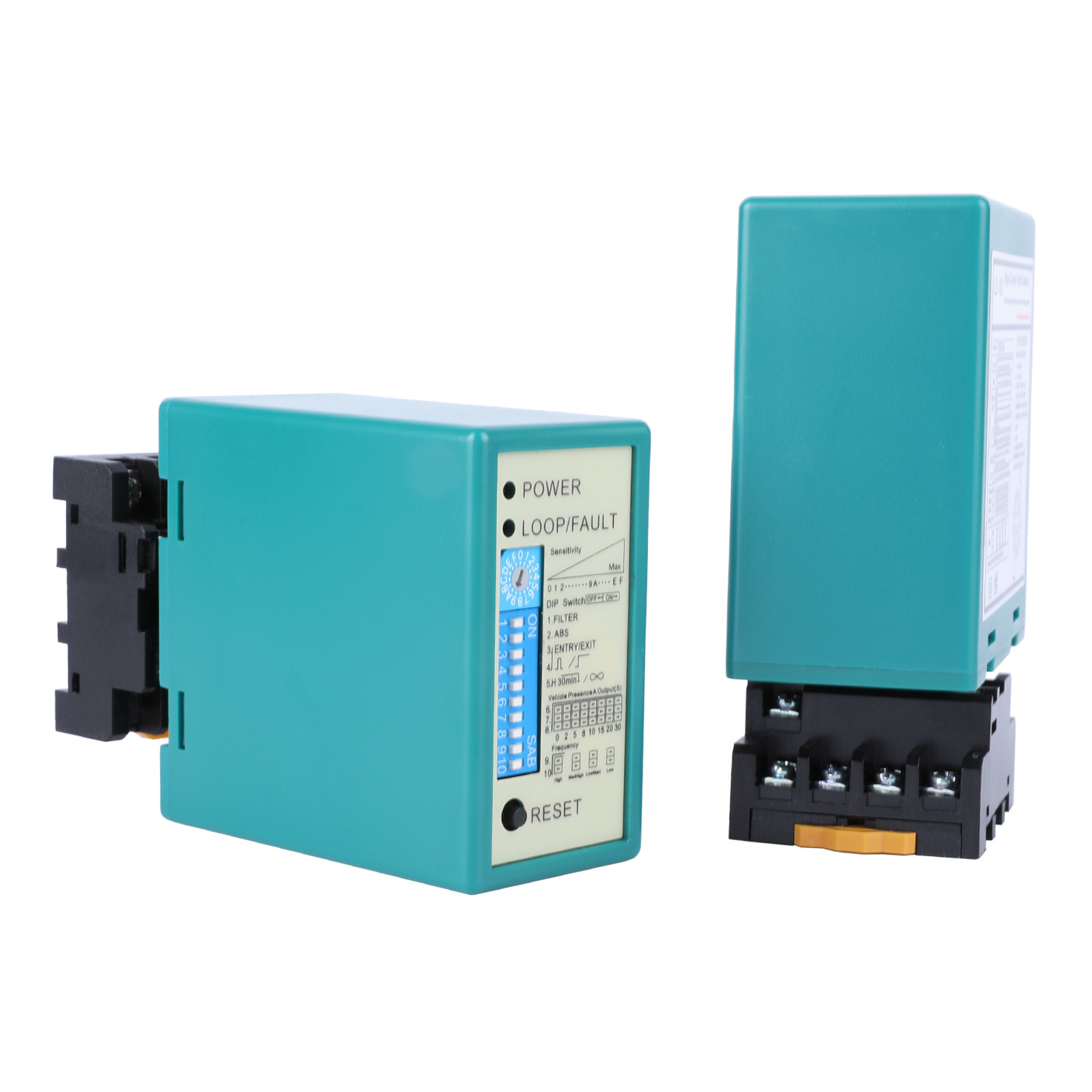

Loop Detector LD Series Single And Dual Channel High Sensitivity Weatherproof Housing
| Place of Origin | China |
|---|---|
| Brand Name | JUTAI |
| Certification | CE |
| Model Number | LD-202 |
| Document | LD-200.202.pdf |
| Minimum Order Quantity | 1 |
| Price | Negotiation |
| Packaging Details | Carton |
| Delivery Time | 5 - 8 working days |
| Payment Terms | T/T,L/C,D/A,D/P,Western Union,Paypal,,Alipay |
| Supply Ability | 1000 pieces per month |
Product Details
| Power Requirements | 12-24V | Self-Turning Range | 20-2000uh |
|---|---|---|---|
| Sensitivity | 16-Way Selectable/ Highest 0.010%Dl/L/Lowest 2.56% | Operation Temp | -40 ~ +70℃ |
| Response Times | Turn-on 10-90ms/Turn-off 10-90ms | Specification | 13.6*8.6*5.2 |
| Highlight | Loop Detector LD Series high sensitivity,Loop Detector weatherproof housing,Loop Detector single dual channel |
||
Product Description
Loop Detector LD Series: Single And Dual Channel With High Sensitivity & Weatherproof Housing
JUTAI LD Series loop detectors (single-channel LD100/LD102 and dual-channel LD200/LD202) are industrial-grade vehicle detection solutions engineered with high sensitivity and weatherproof housing, tailored for harsh outdoor and indoor applications including parking management, traffic control, and industrial door automation. This series combines adjustable precision sensing with rugged durability, delivering reliable performance in rain, dust, extreme temperatures, and high-traffic environments.
Product Range
- Single-Channel Models (LD100 AC / LD102 DC): Equipped with 16-level high sensitivity adjustment, ideal for basic presence/pulse detection scenarios like gate activation and single-lane sensing.
- Dual-Channel Models (LD200 AC / LD202 DC): Features 8-level independent high sensitivity per channel + directional detection, designed for advanced use cases such as entry/exit counting and bidirectional traffic monitoring.
All LD Series detectors boast IP-rated weatherproof housing, ensuring protection against water, dust, and corrosion—critical for outdoor deployments in parking lots, roadways, and industrial yards.
Key Features
- High Sensitivity Precision: Single-channel models offer 16-level sensitivity tuning (0.015%-0.8% DL/L); dual-channel models provide 8-level independent adjustment per channel.
- IP-Rated Weatherproof Housing: Rugged, sealed housing protects against water ingress, dust accumulation, and corrosion.
- Dual Channel Directional Detection (LD200/LD202 Exclusive): 3 configurable direction modes accurately identify vehicle travel direction.
- Industrial-Grade Durability: Wide operating temperature range (-40°C to +70°C) and 95% non-condensing humidity tolerance.
- Anti-Interference Design: 4-step selectable frequency eliminates cross-talk with adjacent loops.
- Easy Configuration & Integration: DIP switch control for sensitivity, frequency, and operating modes.
- Real-Time Status Monitoring: LED indicators for power, detection status, and loop faults.
Technical Specifications
| Parameter | Single-Channel (LD100 / LD102) | Dual-Channel (LD200 / LD202) |
|---|---|---|
| Power Supply | 100-240V AC or 12-24V DC | 100-240V AC or 12-24V DC |
| Detection Channels | 1 | 2 Independent Channels |
| Sensitivity Adjustment | 16-level (high sensitivity) | 8-level per channel (high sensitivity) |
| Frequency Selection | 4-step (20-80 kHz) | 4-step (20-100 kHz) |
| Direction Detection | Not Available | Yes (3 modes, DIP switch configurable) |
| Weatherproof Rating | IP-Rated Weatherproof Housing | IP-Rated Weatherproof Housing |
| Operating Temperature | -40°C to +70°C | -40°C to +70°C |
| Humidity Tolerance | Up to 95% RH (non-condensing) | Up to 95% RH (non-condensing) |
| Relay Outputs | 2 (Presence + Pulse/Fault) | 2 (One per channel: COM + NO) |
| Response Time | 10-90 ms | 10-90 ms |
| Loop Inductance Range | 20-2000 µH | 20-2000 µH per channel |
Loop Installation Guide
| Loop Perimeter | Recommended Wire Turns |
|---|---|
| 3-4 meters | 6 turns |
| 4-6 meters | 5 turns |
| 6-10 meters | 4 turns |
| 10-20 meters | 3 turns |
| Over 20 meters | 2 turns |
Weatherproof housing allows outdoor mounting; seal loop wires with quick-set epoxy to withstand road traffic and environmental wear. For dual-channel directional detection, install loops 1m apart along travel paths.
Ideal Applications
Single-Channel (LD100/LD102)
- Outdoor parking gate automation
- Industrial door activation (warehouses, loading docks)
- Security boom gate control
- Basic vehicle presence sensing for access points
Dual-Channel (LD200/LD202)
- Outdoor car park entry/exit counting systems
- Traffic flow monitoring and direction analysis
- Toll booth vehicle classification
- Dual-lane access control in industrial parks
- Bidirectional traffic management for roadways
Why Choose JUTAI LD Series Loop Detectors?
- High Sensitivity & Weatherproof Design: Optimized for outdoor and harsh environments
- Comprehensive Product Range: Single and dual-channel models for all detection needs
- 15+ Years of Expertise: Specialized in vehicle detection technology
- OEM/ODM Support: Customizable solutions for specific projects
- 2-Year Warranty: Backed by manufacturer's warranty and technical support
Selecting the Right LD Series Model
- Choose LD100/LD102 (Single-Channel) for basic high-sensitivity presence/pulse detection
- Choose LD200/LD202 (Dual-Channel) for high-sensitivity directional detection or dual-zone monitoring
Order Now
Contact us today to request samples, get customized quotes, or consult technical details. JUTAI LD Series loop detectors deliver high sensitivity, weatherproof durability, and reliable performance for your vehicle detection projects.
