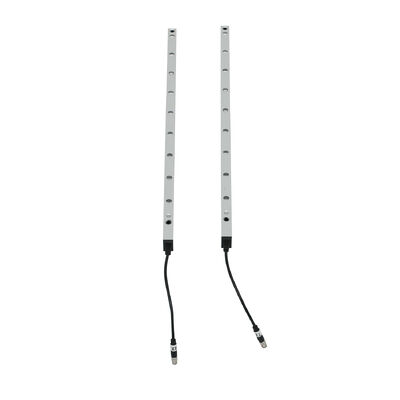

Industrial Safety Light Curtain IP67 Waterproof for High Speed Doors and Cold Storage Doors
Product Details
| IP Rating | IP67 | Function | Blanking |
|---|---|---|---|
| Sensing Distance | 8m | Material | Aluminum Alloy |
| Feature | Corrosion Resistant | Power Voltage | DC12-24V |
| Operating Temperature | -20~60℃ | Operating Current | <50mA |
| Output | No/Nc, COM | Working Current | <20mA@DC12V |
| Specification | 2000*21*15 Mm | ||
| Highlight | IP67 waterproof safety light curtain,industrial light curtain for high speed doors,cold storage door safety light curtain |
||
Product Description
JUTAI CL Series IP67 Waterproof Safety Light Curtain – Comprehensive Protection for Industrial Doors and Automated Systems
The JUTAI CL Series Safety Light Curtain is a high performance protective sensing device designed to ensure personnel and operational safety in various industrial and commercial environments With its robust IP67 waterproof construction and reliable detection technology this safety light curtain provides an invisible protective barrier that instantly responds to intrusions preventing accidents and equipment damage
This product series offers multiple models with varying lengths and beam configurations to suit different door sizes and safety requirements From compact 500mm units to large 2500mm systems each light curtain is engineered for durability precision and ease of integration with existing door control systems
Product Series Overview
The CL Series includes 9 models with two beam configurations and five length options:
| Model | Length | Beam Quantity | Detection Range | Beam Spacing | Power Consumption | Response Time |
|---|---|---|---|---|---|---|
| CL05-8L | 500mm | 8 beams | Up to 8 meters* | 100mm | ≤4W | ≤20ms |
| CL10-8L | 1000mm | 8 beams | Up to 8 meters* | 100mm | ≤4W | ≤20ms |
| CL10-16L | 1000mm | 16 beams | Up to 8 meters* | 100mm | ≤4W | ≤20ms |
| CL15-8L | 1500mm | 8 beams | Up to 8 meters* | 100mm | ≤4W | ≤20ms |
| CL15-16L | 1500mm | 16 beams | Up to 8 meters* | 100mm | ≤4W | ≤20ms |
| CL20-8L | 2000mm | 8 beams | Up to 8 meters* | 100mm | ≤4W | ≤20ms |
| CL20-16L | 2000mm | 16 beams | Up to 8 meters* | 100mm | ≤4W | ≤20ms |
| CL25-8L | 2500mm | 8 beams | Up to 8 meters* | 100mm | ≤4W | ≤20ms |
| CL25-16L | 2500mm | 16 beams | Up to 8 meters* | 100mm | ≤4W | ≤20ms |
*Actual detection range may vary based on environmental conditions
Key Features and Benefits
Superior Protection Rating
IP67 waterproof and dustproof certification ensures reliable operation in harsh environments including wet dusty and extreme temperature conditions The hermetically sealed aluminum alloy housing withstands water immersion and heavy dust exposure
Wide Temperature Tolerance
Operating temperature range from 20℃ to +60℃ with special models capable of functioning in temperatures as low as 25℃ making it ideal for cold storage facilities freezer rooms and outdoor applications
Dual Operation Modes
Normal Mode Provides complete protection across the entire detection area triggering immediate safety responses when any beam is interrupted
Blanking Mode Specifically designed for door gap applications where sequential beam blockage during door closure is expected without triggering false alarms
High Precision Detection
100mm beam spacing with ability to detect objects as small as 50mm ensuring comprehensive protection against potential hazards
Safety Compliance
CE certified and compliant with EN 61496 safety standards for machinery ensuring international safety compliance and reliability
Energy Efficient Design
Low power consumption less than 4W reduces operational costs and environmental impact while maintaining high performance
Easy Installation and Integration
Standard M8 connectors and adjustable mounting brackets simplify installation and integration with various door control systems
Visual Status Indicators
LED indicators on both transmitter and receiver units provide clear operational status including normal operation beam blockage alignment status and power conditions
Primary Applications
Industrial Door Systems
- High Speed Doors Immediate stopping and reversal of rapidly closing doors in manufacturing plants distribution centers and logistics facilities
- Cold Storage Doors Reliable operation in low temperature and high humidity environments preventing door closure on personnel or equipment
- Roller Shutter Doors Protection against entrapment in warehouses retail spaces and industrial facilities
- Sectional Doors Safety monitoring for large industrial doors in factories and warehouses
- Fire Doors Ensuring safe automatic closure without endangering personnel during emergency situations
- Garage Doors Residential and commercial garage door safety protection
Material Handling and Automation
Conveyor Systems Protecting operators at loading and transfer points
Robotic Work Cells Creating safe zones around automated equipment
AGV Pathways Ensuring safety in automated guided vehicle routes
Packaging Lines Preventing operator injury near moving machinery
Loading Docks Protecting personnel during truck loading and unloading operations
Specialized Environments
Food Processing Plants Withstanding washdown procedures and high humidity
Pharmaceutical Facilities Meeting cleanroom and safety requirements
Automotive Manufacturing Protecting workers near automated assembly lines
Warehouse and Logistics Ensuring safety around automated storage and retrieval systems
Technical Specifications
| Parameter | Specification |
|---|---|
| Working Voltage | DC12-24V ±10% |
| Working Current | Transmitter <65mA @DC12V Receiver <20mA @DC12V |
| Output Configuration | NO/NC relay output (configurable) |
| Protection Rating | IP67 (Dustproof and Waterproof) |
| Housing Material | Aluminum Alloy |
| Operating Range | 1-8 meters (transmitter to receiver) |
| Maximum Protection Height | Up to 1729mm (model dependent) |
| Number of Beams | 8 or 16 beams (model dependent) |
| Beam Spacing | 100mm |
| Response Time | ≤20ms |
| Operating Temperature | -20℃ to +60℃ (extended range available) |
| Cable Length | Transmitter 8m Receiver 4m |
| Connector Type | 5-pole M8 male connector |
| Safety Standards | CE EN 61496 |
Installation and Configuration
The safety light curtain features straightforward installation with clear mounting guidelines and alignment procedures The system includes:
Flexible mounting options for vertical or horizontal installation
Easy alignment procedure with visual indicators
Simple wiring with color coded cables
Configurable output modes (NO/NC) through easy setup procedure
Blanking mode activation for specific application requirements
Troubleshooting and Maintenance
The system includes comprehensive diagnostic capabilities with LED indicators showing:
Normal operation status
Beam alignment conditions
Power supply issues
Beam obstruction detection
Regular maintenance involves simple cleaning of optical surfaces and verification of alignment ensuring long term reliable performance
Why Choose JUTAI Safety Light Curtains
Proven Reliability
Manufactured with high quality components and rigorous testing procedures ensuring consistent performance in demanding industrial environments
Customization Capabilities
Multiple models and configurations available to match specific application requirements
Optional customization for special applications and environments
Global Compliance
Designed to meet international safety standards suitable for worldwide deployment
Technical Support
Comprehensive support including installation guidance troubleshooting assistance and application consulting
Competitive Advantage
High performance features at competitive pricing delivering excellent value for safety applications
Quality Assurance
Stringent quality control throughout manufacturing process with thorough testing before shipment
Ordering Information
The CL Series Safety Light Curtain is available in 9 standard models with options for different beam counts and lengths For specific requirements or customized solutions please contact our sales team with your application details
Package Includes
Transmitter unit
Receiver unit
Mounting brackets and hardware
Connection cables
User manual and installation guide
Contact Information
For product specifications pricing samples or technical consultation please contact
Shenzhen JUTAI Comm Co Ltd
Address SFA Building Xiangbo Industrial Park Zhualan Road Baidu Shenzhen China
Tel 0755 2627585
Website wwwjutajeshaecoscom
Ensure Workplace Safety with JUTAI Professional Safety Light Curtains
Protect your personnel safeguard your operations and meet safety compliance requirements with JUTAIs reliable and durable safety light curtain solutions
