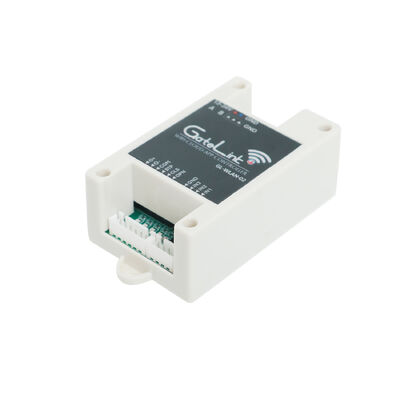

WIFI Smart Door Controller with HD Camera and Two Way Audio Remote Access System
| Place of Origin | China |
|---|---|
| Brand Name | GateLink |
| Model Number | GL-WLAN |
| Document | GateLink WIFI APP Controlle...er.pdf |
| Minimum Order Quantity | 1 |
| Price | Negotiation |
| Packaging Details | Cartoon |
| Delivery Time | 5 - 8 working days |
| Payment Terms | T/T,L/C,D/A,D/P,Western Union,Paypal,MoneyGram,Alipay |
| Supply Ability | 1000 pieces per month |
Product Details
| Relay Output | 4 Way | Relay Input | 3 Way |
|---|---|---|---|
| Communicate | WiFi/4G | Operating Temperature Range | -30 To 80 ℃ |
| Intelligent Safety Warning | Double - Notification For Abnormal Events (APP Pop - Up Alarm + Detailed Email Report); Physical Protection Linkage (forced Door Opening Triggers Alarm And Camera Automatically Takes Evidence) | Operation Counting And Health Diagnosis | Full - Cycle Statistics Of Device Opening And Closing Times And Running Duration; Maintenance Warning System With Threshold Triggering And Maintenance Report Generation |
| Highlight | Two Way Audio Remote Access System,HD Camera WIFI Smart Door Controller,Smart Door Controller Remote Access System |
||
Product Description
WIFI Smart Door Controller with HD Camera and Two Way Audio Remote Access System
The GateLink® WIFI Smart Door Controller is an all-in-one intelligent access solution that integrates remote door control, HD video monitoring, two-way audio intercom, and centralized management. It connects door hardware, cameras, and mobile devices via WiFi + BLE dual-network connectivity, allowing users to remotely operate doors, verify visitors, and manage access rights anytime, anywhere through a dedicated APP or PC software. Equipped with high-definition cameras supporting night vision and encrypted communication technology, it ensures security while delivering convenient access control. The built-in advertising platform and hierarchical management system further extend its value for residential, commercial, and industrial scenarios, making it a cost-effective, scalable intelligent door management solution.
Core System Components & Technical Parameters
1. Main Controller (Model: GL-WLAN-01)
| Parameter | Specification |
|---|---|
| Operating Voltage | DC 12V 1A (5V version customizable) |
| Load Capacity per Relay | DC 30V/1A, AC 125V/1A |
| Network Connectivity | WiFi + Bluetooth Low Energy (BLE) |
| Communication Protocol | MQTT, supports OTA (Over-The-Air) remote updates |
| Relay Outputs | 4 channels (3 share common terminal, 1 independent) |
| Digital Inputs | 3 non-isolated interfaces (for alarm triggers, limit switches, etc.) |
| Expansion Interface | 1x RS485 (for system extension) |
| Dimensions (L × W × H) | 96.5 x 50 x 31.4 mm |
2. HD Camera Options
| Parameter | GL-200H26-IR (Bullet Camera) | GL-R300H265-IR (360° Dome Camera) |
|---|---|---|
| Resolution | 2MP (1920*1080P) | 3MP (2304*1296) |
| Lens Specification | 3.6mm @F2.0 (M12 interface) | 2.8mm @F2.0 (M12 interface) |
| Night Vision | 6 LED lights, 20-30m IR range, IR-CUT day/night conversion | Infrared night vision, 0 Lux usable |
| Audio Function | Supports G711a audio compression | Built-in audio input/output |
| Protection Level | IP66 (dustproof + waterproof) | IP67 (dustproof + waterproof) |
| Power Supply | DC 12V ±10%, max power consumption 4W | DC 12V 2A, max power consumption ≤3W |
| Key Features | H.265AI video compression, motion detection alarm | 360° full coverage, H.265AI compression |
Key Functional Advantages
1. Remote Access & Intelligent Control
- Operate doors/gates anytime, anywhere via mobile APP: Open, close, stop, or hold open with a single tap
- Share access rights flexibly: Grant temporary or permanent permissions to family, employees, or visitors without physical keys
- Real-time door status feedback: Display "Open/Closed/Obstructed" status and operation cycle counts for maintenance reminders
2. HD Monitoring & Two-Way Intercom
- 2MP/3MP high-definition video: Capture clear images day and night, with IR night vision for 20-30m coverage in low light
- Instant two-way audio: Communicate with visitors, delivery personnel, or on-site personnel in real time without being physically present
- Intelligent alarm triggers: Receive notifications for motion detection, video loss, network disconnection, or IP conflicts
3. Centralized Project & Device Management
- Group multiple controllers into "Projects": Manage all doors/gates in one dashboard
- Hierarchical permission control: Assign different access levels to super admins, property managers, and regular users via the backend
- Comprehensive activity logging: Record all door operations and export logs for security audits or maintenance tracking
4. Built-in Advertising & Information Platform
- Customizable ad display: Show image/video ads in the APP's dedicated lower section
- Flexible link redirection: Users can click ads to jump to custom URLs for promotions, event notices, or community announcements
- Backend analytics: Track ad views and click-through rates for effective campaign management
5. Easy Installation & Secure Connection
- Simple wiring: Connect the controller to existing door motors/locks via relay outputs
- Plug-and-play setup: Complete installation in minutes without professional technical skills
- Encrypted communication: Protect user privacy and data security with advanced encryption technology
Application Scenarios
- Residential Communities & Gated Villas: Residents use the APP for keyless entry; property managers remotely manage gates, issue temporary visitor access, and push community notices via the ad platform
- Commercial Office Buildings: Employees access after-hours entrances via the APP; receptionists remotely screen and unlock doors for visitors
- Industrial Parks & Warehouses: Control access to loading docks, restricted zones, and main gates with alarm system integration
- Retail Stores & Logistics Centers: Staff remotely grant delivery drivers access to back entrances, improving logistics efficiency
- Rental Properties (Airbnb/Vacation Homes): Generate time-limited access codes for guests, eliminating key exchange hassle
- Schools & Hospitals: Manage access to classrooms, wards, or staff areas with safety notice sharing capabilities
Why Choose GateLink® WIFI Smart Door Controller?
- All-in-One Integration: Combines access control, video surveillance, and intercom in one compact system
- Scalable & Expandable: Suitable for single-door homes or large-scale projects with centralized management
- Dual Value of Security & Monetization: Built-in ad platform creates new revenue streams or communication channels
- Reliable Hardware & Software: Industrial-grade protection and regular OTA updates ensure long-term usability
- Professional Backend Support: Comprehensive user/device management, role-based permissions, and data analytics
Upgrade your door access system with intelligent control and multi-dimensional value. Contact us today to request a demo or customize a solution for your specific needs.
