GateLink WiFi Cloud App Controller for Gate Automation and Video Intercom
| Place of Origin | China |
|---|---|
| Brand Name | GateLink |
| Model Number | GL-WLAN |
| Document | GateLink WIFI APP Controlle...er.pdf |
| Minimum Order Quantity | 1 |
| Price | Negotiation |
| Packaging Details | Cartoon |
| Delivery Time | 5 - 8 working days |
| Payment Terms | T/T,L/C,D/A,D/P,Western Union,Paypal,,Alipay |
| Supply Ability | 1000 pieces per month |
Product Details
| Relay Output | 4 Way | Relay Input | 3 Way |
|---|---|---|---|
| Communicate | WiFi/4G | Operating Temperature Range | -30 To 80 ℃ |
| Intelligent Safety Warning | Double - Notification For Abnormal Events (APP Pop - Up Alarm + Detailed Email Report); Physical Protection Linkage (forced Door Opening Triggers Alarm And Camera Automatically Takes Evidence) | Operation Counting And Health Diagnosis | Full - Cycle Statistics Of Device Opening And Closing Times And Running Duration; Maintenance Warning System With Threshold Triggering And Maintenance Report Generation |
| Highlight | Gate Automation WiFi Cloud App Controller,Video Intercom WiFi Cloud App Controller |
||
Product Description

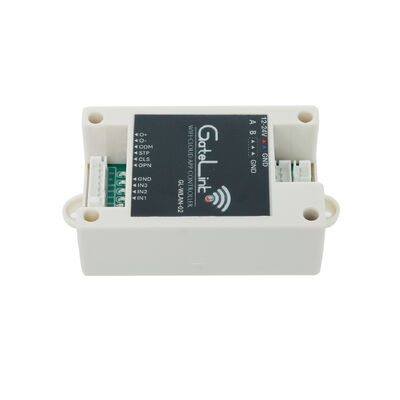

GateLink WiFi Cloud App Controller for Gate Automation and Video Intercom
Product Overview

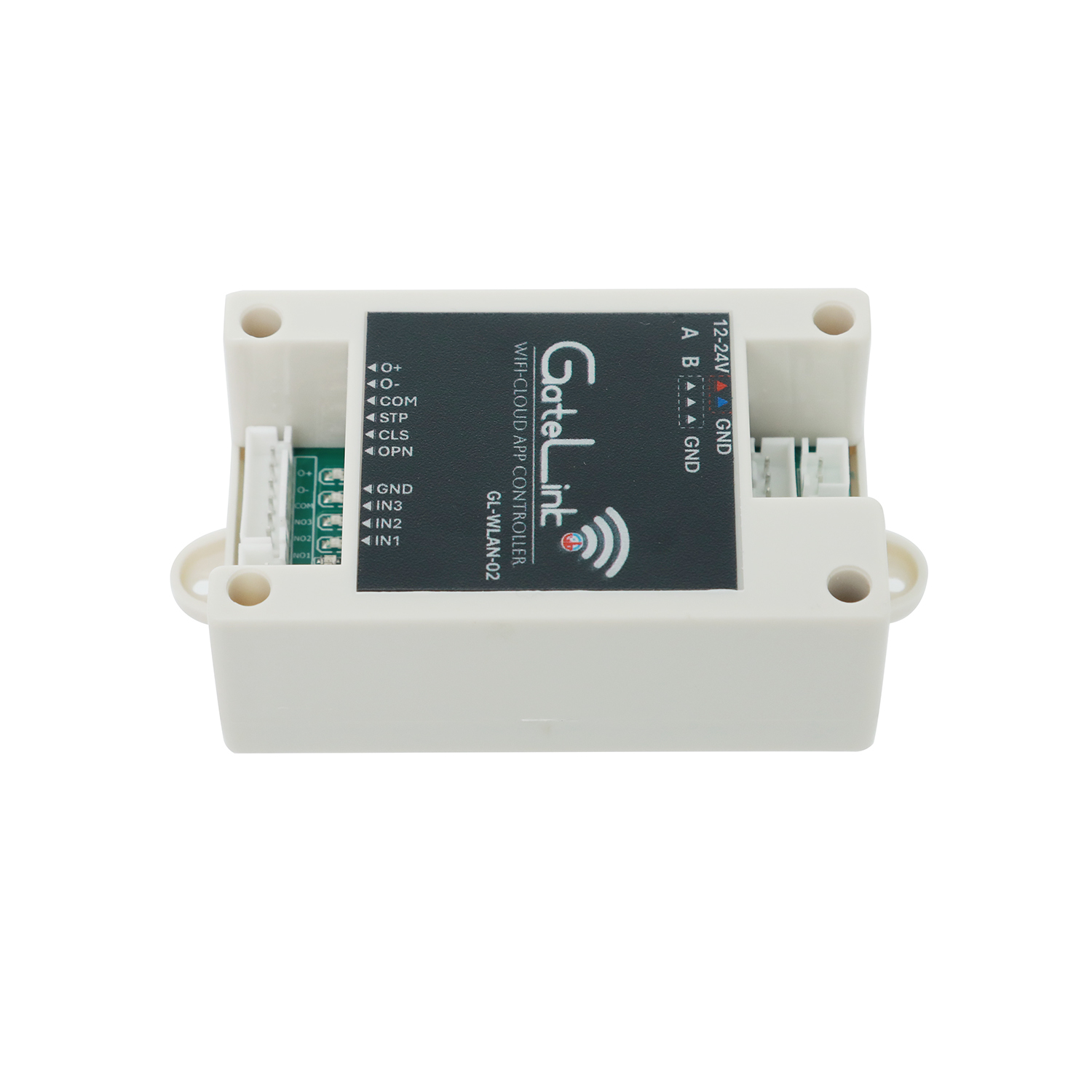

The GateLink WiFi Cloud App Controller (Model: GL-WLAN-01) is an intelligent core device that integrates gate automation, HD video intercom, and remote management. It connects gate motors, HD cameras, and mobile/PC terminals via WiFi + BLE dual-network connectivity, enabling users to remotely control gates, real-time monitor entrances, and communicate with visitors anytime, anywhere. With a compact design, rich interfaces, and encrypted cloud transmission, it delivers secure, convenient, and scalable access control solutions for residential communities, commercial buildings, industrial parks, and private properties.
Core Technical Specifications
| Parameter | Specification |
|---|---|
| Model | GL-WLAN-01 |
| Operating Voltage | DC 12V 1A (5V version customizable) |
| Load Capacity | DC 30V/1A, AC 125V/1A |
| Network Connectivity | WiFi + Bluetooth Low Energy (BLE) |
| Network Protocol | MQTT, supports OTA (Over-The-Air) remote updates |
| Relay Output | 4 channels (3 share common terminal, 1 independent) |
| Digital Input Interface | 3 non-isolated interfaces (for alarm triggers, limit switches) |
| Expansion Interface | 1x RS485 (for system extension) |
| Dimensions (L×W×H) | 96.5 x 50 x 31.4 mm |
| Compatible Cameras | GL-200H26-IR (2MP bullet), GL-R300H265-IR (3MP 360° dome) |
| APP Support | iOS (App Store), Android (Google Play, AppGallery) |
| PC Management | Supported (centralized project/device control) |
Key Functional Advantages
1. Gate Automation & Remote Control
- One-tap operation: Open, close, stop, or hold open gates via mobile APP, eliminating the need for on-site manual control.
- Flexible access sharing: Grant temporary or permanent access rights to family, employees, or visitors without physical keys/cards.
- Real-time status feedback: Display gate status (Open/Closed/Obstructed) and operation cycle counts for maintenance reminders.
- Offline backup: BLE connectivity ensures basic control even when WiFi is unstable.
2. HD Video Intercom Integration
- Dual camera options: Choose 2MP 1080P bullet camera (GL-200H26-IR) with 20-30m IR night vision, or 3MP 360° dome camera (GL-R300H265-IR) for full coverage.
- 24/7 live monitoring: Capture clear images day and night with H.265AI video compression, reducing bandwidth usage.
- Two-way audio communication: Talk to visitors, delivery personnel, or on-site staff in real time via the APP's intercom function.
- Intelligent alarms: Receive instant notifications for motion detection, video loss, or network disconnection.
3. Centralized Cloud Management
- Project grouping: Manage multiple controllers (e.g., community main gate, parking barriers, office entrances) in a single "Project" for unified oversight.
- Hierarchical permissions: Assign different access levels to super admins, property managers, and regular users via the web backend.
- Comprehensive logging: Record all gate operations (operator, time, method) and export logs for security audits.
- OTA remote updates: Automatically upgrade controller firmware to add new features and fix bugs.
4. Value-Added Advertising & Information Push
- Built-in ad interface: Display image/video ads in the APP's dedicated section (below the video feed) for commercial monetization or community notices.
- Custom link redirection: Users can click ads to jump to promotions, event pages, or official websites.
- Backend ad management: Upload content, set display duration, and track views/click-through rates via analytics tools.
5. Easy Installation & Secure Connection
- Simple wiring: Connect to gate motors via relay outputs (OPEN/CLOSE/STOP/COM) and integrate with cameras without complex configurations.
- Plug-and-play setup: Complete installation in minutes without professional technical skills.
- Encrypted transmission: Protect user data and privacy with advanced encryption technology for APP-cloud-controller communication.
Compatible Camera Specifications
| Camera Model | GL-200H26-IR (Bullet) | GL-R300H265-IR (Dome) |
|---|---|---|
| Resolution | 2MP (1920*1080P) | 3MP (2304*1296) |
| Lens | 3.6mm @F2.0 (M12 interface) | 2.8mm @F2.0 (M12 interface) |
| Night Vision | 6 IR LEDs, 20-30m range | Infrared night vision (0 Lux usable) |
| Protection Level | IP66 (dustproof + waterproof) | IP67 (dustproof + waterproof) |
| Power Supply | DC 12V ±10% (max 4W) | DC 12V 2A (max ≤3W) |
| Key Features | IR-CUT day/night conversion, motion detection | 360° full coverage, built-in audio |
Application Scenarios
- Residential Communities: Property managers remotely manage gates, issue visitor access, and push community notices via the ad platform. Residents use the APP for keyless entry and verify guests through video intercom.
- Commercial Office Buildings: Employees access after-hours entrances via the APP; receptionists screen visitors remotely and unlock doors. Administrators monitor access logs and display corporate promotions via ads.
- Industrial Parks & Warehouses: Control access to loading docks, restricted zones, and main gates. Integrate with alarm systems for security alerts and track personnel/vehicle entry/exit.
- Private Homes & Villas: Homeowners remotely grant access to housekeepers or couriers, monitor entrances, and communicate with visitors while away.
- Rental Properties (Airbnb/Vacation Homes): Generate time-limited access codes for guests, eliminating key exchange. Monitor property entrances for security.
- Schools & Hospitals: Manage access to classrooms, wards, or staff areas. Use the ad platform to share safety notices or event schedules.
Why Choose GateLink WiFi Cloud App Controller?
- All-in-One Integration: Combines gate automation, video monitoring, and intercom in one compact device, reducing equipment and installation costs.
- Scalable & Expandable: Suitable for single gates or large-scale projects with centralized cloud management.
- Dual-Network Reliability: WiFi + BLE ensures stable connectivity for both remote and on-site control.
- Professional Backend Support: Comprehensive user/device management, ad analytics, and firmware updates for long-term usability.
- Trusted Quality: Developed by Shenzhen JUTAI Comm Co., Ltd., a leader in access control and security solutions.
For technical support, customization, or bulk inquiries, visit our official website: https://www.accesssecuritysolution.com/
