Intelligent Gate Access System with Cloud Management Project and Group Control
| Place of Origin | China |
|---|---|
| Brand Name | GateLink |
| Model Number | GL-WLAN |
| Document | GateLink WIFI APP Controlle...er.pdf |
| Minimum Order Quantity | 1 |
| Price | Negotiation |
| Packaging Details | Cartoon |
| Delivery Time | 5 - 8 working days |
| Payment Terms | T/T,L/C,D/A,D/P,Western Union,Paypal,,Alipay |
| Supply Ability | 1000 pieces per month |
Product Details
| Relay Output | 4 Way | Relay Input | 3 Way |
|---|---|---|---|
| Communicate | WiFi/4G | Operating Temperature Range | -30 To 80 ℃ |
| Intelligent Safety Warning | Double - Notification For Abnormal Events (APP Pop - Up Alarm + Detailed Email Report); Physical Protection Linkage (forced Door Opening Triggers Alarm And Camera Automatically Takes Evidence) | Operation Counting And Health Diagnosis | Full - Cycle Statistics Of Device Opening And Closing Times And Running Duration; Maintenance Warning System With Threshold Triggering And Maintenance Report Generation |
| Highlight | Cloud Management Gate Access System,Group Control Gate Access System,Intelligent Gate Access System |
||
Product Description
Intelligent Gate Access System with Cloud Management Project and Group Control
The JUTAI GateLink Intelligent Gate Access System is a cloud-based integrated solution tailored for centralized management of multi-gate scenarios. Its core strengths lie in cloud-driven project grouping, batch group control, real-time monitoring, and hierarchical permission management.
By connecting multiple GL-WLAN-01 controllers to the JUTAI Cloud via WiFi + BLE dual networks, administrators can unify management of dozens of gates/doors through a dedicated APP or PC software—realizing one-stop device monitoring, remote operation, data statistics, and information push. Equipped with HD night-vision cameras and encrypted transmission, it balances centralized management efficiency, security, and commercial value, making it the preferred choice for large-scale scenarios such as communities, industrial parks, commercial complexes, and chain stores.
Core System Components & Technical Parameters

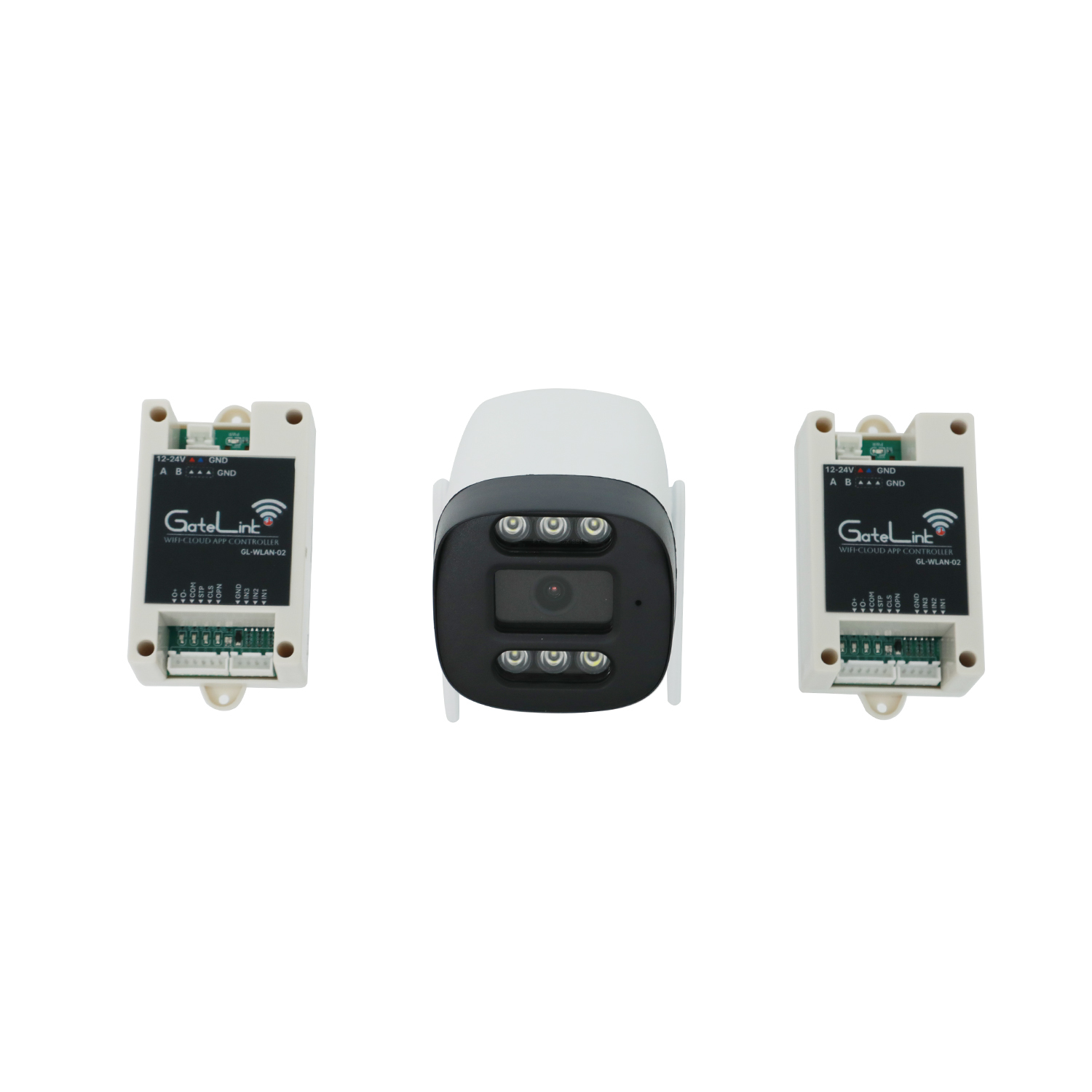

1. Main Controller (Model: GL-WLAN-01)
| Parameter | Specification |
|---|---|
| Operating Voltage | DC 12V 1A (5V version customizable) |
| Load Capacity | DC 30V/1A, AC 125V/1A |
| Network Connectivity | WiFi + Bluetooth Low Energy (BLE) |
| Communication Protocol | MQTT, supports OTA (Over-The-Air) remote updates |
| Relay Output | 4 channels (3 share common terminal, 1 independent) |
| Digital Input Interfaces | 3 non-isolated (for alarms, limit switches) |
| Expansion Interface | 1x RS485 (for system extension) |
| Dimensions (L×W×H) | 96.5 x 50 x 31.4 mm |
| Cloud Management | Supports project creation, device grouping, and centralized data synchronization |
| Compatible Platforms | iOS (App Store), Android (Google Play, AppGallery), PC management software |
2. Matching HD Monitoring Cameras
| Parameter | GL-200H26-IR (Bullet Camera) | GL-R300H265-IR (360° Dome Camera) |
|---|---|---|
| Resolution | 2MP (1920*1080P) | 3MP (2304*1296) |
| Lens Specification | 3.6mm @F2.0 (M12 interface) | 2.8mm @F2.0 (M12 interface) |
| Night Vision | 6 IR LEDs, 20-30m range, IR-CUT day/night conversion | Infrared night vision (0 Lux usable) |
| Video Compression | H.265AI (reduces bandwidth usage) | H.265AI |
| Audio Function | Supports G711a audio compression | Built-in audio input/output |
| Protection Level | IP66 (dustproof + waterproof) | IP67 (dustproof + waterproof) |
| Power Supply | DC 12V ±10%, max 4W | DC 12V 2A, max ≤3W |
| Intelligent Alarms | Motion detection, video loss, network disconnection, IP conflict | Motion detection, video loss |
| Operating Temperature | -10°C to +60°C | -10°C to +60°C |
Key Functional Advantages
Cloud-Based Project & Group Management
- Custom project creation: Add multiple GL-WLAN-01 controllers to a single "Project" for unified oversight
- Flexible group grouping: Divide gates in a project into subgroups for targeted management
- Centralized data synchronization: Real-time sync of all gate statuses and operation logs
Batch Group Control & Remote Operation
- One-tap batch control: Open/close/stop all gates in a group with a single operation
- Individual precision control: Switch between group and single-gate control freely
- Offline backup control: BLE connectivity ensures basic on-site control when WiFi is unstable
Real-Time HD Monitoring & Two-Way Intercom
- Multi-camera centralized viewing: Monitor live feeds of all gate cameras via the APP
- 24/7 all-scene coverage: Daytime color imaging + night infrared vision (20-30m range)
- Remote instant intercom: Communicate with visitors or on-site staff at any gate
Hierarchical Permission & User Management
- Role-based permissions: Assign 3-level roles (super admin, project manager, regular user)
- Detailed access logs: Record all user operations for security audits and accountability
- Granular access control: Manage permissions at project and device levels
Value-Added Advertising & Information Push
- Unified ad deployment: Upload image/video ads to the APP's dedicated ad area
- Ad performance analytics: Track views, click-through rates, and exposure duration
- Targeted notification push: Send project/group-specific alerts to all associated users
Smart Alarms & Easy Expansion
- Unified alarm center: Receive instant notifications for motion detection and device malfunctions
- Plug-and-play expansion: Add new controllers without reconfiguring the entire system
- Scalable architecture: Adapt to growing management needs with unlimited expansion
Application Scenarios
- Large Residential Communities: Create a project for the entire community, group gates by area. Property managers remotely control all gates, issue temporary visitor access, and push community notices.
- Industrial Parks & Warehouses: Group gates by functional zones. Administrators monitor access to all zones in real time and track personnel/vehicle entry/exit.
- Commercial Complexes & Malls: Centralize management of storefront doors, parking gates, and staff entrances. Batch-open all gates during opening hours and display promotional ads.
- Chain Stores & Retail Outlets: Manage doors of multiple branch stores in a single project. Headquarters remotely oversees store access status and pushes unified promotional information.
- Schools & Hospitals: Group campus gates, classroom doors, and staff entrances. Administrators control access hierarchically and receive real-time alerts for abnormal situations.
Why Choose JUTAI Intelligent Gate Access System?
- Cloud-Driven Centralized Efficiency: Manage dozens of gates in one project/group, reducing management costs
- Flexible Group Control: Batch or individual operation adapts to different scenario needs
- Hierarchical Security: Role-based permissions prevent unauthorized operations
- Dual-Network Reliability: WiFi enables remote cloud management, while BLE supports on-site emergency control
- All-in-One Integration: Combines access control, monitoring, intercom, advertising, and data analytics
- Scalable & Upgradeable: Supports unlimited project/group expansion and OTA firmware updates
