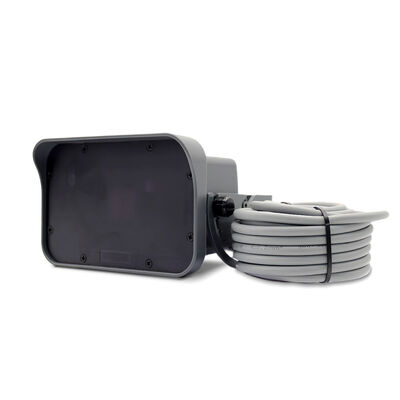

JUTAI RVP42-7M 24GHz Industrial Doppler Radar Motion Sensor

Vehicle & Pedestrian Recognition for Industrial Door, Gate & Access Control System

Product Overview

Core Competitive Advantages

1. High-Precision Intelligent Recognition



   Adopt 24.125GHz planar Doppler radar module, achieve 95% recognition accuracy for vehicles and pedestrians, support forward/backward/bidirectional movement detection, and can effectively distinguish between moving targets and static interference.

2. Ultra-Low False Trigger Rate



   Built-in 4-level adjustable lateral movement filtering function, can recognize and filter laterally moving pedestrians/vehicles; 2-level anti-interference mode, effectively suppress interference from fluorescent lamps, HID lamps, wireless systems, motors and inverters, the overall false trigger rate is controlled below 1%.

3. Industrial Grade Environmental Adaptation



   IP65 fully enclosed housing, can work stably in -30℃ to +60℃ harsh environment, 0%~95% non-condensing humidity adaptation, suitable for outdoor, cold storage, factory workshop and other complex scenarios.

4. Flexible & Easy Configuration



   5-level sensitivity adjustment, 0.2s-5s adjustable relay hold time, 7 groups of mounting height presets, multiple detection direction modes, can be flexibly set according to actual application scenarios, to achieve the best detection effect.

5. Fast Response & Reliable Output



   <50ms ultra-fast trigger response, support NO/NC configurable relay output, 12-36V wide voltage DC power supply, <100mA low power consumption, suitable for long-term stable operation in industrial systems.


Detailed Technical Specifications

Core Function Details

1. Multi-Mode Detection & Direction Recognition

2. Adjustable Lateral Movement Filtering

3. Flexible Relay Output Configuration

4. Strong Anti-Interference Performance

5. Easy Installation & Maintenance

Performance Comparison with Traditional Sensors

Typical Application Scenarios

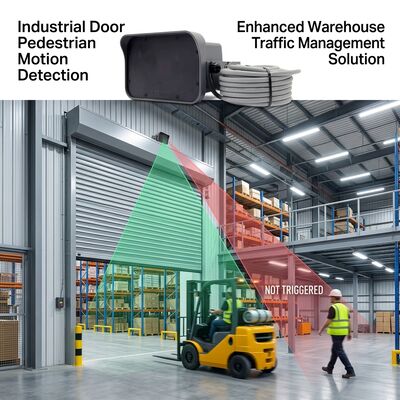

1. Industrial Automatic Doors: Rolling shutter doors, sliding doors, fast rolling doors in factories and workshops, detect forklifts and personnel to realize automatic door opening and closing.
2. Cold Storage & Freezer Doors: Low temperature resistant design, reliable operation in -30℃ environment, detect vehicles and personnel to avoid cold air leakage.
3. Warehouse Loading Docks: High-speed forklift detection, direction recognition, suitable for logistics warehouse dock doors, improve loading and unloading efficiency.
4. Smart Parking System: Road barriers, entrance and exit gates, vehicle and pedestrian recognition, precise vehicle counting and access control.
5. Garage Doors: Residential and commercial garage doors, detect vehicles and pedestrians, realize automatic opening and anti-pinch protection.
6. Access Control System: Community, office building, factory entrance gates, pedestrian and vehicle access management, cooperate with access control system to realize automatic control.

Installation Notes

1. The sensor should be firmly installed on a flat and stable surface to avoid vibration effects.
2. Avoid blocking the detection area with swaying objects such as banners, plants, etc.
3. Do not cover the front cover of the sensor with any metal objects, which will affect the radar detection performance.
4. Avoid installing the sensor near fluorescent lamps, HID lamps and other strong electromagnetic interference sources, or turn on the anti-interference mode.
5. The mounting height should be set according to the actual scenario, and the corresponding height preset should be selected to ensure the best detection effect.

Packaging & Service

Packaging Details

• Standard packaging: RVP42-7M radar sensor main unit, mounting bracket, complete screw accessories, 7m pre-connected cable, user manual.
• Customized packaging: Support OEM/ODM customized packaging with brand logo and product label according to customer requirements.

Technical & After-sales Service

• 2-year standard warranty, 3-year extended warranty optional.
• Complete technical documentation, including user manual, CAD drawings, debugging guide.
• Multi-level technical support: 48-hour email response, 24-hour technical hotline, remote debugging guidance.
• Support customized firmware development and function customization according to customer's special application scenarios.
