RVP42-7M Industrial Radar Sensor Forklift Direction Recognition for Warehouse Loading Dock Door

Place of Origin China
Brand Name JUTAI
Certification FDA, E-MARK, CE, ISO, FCC, RoHS, DOT, ASTM, AS/NZS, CCC, GS
Model Number RVP42-7M
Minimum Order Quantity 1
Price Negotiation
Packaging Details Cartoon
Delivery Time 5-8 days
Payment Terms T/T, L/C, D/A, D/P, Western Union, Paypal, , MoneyGram, Alipay
Supply Ability 1000 pieces per month
Product Details
Sensing Tech 24.125GHz Planar Doppler Radar Forklift Recognition 95% High Precision
Power Spec 12-36V DC Industrial Power Housing Protection IP65 Anti-Vibration & Anti-Dust
Temp Range -30℃ ~ +60℃ Direction Detection Forward/Backward/Bidirectional
Max Detect Speed 25km/h For Forklift Output Mode Relay Dry Contact
Sensitivity 5-Level Adjustable EMI Suppression Motor/Inverter Interference Filter
Highlight

industrial radar sensor forklift

,

warehouse loading dock sensor

,

industrial door motion detector

Leave a Message
Product Description

RVP42-7M Industrial Radar Sensor Forklift Direction Recognition for Warehouse Loading Dock Door

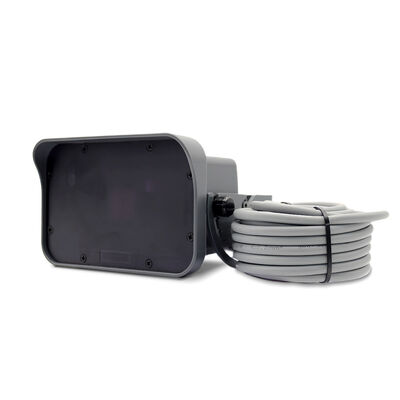

RVP42-7M Industrial Radar Sensor Forklift Direction Recognition for Warehouse Loading Dock Door 0

JUTAI RVP42-7M 24GHz Industrial Doppler Radar Motion Sensor

Precision Vehicle & Pedestrian Detection for Industrial Doors, Gates & Access Control Systems

Product Overview

Engineered for demanding industrial environments, the JUTAI RVP42-7M leverages 24.125GHz Doppler radar with advanced digital signal processing to deliver accurate detection of moving vehicles, pedestrians, and forklifts. Its intelligent filtering algorithms minimize false triggers, while an IP65-rated enclosure and wide temperature tolerance (-30℃ to +60℃) ensure reliability in outdoor, cold storage, and factory settings. Flexible configuration options make it ideal for automating doors, gates, and access points in logistics, manufacturing, and security applications.

Core Competitive Advantages

  • Intelligent Target Discrimination: Achieves 95% accuracy in distinguishing vehicles and pedestrians using a planar Doppler radar module, supporting forward/backward/bidirectional movement detection and rejecting static interference.

  • Ultra-Low False Alarms: Features 4-level lateral motion filtering (blocks sideways-moving targets) and 2-level electromagnetic interference suppression (counteracts fluorescent lights, motors, inverters), keeping false triggers under 1%.

  • Rugged Industrial Design: IP65-sealed housing withstands dust, water, and extreme temperatures (-30℃ to +60℃) with 0–95% non-condensing humidity tolerance—perfect for harsh environments.

  • Adaptable Configuration: 5 sensitivity levels, 0.2–5s relay hold times, 7 mounting height presets, and multiple detection modes enable tailored setups for diverse scenarios.

  • Rapid & Stable Operation: Triggers in <50ms, offers NO/NC relay outputs, and uses 12–36V DC power (<100mA current) for long-term, energy-efficient performance.

Detailed Technical Specifications

Parameter

Specification

Radar Technology 24.125GHz Doppler Radar with Planar Module
Transmit Power <20 dBm
Power Supply 12–36V DC
Operating Current <100mA
Operating Temperature -30℃ to +60℃
Operating Humidity 0%–95% RH (non-condensing)
Mounting Height 2m–7m
Maximum Detection Speed 25 km/h (vehicles)
Response Time <50ms
Relay Output 1 channel, NO/NC configurable
Relay Capacity Max 125V AC 1A / 60V DC 1A
Cable Length 7m (pre-connected)
Protection Rating IP65
Housing Material Gray anodized aluminum + polycarbonate
Dimensions 164mm × 111mm × 94.5mm
Weight 630g
Sensitivity Adjustment 5 levels (lowest to highest)
Relay Hold Time 0.2s / 0.5s / 1.0s / 2.0s / 5.0s / Continuous / Off
Lateral Motion Filter 4 levels (Off/Low/Medium/High)
Anti-Interference Mode 2 levels (Closed/Open for EM interference)
Certifications CE, RoHS, FCC, ISO compliant

Key Functional Highlights

  1. Multi-Mode Detection & Direction Recognition: Supports 9 modes (e.g., vehicle/pedestrian forward/backward/bidirectional) to tailor triggering for specific targets and workflows.

  2. Adjustable Lateral Filtering: Blocks sideways-moving pedestrians/vehicles (critical for roadside gates or factory entrances) to reduce false alarms.

  3. Flexible Relay Control: Customize hold times (0.2–5s) or enable continuous/off output; choose NO/NC contacts to integrate with any door/gate controller.

  4. Robust Interference Resistance: Activate anti-interference mode to counteract EM noise from motors, wireless systems, or lighting—ensuring stability in noisy industrial spaces.

  5. Easy Installation & Maintenance: Includes a mounting bracket, 7m cable, and LED status indicator; supports factory reset for quick on-site debugging.

Performance vs. Traditional Sensors

Metric

JUTAI RVP42-7M Radar

Traditional PIR Sensor

Ultrasonic Sensor

Detection Accuracy 95% (vehicle/pedestrian) 60–70% (heat-based) 75–85% (distance-based)
False Trigger Rate <1% 5–15% 3–8%
Response Speed <50ms 200–500ms 100–300ms
Environmental Tolerance IP65; -30℃ to +60℃ IP54; 0℃ to 50℃ IP55; -10℃ to 55℃
Installation Flexibility 2–7m height; 0–90° angle Fixed height limits Limited height range
Service Life 10 years 2–3 years (annual recalibration) 1–2 years (quarterly cleaning)

Typical Applications

  • Industrial Doors: Automate rolling/sliding/fast doors in factories to detect forklifts and workers.

  • Cold Storage: Reliable operation at -30℃ to prevent cold air loss in freezer doors.

  • Warehouse Docks: High-speed forklift detection and direction recognition for efficient loading/unloading.

  • Parking Systems: Manage barriers/gates with vehicle/pedestrian counting and access control.

  • Garage Doors: Enable auto-opening and anti-pinch protection for residential/commercial garages.

  • Access Control: Integrate with community/office/factory gates for automated entry management.

Installation Guidelines

  • Mount on a flat, stable surface (avoid vibration).

  • Keep the detection area clear of swaying objects (banners, plants).

  • Do not block the sensor’s front cover with metal (impairs radar performance).

  • Avoid strong EM sources (fluorescent lights) or enable anti-interference mode.

  • Select the correct mounting height preset (2–7m) for optimal detection.

Packaging & Support

  • Standard Package: Sensor unit, mounting bracket, screws, 7m pre-wired cable, user manual.

  • Customization: OEM/ODM packaging with branded logos/labels available.

  • Warranty & Service: 2-year standard warranty (3-year extension optional); 48-hour email/24-hour hotline support; remote debugging; custom firmware development for unique needs.

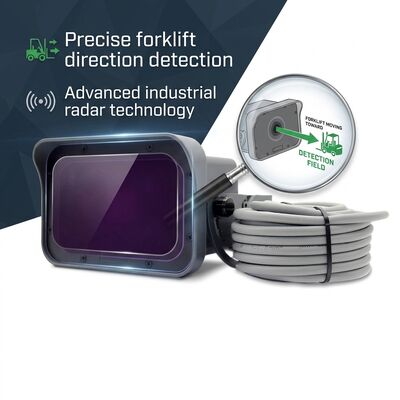

RVP42-7M Industrial Radar Sensor Forklift Direction Recognition for Warehouse Loading Dock Door 1
