RVP42-7M Vehicle Detection Radar Sensor for Smart Parking Lot Barrier Gate Access Control
| Place of Origin | China |
|---|---|
| Brand Name | JUTAI |
| Certification | FDA, E-MARK, CE, ISO, FCC, RoHS, DOT, ASTM, AS/NZS, CCC, GS |
| Model Number | RVP42-7M |
| Minimum Order Quantity | 1 |
| Price | Negotiation |
| Packaging Details | Cartoon |
| Delivery Time | 5-8 days |
| Payment Terms | T/T,L/C,D/A,D/P,Western Union,Paypal,,Alipay |
| Supply Ability | 1000 pieces per month |
Product Details
| Radar Principle | 24.125GHz Planar Doppler Radar | Vehicle Recognition | 95% High Accuracy |
|---|---|---|---|
| Power Supply | 12-36V DC, <100mA | Protection Grade | IP65 Dustproof & Waterproof |
| Working Temp | -30℃ ~ +60℃ | Mount Height | 2m ~ 7m Adjustable |
| Response Time | <50ms Ultra-Fast | Output Mode | Relay Dry Contact |
| Anti-Interference | Multi-Stage Adjustable Filter | Parking Function | In/Out Direction Recognition |
| Highlight | vehicle detection radar sensor,smart parking barrier gate radar,industrial door motion sensor |
||
Product Description

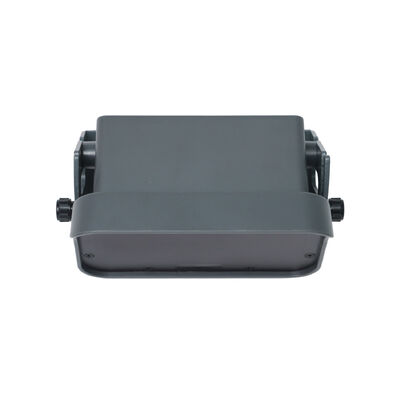

RVP42-7M Vehicle Detection Radar Sensor for Smart Parking Lot Barrier Gate Access Control
Product Overview
The RVP42-7M is a high-performance 24GHz Doppler radar sensor designed specifically for smart parking barrier gate systems. Using advanced planar radar technology and digital signal processing, it delivers precise vehicle detection, direction recognition, and reliable access control even in challenging outdoor environments.
Key Benefits
- Accurate Vehicle Detection - Identifies cars, vans, and light trucks approaching or leaving the gate with 95% accuracy
- Direction Awareness - Distinguishes between inbound and outbound vehicles to trigger barrier arms intelligently
- Reduced False Triggers - Filters out pedestrians, bicycles, and lateral movements to avoid unnecessary gate activation
- Fast & Consistent Performance - Response time under 50ms guarantees seamless entry/exit without delays
- Harsh Environment Ready - Operates reliably from -30°C to +60°C with IP65 protection against rain, dust, and vibration
- Easy Integration - Configurable relay output, adjustable sensitivity, and flexible mounting heights simplify installation
Technical Specifications
| Parameter | Specification |
|---|---|
| Frequency Band | 24.125 GHz Doppler Radar |
| Radar Type | Planar Module |
| Transmit Power | <20 dBm |
| Power Supply | 12-36V DC |
| Operating Current | <100 mA |
| Operating Temperature | -30°C to +60°C |
| Mounting Height | 2 m - 7 m |
| Response Time | <50 ms |
| Protection Rating | IP65 |
| Certifications | CE, RoHS, FCC, ISO Compliant |
Superior Performance Comparison
| Feature | RVP42-7M Radar Sensor | Loop Detector | PIR Sensor |
|---|---|---|---|
| Detection Accuracy | 95% Best | ~85% | 60-70% |
| False Alarm Rate | <1% Best | 3-10% | 5-15% |
| Response Speed | <50 ms Best | ~100 ms | 200-500 ms |
| Weather Resistance | IP65; -30°C to +60°C Best | Requires pavement work | Limited outdoor durability |
Functional Highlights
Vehicle-Only Activation
Prevents pedestrian or stray object triggering, ensuring gates open only for authorized vehicles.
Bidirectional Traffic Handling
Recognizes vehicle direction for optimized automation and queue management.
Electromagnetic Noise Immunity
Ideal for parking lots with LED lighting, EV chargers, or nearby motors.
Typical Applications
- Automated entry/exit barrier gates
- Vehicle counting & access verification
- Toll booth lanes & VIP lane management
- Gated residential communities & commercial complexes
- Airport/train station parking zones
Package Contents & Support
- RVP42-7M sensor unit
- Mounting bracket and hardware
- 7-meter pre-wired cable
- User manual
- Optional: OEM/ODM branding and custom firmware
- Warranty: 2 years standard (3 years extendable)
- Support: 24-hour hotline, 48-hour email response, remote configuration assistance
