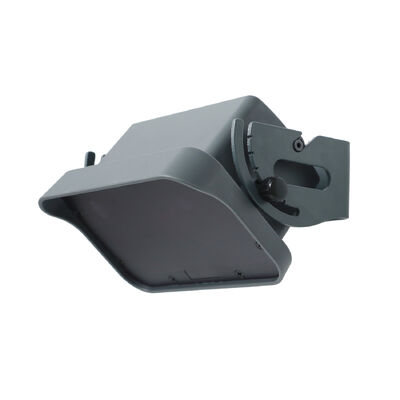

RVP42-7M Anti-Interference Industrial Radar Sensor for Factory Workshop Rolling Shutter Door

Place of Origin	China
Brand Name	JUTAI
Certification	FDA, E-MARK, CE, ISO, FCC, RoHS, DOT, ASTM, AS/NZS, CCC, GS
Model Number	RVP42-7M
Minimum Order Quantity	1
Price	Negotiation
Packaging Details	Cartoon
Delivery Time	5-8 days
Payment Terms	T/T,L/C,D/A,D/P,Western Union,Paypal,,Alipay
Supply Ability	1000 pieces per month

Product Details

Radar Principle	24.125GHz Planar Doppler Radar	Vehicle Recognition	95% High Accuracy
Power Supply	12-36V DC, <100mA	Protection Grade	IP65 Dustproof & Waterproof
Working Temp	-30℃ ~ +60℃	Mount Height	2m ~ 7m Adjustable
Response Time	<50ms Ultra-Fast	Output Mode	Relay Dry Contact
Anti-Interference	Multi-Stage Adjustable Filter	Factory Function	Rolling Door Opening
Highlight	industrial radar sensor anti-interference , rolling shutter door motion sensor , factory workshop radar sensor

Leave a Message

Product Description

RVP42-7M Anti-Interference Industrial Radar Sensor for Factory Workshop Rolling Shutter Door

Product Overview

The RVP42-7M is a rugged, high-precision 24GHz Doppler radar motion sensor built to meet the challenges of busy factory workshop environments. Featuring advanced planar radar technology and digital signal processing, it provides dependable detection of moving vehicles, forklifts, and personnel in front of rolling shutter doors. With strong anti-interference capabilities, intelligent target discrimination, and extreme environmental resistance, the RVP42-7M ensures that heavy-duty industrial doors operate safely, efficiently, and with minimal downtime.

Key Benefits for Factory Rolling Shutter Doors

Reliable Vehicle & Personnel Detection - Accurately identifies forklifts, pallet trucks, and workers approaching the door.
Direction-Sensitive Logic - Differentiates between entry and exit movements, reducing unnecessary activations.
High Immunity to Interference - Suppresses electromagnetic noise from motors, inverters, welding equipment, and LED lighting.
Extreme Environment Durability - IP65-rated housing, -30°C to +60°C operating range, and humidity resistance for cold storage and hot workshops alike.
Ultra-Fast Response - Less than 50ms reaction time for immediate door actuation, improving workflow efficiency.
Minimal False Alarms - Advanced lateral motion filtering blocks side-to-side movement, ensuring only relevant traffic triggers the door.

Technical Specifications

Parameter	Specification
Frequency Band	24.125 GHz Doppler Radar
Radar Type	Planar Module
Transmit Power	<20 dBm
Power Supply	12-36V DC
Operating Current	<100 mA
Operating Temperature	-30°C to +60°C
Operating Humidity	0%-95% RH (non-condensing)
Mounting Height	2 m - 7 m
Maximum Detection Speed	25 km/h (vehicles)
Response Time	<50 ms
Relay Output	1 channel, NO/NC configurable
Relay Load Capacity	Max 125V AC 1A / 60V DC 1A
Cable Length	7 m (pre-wired)
Protection Rating	IP65
Housing Material	Anodized Aluminum + Polycarbonate
Dimensions	164 mm × 111 mm × 94.5 mm
Weight	630 g
Sensitivity Levels	5 steps (Low -> High)
Relay Hold Time Options	0.2 s / 0.5 s / 1.0 s / 2.0 s / 5.0 s / Continuous / Off
Lateral Motion Filter	4 levels (Off / Low / Medium / High)
Anti-EMI Mode	2 levels (Off / On)
Certifications	CE, RoHS, FCC, ISO Compliant

Functional Highlights for Rolling Shutter Door Automation

Smart Activation Logic - Supports nine detection modes including vehicle/pedestrian forward, reverse, and bidirectional movement.
Anti-Interference Technology - Two-stage EMI suppression neutralizes electrical noise from common factory equipment.
Lateral Movement Blocking - Prevents false triggers caused by people or objects moving across the door's side.
Configurable Relay Timings - Match the hold time to the door's opening/closing cycle for safe, smooth operation.
Easy Setup - Comes with a mounting bracket, 7m pre-wired cable, and LED status indicator; factory reset function simplifies troubleshooting.

Performance Comparison with Traditional Solutions

Feature	RVP42-7M Radar Sensor	Inductive Loop Detector	PIR Motion Sensor
Detection Accuracy	95%	~85% (metal-dependent)	~60-70% (heat-based)
False Alarm Rate	<1%	3-10%	5-15%
Response Speed	<50 ms	~100 ms	200-500 ms
Environmental Tolerance	IP65; -30°C to +60°C	Needs pavement cutting	Limited outdoors
Electromagnetic Immunity	Strong (motor/LED-proof)	Vulnerable to EMI	Vulnerable to heat changes
Installation Complexity	Surface mount, flexible	Complex trenching	Moderate
Maintenance Requirement	Very low	Coil inspection required	Calibration often needed

Ideal Factory Applications

Rolling shutter doors in production lines
Cold storage warehouse entrances/exits
Loading docks with forklift traffic
Assembly plant access points
Tool rooms and parts storage areas

Installation Recommendations

Mount on a stable surface at 2-7 meters height, aimed at the expected vehicle/personnel path.
Avoid installing near large metal obstructions that could reflect or block radar waves.
Enable anti-EMI mode if working near motors, variable frequency drives, or high-frequency lighting.
Use lateral motion filter to ignore cross-traffic or overhead crane movement.
Select the correct sensitivity level to match site conditions.
