RVP42-7BW Cold Chain Logistics Radar Sensor Anti-Fog for Freezer Warehouse Automatic Door
| Place of Origin | China |
|---|---|
| Brand Name | JUTAI |
| Certification | FDA, E-MARK, CE, ISO, FCC, RoHS, DOT, ASTM, AS/NZS, CCC, GS |
| Model Number | RVP42-7M |
| Minimum Order Quantity | 1 |
| Price | Negotiation |
| Packaging Details | Cartoon |
| Delivery Time | 5-8 days |
| Payment Terms | T/T,L/C,D/A,D/P,Western Union,Paypal,MoneyGram,Alipay |
| Supply Ability | 1000 pieces per month |
Product Details
| Radar Principle | 24.125GHz Planar Doppler Radar | Vehicle Recognition | 95% High Accuracy |
|---|---|---|---|
| Power Supply | 12-36V DC, <100mA | Protection Grade | IP65 Dustproof & Waterproof |
| Working Temp | -30℃ ~ +60℃ | Mount Height | 2m ~ 7m Adjustable |
| Response Time | <50ms Ultra-Fast | Output Mode | Relay Dry Contact |
| Anti-Interference | Multi-Stage Adjustable Filter | Factory Function | Low Temp Stabilization |
| Highlight | freezer warehouse radar sensor,cold chain logistics motion sensor,anti-fog industrial door sensor |
||
Product Description

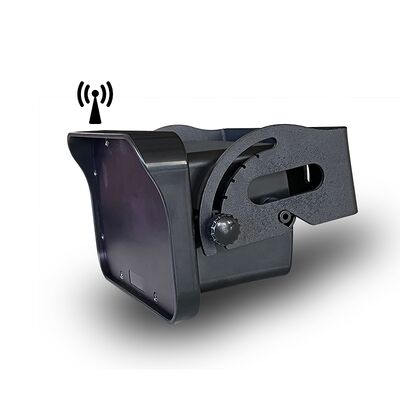

RVP42-7BW Cold Chain Logistics Radar Sensor Anti-Fog for Freezer Warehouse Automatic Door
Product Overview
The RVP42-7BW is a specialized industrial radar motion sensor engineered for cold chain logistics and freezer warehouse environments. Built on 24GHz Doppler radar technology with advanced digital signal processing, it delivers precise detection of vehicles and personnel approaching automatic freezer doors, even in foggy, icy, or condensation-heavy conditions.
Key Benefits for Freezer Warehouse & Cold Chain Applications
- Fog & Condensation Resistant - Maintains consistent detection performance despite moisture buildup on lenses or in high-humidity cold air.
- Sub-Zero Reliability - Operates flawlessly in temperatures as low as -30 °C, ideal for deep-freeze and cold storage zones.
- Accurate Vehicle & Pedestrian Detection - Identifies forklifts, pallet trucks, and workers with 95% accuracy, reducing energy waste from unnecessary door cycles.
- Fast & Responsive - Triggers in under 50ms to keep cold air loss to a minimum during door opening.
- High Interference Immunity - Suppresses electromagnetic noise from refrigeration units, motors, and LED lighting.
- Energy Saving - Reduces warm air ingress, helping maintain internal temperatures and lowering HVAC load.
Technical Specifications
| Parameter | Specification |
|---|---|
| Frequency Band | 24.125 GHz Doppler Radar |
| Radar Type | Planar Module |
| Transmit Power | <20 dBm |
| Power Supply | 12-36V DC |
| Operating Current | <100 mA |
| Operating Temperature | -30°C to +60°C |
| Operating Humidity | 0%-95% RH (non-condensing) |
| Mounting Height | 2 m - 7 m |
| Maximum Detection Speed | 25 km/h (vehicles) |
| Response Time | <50 ms |
| Relay Output | 1 channel, NO/NC configurable |
| Relay Load Capacity | Max 125V AC 1A / 60V DC 1A |
| Cable Length | 7 m (pre-wired) |
| Protection Rating | IP65 |
| Housing Material | Anodized Aluminum + Polycarbonate |
| Dimensions | 164 mm × 111 mm × 94.5 mm |
| Weight | 630 g |
| Sensitivity Levels | 5 steps (Low -> High) |
| Relay Hold Time Options | 0.2 s / 0.5 s / 1.0 s / 2.0 s / 5.0 s / Continuous / Off |
| Lateral Motion Filter | 4 levels (Off / Low / Medium / High) |
| Anti-EMI Mode | 2 levels (Off / On) |
| Special Feature | Anti-fog optical design for cold/humid environments |
| Certifications | CE, RoHS, FCC, ISO Compliant |
Functional Highlights for Freezer Automatic Doors
- Moisture-Tolerant Detection - Anti-fog lens treatment prevents condensation from impairing radar performance.
- Direction Recognition - Differentiates between inbound and outbound traffic to optimize door cycles.
- Energy Efficiency - Minimizes warm air infiltration, protecting stored goods and reducing compressor workload.
- Reliable in Extreme Cold - Consistent operation in deep-freeze zones down to -30°C without performance drift.
- Flexible Configuration - Adjust sensitivity, relay hold time, and lateral motion filtering to suit high-traffic or low-traffic freezer aisles.
Comparison with Traditional Freezer Door Sensors
| Feature | RVP42-7BW Radar Sensor | Infrared Beam Sensor | Ultrasonic Sensor |
|---|---|---|---|
| Fog/Condensation Resistance | Excellent (anti-fog design) | Poor (optics fog up) | Moderate (signal scatter) |
| Cold Temperature Operation | -30°C to +60°C | Limited below 0°C | Limited below -10°C |
| Detection Accuracy | 95% | ~80% (alignment sensitive) | ~75-85% |
| False Alarm Rate | <1% | 5-10% | 3-8% |
| Response Speed | <50 ms | ~100 ms | 100-300 ms |
| Maintenance Need | Very low | Frequent realignment | Periodic cleaning |
Ideal Applications in Cold Chain Logistics
- Automatic doors for freezer warehouses
- Cold storage distribution centers
- Refrigerated loading docks
- Pharmaceutical cold rooms
- Food processing plants with chilled zones

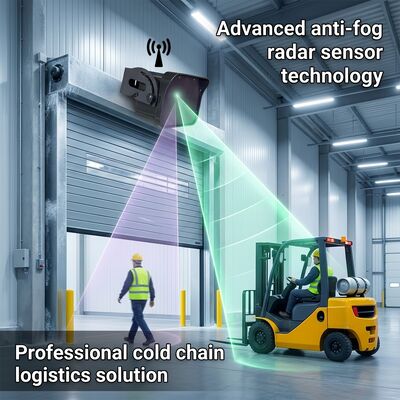

Installation Recommendations
- Mount at 2-7 meters height, directed toward the doorway traffic path.
- Ensure the sensor's front lens remains unobstructed and free of ice build-up.
- Enable anti-EMI mode to counter interference from refrigeration compressors and lighting.
- Use lateral motion filter to ignore side traffic or equipment movement.
- Select sensitivity level based on door usage frequency and ambient moisture.
Package Contents & Support
- RVP42-7BW sensor unit
- Mounting bracket and hardware
- 7-meter pre-wired cable
- User manual
- Optional: OEM/ODM branding and custom firmware
- Warranty: 2 years standard (extendable to 3 years)
- Support: 24-hour hotline, 48-hour email response, remote configuration assistance
