110-240V Single Channel Boom Barrier Loop Detector 40000V Lightning Protection
| Place of Origin | China |
|---|---|
| Brand Name | JUTAI |
| Certification | CE |
| Model Number | LD-100 |
| Document | LD100.102.pdf |
| Minimum Order Quantity | 1 |
| Price | Negotiable |
| Packaging Details | Carton Parcking(13.5*8.5*5cm)/0.3kg/unit |
| Delivery Time | 3-5 working days after receipt the payment |
| Payment Terms | T/T,L/C,D/A,D/P,Western Union,Paypal,MoneyGram,Alipay |
| Supply Ability | 10000pcs/month |
Product Details
| Power Supplu | 110-240v | Self-turning Range | 20-2000μH |
|---|---|---|---|
| Sensitivity | 6 Way Selectable/Highest0.010%DL/L/ Lowest 2.56%DL/L | Frequency | Four Step Switch Selectable20-80KHz |
| Operation Tempts | -40℃ To +70℃ / (-111°F To +158°F) | Fault Output | Blinks Slowly: May Indicate A Short Circuit Or Insufficient Number Of Turns Blinks Faster: May Indicate An Open Loop Or Excessive Number Of Turns |
| Response Times | Turn-on 10-90MS / Turn-off 10-90MS | Relay | Presence Relay / Fault Relay |
| Highlight | single channel loop detector,boom barrier loop detector,loop detector with lightning protection |
||
Product Description

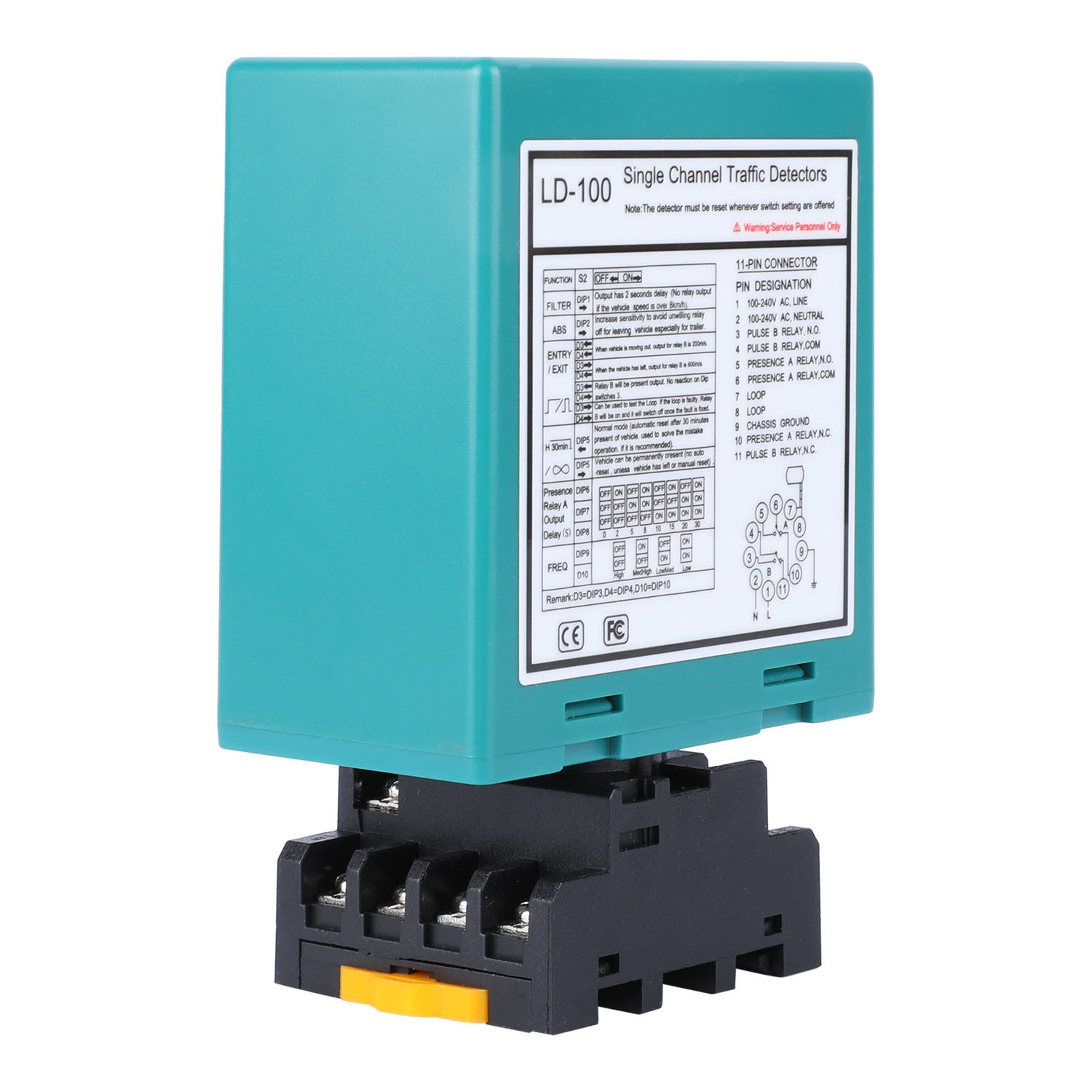

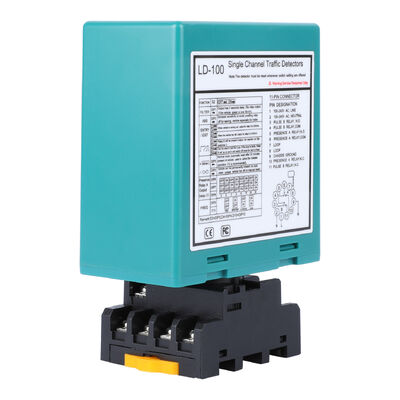

110-240V Single Channel Boom Barrier Loop Detector 40000V Lightning Protection
Product Overview
Single Channel Loop Sensor 110-240V For Parking Barrier Gate Safety
Product Description
The Parking Barrier Gate Loop Detector (LD-100) is a specialized sensor designed for parking barrier gates, enabling efficient identification and detection of all vehicle types including oversized vehicles, trucks, and motorcycles. This ensures reliable automatic gate opening and closing operations.
Key Advantages
- Wide Sensing Range and High Sensitivity: Sensing range from 15 to 2000μH with high sensitivity for accurate detection of various vehicles
- Automatic Reset Function: Automatically resets in case of malfunction, eliminating manual intervention and enhancing system reliability
- Multiple Detection Level Selection: 16 selectable levels from 0.008% DL/L to 2.50% DL/L for flexible configuration
- 40000V Lightning Protection: Robust protection against lightning strike damage
- Wide Operating Environment Range: Operates from -40°C to +70°C (-111°F to +158°F) for harsh weather conditions
Technical Specifications
| Specification | Value |
|---|---|
| Self-tuning Range | 20-2000μH |
| Sensitivity | 16-way selectable / Highest 0.010% DL/L / Lowest 2.56% DL/L |
| Frequency | Four-step switch selectable 20-80KHz |
| Power Requirements | 110-240VAC (48 to 62Hz) |
| Operation Temperature | -40℃ to +70℃ / (-111°F to +158°F) |
| Fault Output | Blinks slowly: may indicate short circuit or insufficient turns Blinks faster: may indicate open loop or excessive turns |
| Response Times | Turn-on 10-90MS / Turn-off 10-90MS |
| Visual Indications | Power LED - Red Channel LED - Green |
| Reset | Reset by push button on front enclosure |
| Relay Output | Presence relay / Fault relay |
| Humidity | Up to 95% relative humidity without condensation |
DIP Switch Configuration
DIP 1 & 2 - Special Functions
DIP 3 & 4 - Relay B Output
DIP 5 - Automatic Reset
DIP 6, 7 & 8 - Relay A Delay
DIP 9 & 10 - Frequency Selection (40K to 100KHz)
Loop Installation
Competitive Comparison
Mass Production & Quality Assurance
Our production line ensures efficient mass production, rigorous quality control, and thorough pre-shipment testing to deliver loop detector products of the highest quality standards.
