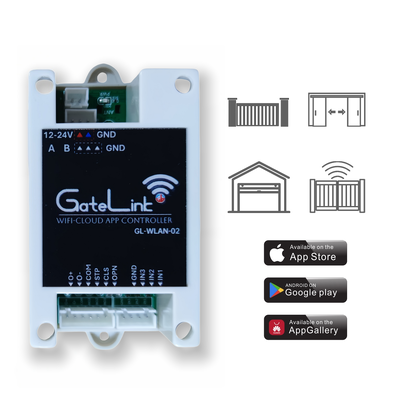

GateLink GL-WLAN-02 WiFi Bluetooth Cloud APP Smart Gate Controller with 4 Relay RS485 for Home Gates Parking Barriers and Industrial Doors

GateLink GL-WLAN-02 WiFi Cloud APP Smart Gate Controller

GateLink GL-WLAN-02 is a multifunctional WiFi and Bluetooth smart gate controller designed for residential driveway gates, community entrances, parking barrier systems, automatic doors and industrial door control.

The main product is the GL-WLAN-02 controller. Surveillance cameras are optional integrated devices rather than the core product. When a compatible camera is connected to the GateLink system, users can view the monitoring screen inside the same mobile APP before remotely opening, closing or stopping the gate.

This controller-centered design combines remote access control, equipment status monitoring, RS485 device integration, operation records, user management and cloud-based value-added services in one platform.

Core Controller Functions

The GL-WLAN-02 provides four relay control outputs:

• Three relay outputs with a shared common terminal
• One independent relay output
• DC load capacity of 30V / 1A
• AC load capacity of 125V / 1A

The relay outputs can be connected to gate operators, barrier controllers, industrial door control boards, auxiliary relays, lights or other compatible equipment.

Typical control commands include:

• Open
• Close
• Stop
• Hold open
• Pause
• Customized relay action

The actual action depends on the wiring definition and the connected equipment’s control logic.

Mobile APP Remote Control

Users can remotely operate connected gates and doors through the GateLink APP.

The APP supports:

• Device overview
• Project and group management
• Remote open, close and stop
• One-touch control
• Current door status display
• Door operation history
• Opening and closing cycle count
• Bluetooth nearby control
• Multi-user device sharing
• Language switching
• Optional camera monitoring
• Optional two-way audio
• Advertisement display interface

The PDF’s APP interface shows device management, real-time monitoring, status display, operation records, cycle counting and Bluetooth control.

Optional Camera Integration

GateLink can integrate compatible monitoring cameras into the APP.

The camera is not the main product and does not replace the GL-WLAN-02 controller. The controller performs the access-control and relay-control functions, while the optional camera provides visual monitoring.

After integration, users can:

• View the gate or doorway in real time
• Confirm whether a visitor or vehicle is present
• Check the site before opening the gate
• Monitor gate operation
• Use supported two-way audio functions
• Receive supported security alerts

This is especially useful for residential driveway gates, villas, community entrances, delivery access and unattended parking entrances. The product document describes real-time HD monitoring and two-way audio as integrated GateLink functions.

RS485 Equipment Integration

The built-in RS485 port is one of the main advantages of GL-WLAN-02.

Through customized protocol integration, the controller can connect to compatible third-party equipment, including:

• Gate control boards
• Parking controllers
• Industrial door controllers
• LED displays
• Sensors
• Motor controllers
• Access-control devices
• Equipment with RS485 communication

Depending on the integrated protocol, the GateLink APP or cloud platform can:

• Read equipment operating status
• Read alarms and fault information
• Obtain device parameters
• Modify supported parameters
• Trigger equipment actions
• Display customized device data
• Record communication and operating events

JUTAI can provide an integration protocol or cooperate with customers on protocol development. The specific readable and writable parameters depend on the protocol of the connected device.

Input Status Monitoring

The GL-WLAN-02 provides three digital inputs with a shared common terminal.

A typical gate installation can use these inputs for:

• Open-limit switch
• Close-limit switch
• Alarm input
• Push-button notification
• Safety sensor signal
• Customized equipment status

The APP can display the relevant door or equipment state after the input logic has been configured.

The controller wiring page identifies open-limit, close-limit and alarm inputs as typical connections.

Cloud Platform Management

The GateLink cloud platform is designed for both individual users and professional operators.

The backend supports:

• User management
• Device management
• Community management
• Security management
• Account management
• Hierarchical organizations
• Device authorization
• Project and group management
• Operation log queries
• Remote device management
• Advertiser management
• Advertisement management
• Advertisement analytics

This allows property companies, distributors, system integrators and access-control operators to manage multiple organizations and devices from one platform.

Advertisement and Value-Added Services

The GateLink APP and cloud platform support configurable advertisement functions.

Advertisement content can include:

• Image advertisements
• Video advertisements
• Company introductions
• Product promotions
• Property notices
• Local service promotions
• Distributor advertisements

A customized URL can be assigned to the advertisement. When the APP user clicks the advertisement, the system can open the specified webpage.

The backend can also manage advertisers, delivery organizations and advertisement data. The document’s advertisement interface shows advertisement file management, jump-link configuration and exposure/click analysis.
